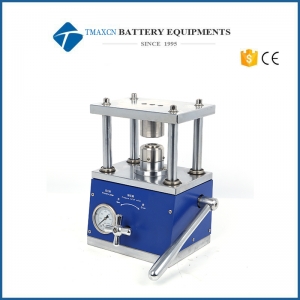

Li ion Button battery coin cell sealing/crimping machine
Model Number:
TMAX-110BDimension(L*W*H):
300L x 190 W x 310H mmNet Weight:
35 KgCompliance:
CE certificateWarranty:
One Year limited warranty with lifetime supportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 days
Li ion Button battery coin cell sealing/crimping machine
TMAX-110B is a newly designed coin-cell crimper with lighter weight and a smaller footprint. The crimper is suitable for sealing various types of coin cells such as CR2032,CR2025,and CR2016 without changing the die. It can also crimp CR2325, CR2450, AG3, AG5 and other special size cases with optional die sets. In addition, customers can easily replace the original die for disassembling purpose. TMAX-110B is an ideal tool for operations in a glove box.
Description
|
Standard Crimping Die |
One set of crimping dies for all CR20XX coin cell, such as CR2045, CR2032, CR2025 and CR2016 ,etc. |
|
Structure |
Heavy Duty Steel plate |
|
Pressure |
Max. 8 metric Tone hydraulic with automatic return |
|
Net Weight |
25Kg |
|
Machine overall Dimension |
300L x 190 W x 310H mm |
|
Shipping Weight |
35 Kg |
