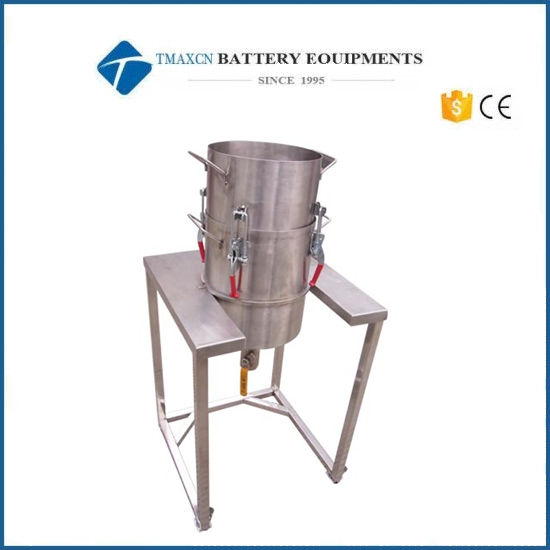

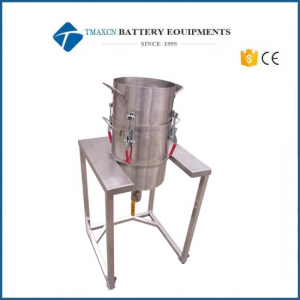

Lithuim Battery Slurry Filter Machine For Lab Research
Model Number:
TMAX-GL-2-5LCompliance:
CE certificateWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 days
Lithuim Battery Slurry Filter Machine For Lab Research
Introduction
This filter device is mainly used in a special filter designed for laboratory samples to filter out various hard particles with a particle size of not less than 124 microns in the slurry. The whole machine has beautiful design and is flexible and convenient to use.
Main features
*High filtration accuracy, up to 124 microns, equipped with two kinds of particle filters for filtering positive and negative poles.
*All SUS304 stainless steel design, good anti-corrosion performance, easy to clean and clean.
*The filter screen with a larger filter area makes the pressure loss very low and the equipment is durable.
*Small size and easy operation.
* Beautiful appearance, easy maintenance, molding and other advantages.
Technical parameter
|
Filter dimensions(mm) |
500*500*510 |
|
Weight(kg) |
10 |
|
Power adapter |
AC220V±10% 50Hz |
|
Absolute vacuum |
65KPa |
|
Air pump flow |
5L/min |
|
With filter(optional) |
100 mesh filter |
|
Optional filter |
Below 1000 mesh |
|
Capacity(L) |
5 |
