Lithuim Battery Tabs Shaping Machine for Pouch Cell Making
Model Number:
TMAX-JRZX100Compliance:
CE certificateWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 days

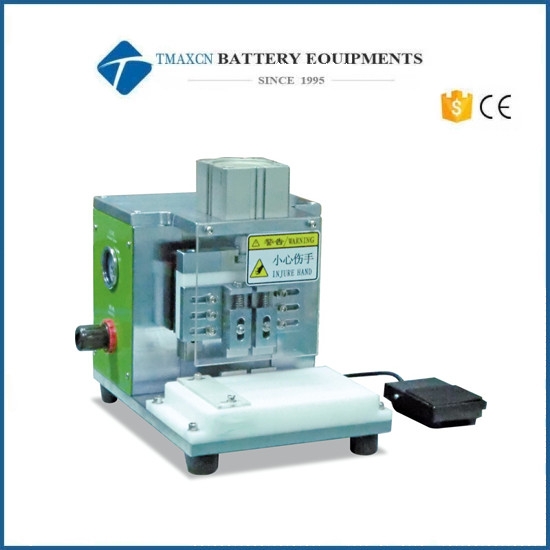

Lithuim Battery Tabs Shaping Machine for Pouch Cell Making
Introduction
It is mainly used for flat pressing and shaping after cutting the tabs of laminated cells.
Main features
*Shangyin linear slide rail group is used for guiding, and the guiding accuracy is extremely high to ensure that the upper and lower die are flat;
*Simple operation, high efficiency, stable temperature and good consistency.
*Using fixtures to assist the feeding, the cylinder drives the mold to achieve shaping.
*Set a product positioning tray to facilitate the positioning and placement of batteries;
*Beautiful, reliable, convenient and fast;
*The speed of the upper and lower platens and the shaping time can be adjusted and set.
Instruction
Put the product into the jig to be shaped, press the upper pressure plate (heating) of the foot switch and move it down to flatten the shape. After the pressure is maintained, the foot switch is released, the upper pressure plate is withdrawn, and the cell lugs are flattened.
Technical parameter
|
Specificaiton |
Within 100*100 batteries |
|
Mold hardness |
≥HRC58 |
|
Mold life |
3 million times / grinding |
|
Upper and lower pressure plate material |
Imported S136 material, no deformation, no rust |
|
Shaping temperature |
RT~250℃ |
|
The distance between the upper and lower pressing plates |
>50mm |
|
Speed |
Air pressure 600 times/hour |
|
Air compressed air source |
0.5Mpa～0.7Mpa |
|
Dimensions |
L230*W200*H250mm |
|
Weight |
27kg |
