Laboratory Small Manual Roller Press Machine for Battery Electrode Calendering
Model Number:
TMAX-MR100Warranty:
One year warrantyPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 days

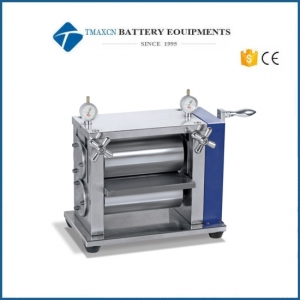

Laboratory Small Manual Roller Press Machine for Battery Electrode Calendering
This machine is mainly suitable for manual rolling of battery materials in laboratory. It is especially suitable for thinning and increasing density of clean energy material lithium battery electrode. The machine adopts gear transmission to realize the roll pressing. The rolling thickness is adjustable and easy to use.
Features
*The hardness of the roll is high, and the surface is plated with hard chromium, the hardness can reach HRC62, and the roll is antirust.
*The inclined block is used to adjust the pressing clearance, which has good self trivial property and high adjustment precision.
*High rolling precision, roller cylindricity ≤± 2um
*Vertical design, convenient for strip material feeding and rolling.
*Gear meshing rotation is adopted to realize roller pressing.
*The pressing thickness and speed are adjustable, and the shape is exquisite and beautiful.
*It has the advantages of small volume, simple operation, flexible and fast use.
Specifications
|
Roller size |
Φ96mm×W100mm |
Φ96mm×W150mm |
Φ96mm×W200mm |
|
Machine dimensions |
L278×W213×H350mm |
L350×W213×H350mm |
L450×W240×H350mm |
|
Machine weight |
45kg |
55kg |
65kg |
|
Cylindricity of roller |
≤±2um |
||
|
Roller hardness |
HRC62 |
||
|
Roller finish |
＞0.4 |
||
|
Rolling thickness |
0～2mm gap adjustable |
||
|
Rolling width |
0～100mm |
0～150mm |
0～200mm |
|
Roll placement |
Vertical placement |
||
|
Operation mode |
Manual |
||
|
Feed/rolling speed |
0 ~ 40mm/s, depending on the hand running speed |
||
|
Standard configuration |
A set of hexagon wrench, 2 dial indicators and 1 feeler gauge |
||
|
Warranty |
One year warranty with life time technical support |
||
