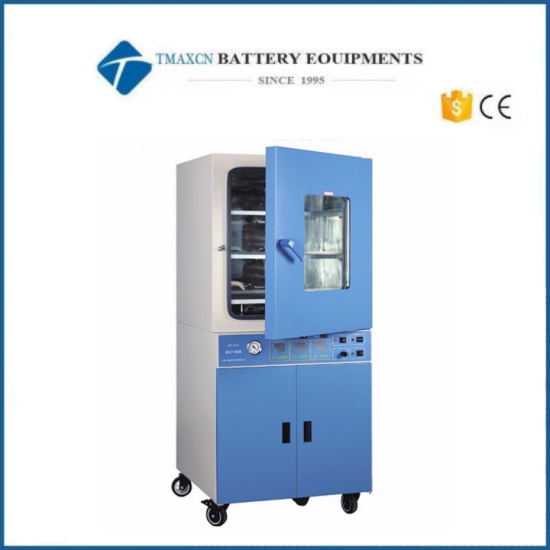

Middle Size Vacuum Oven with Max Working Temperature 250°C And 215 Liter Capacity

TMAX-DZF-6210 is a middle size vacuum oven with max working temperature 250°C and 215 Liter capacity. The oven adopts heat radiant wall system providing optimal uniformity and conserves chamber space for drying, curing, vacuum embedding, and plating applications.

SPECIFICATIONS:

Model	6052	6210	6090	6250	6050		6051	6021	6020	6030A Special for chemistriy	6030B/6050B Special for chemistriy
Electrical Requirements		220V 50Hz		380V 50Hz	220V 50Hz
Input Power		2100W	1400W	3000W	1400W		1400W	500W	500W	500W	400W/700W
Temperature Range	RT	RT+10~250℃					RT+10~200℃		RT+10~250℃		RT+10~65℃
Temperature Control/Stability		0.1℃/±0.5℃
Vacuum Degree	133Pa
Ambient Temperature	+5~40℃
Interior Dimension (mm)W*D*H	415*370*345	560*640*600	450*450*450	700*600*600		415*370*345		300*300*275		320*320*300	320*320*300 415*370*345
Overall Dimension	720*525*535	720*820*1750	615*590*1470	1050*760*910		720*525*535		580*450*450		630*510*460	610*510*490 710*560*550
shelves	2(pcs)	3(pcs)	2(pcs)	3(pcs)		2(pcs)		1(pcs)		1(pcs)	1/2 (pcs)
Chamber Material	Stainless						Rolled sheet		Stainless

Vacuum Pump  (optional)	Ultimate Vacuum Level: 1000 millitorrs.
Temperature Controller	1. Single point temperature setting 2. Built-in over-temperature protection 3. PID precise temperature control 4. Temperature control accuracy: +/-0.1°C 5. Temperature uniformity: +/-2.5°C @ 100°C, 25" Hg at center 6"x6" area only
Fittings	This oven comes with a KF-25 vacuum connector which allows you set up a quick connection to the vacuum pump.
Compliance	CE Certified
Warranty	One years limited warranty with lifetime technical support
Attention	1. It's normal that the SS chamber wall will slightly deform and loose its shine during high-temperature operation. However, this would not affect any functionality.  2. Please do not place the sample on the chamber bottom directly.
