NMP Dual-Filtration System For Battery Waste Gas Treatment
Model Number:
MSK-NMP-1Compliance:
CE certificateWarranty:
Two Years limited warranty with lifetime supportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 days

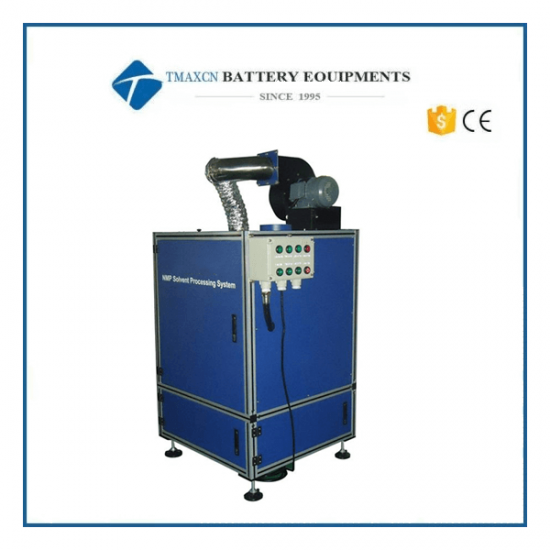

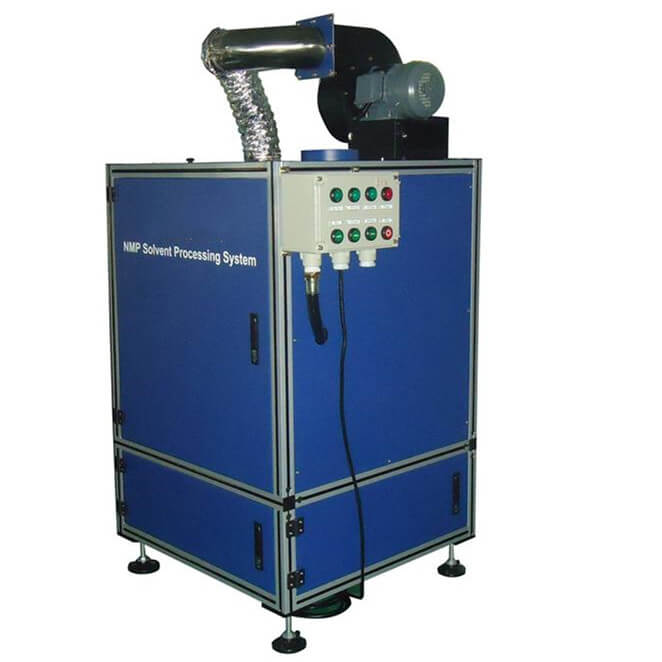

NMP Dual-Filtration System For Battery Waste Gas Treatment
Features
MSK-NMP-1 is a CE Certified Dual-Filtration System for NMP(N-Methyl-2-pyrrolidone) Vapor of Li-ion Battery coating. It can be used to filter the vapor formed from the process of coating and drying with the dual-filtration level in Li-ion battery R&D. Water-filter design provides dedusting, NMP filtering, and vapor purification methods.
Specifications
Structure |
SS 304 |
|
Dual-filtration level NMP filtering |
Working Voltage |
Three-phase AC380V 50Hz |
Power |
1.5 KW |
Working Temperature |
0-40℃ |
Filling Gas Temperature |
<=150℃ |
Capacity |
600mm³/h |
Recycle Rate |
>=80% |
Recycle Object |
Vapor |
Inlet Flow Rate |
600mm³/h |
Product Dimensions |
900mm L x 700mm W x 1500mm H |
Compliance |
CE Certified |
|
1. One year limited warranty with lifetime support 2. Rusting and damage due to improper storage condition or maintenance is not covered by warranty |
Net Weight |
500 kg |
