One-Zone 1200°C 50mm OD Split Tube Furnaces with Quartz Tube

  • Model Number:

    TMAX-50mmfurnace
  • Dimension(L*W*H):

    50mm OD x 700mm length (Size can be customized)
  • Net Weight:

    25KG
  • Compliance:

    CE certificate
  • Warranty:

    Two years limited warranty with lifetime technical support
  • Payment:

    T/T, Credit Card, Paypal, LC, Western Union
  • Delivery Time:

    3 days
contact now
DESCRIPTION

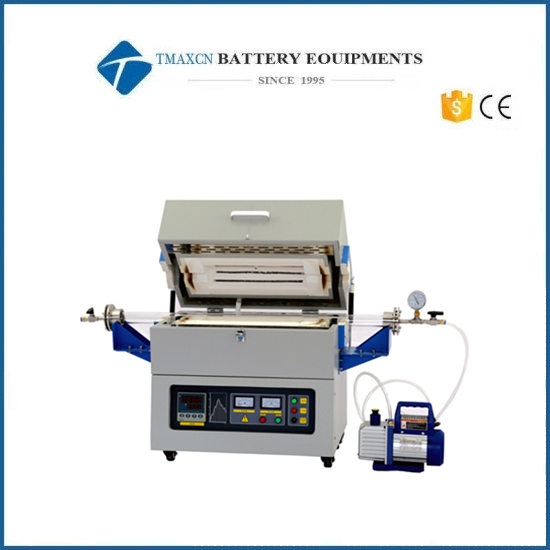

One-Zone 1200°C 50mm OD Split Tube Furnaces with Quartz Tube


TMAX-50mmfurnace 50x600mm (ODxlength) portable split tube furnace feature spiral wire coils embedded in Mitsubishi (Japan) alumina fiber insulation. A double walled steel internal housing helps minimize heat loss to exterior surface. Furnace operation is controlled by a 30-segment digital controller. All our furnaces are CE compliant.

Split Tube Furnaces


Features

·         Compact, portable and lightweight design.

·         Split furnace chamber for fast and easy tube access.

·         Standard package includes set of stainless steel vacuum sealing flanges with valves and pressure meter.

·         Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot.

·         Multiple atmosphere processes in a single cycle are possible

·         Long life type K thermocouple.

Specifications

 Tube material

 Quartz

 Tube size

 50 mm OD x 600 mm length

 Maximum working temperature

 1200°C

 Constant working temperature

 1100°C

 Minimum working temperature

 Ambient

 Constant working temperature under vacuum

 1000°C

 Rated vacuum pressure

 0.001 Pa / 0.0075 millitorr / 0.00001 mbar

 Rated positive pressure

 0.02 MPa / 150 torr / 3 psi

 Heating element type

 Resistance coil wire

 Thermo couple type

 K

 Refractory lining

 Mitsubishi (Japan) 1500 grade fiber alumina

 Temperature controller

 Single PID, 30 segments

 Maximum heating & cooling rate

 < 30°C / min

 Heating zone length

 8"

 Constant temperature zone length

 3"

 Temperature controller precision

 +/- 1°C

 Vacuum sealing flange kit

 Stainless steel vacuum sealing flanges with one vacuum gauge,
two valves and four thermal ceramic blocks.

 Electrical requirements

 220V/110VAC,  50/60 Hz single phase,

 Gas inlet/outlet

 1/4" hose barb with 1/4" BSPT (British Standard Pipe Thread)

 Unit dimensions

 27 x 13 x 16" (WxDxH)

 Unit weight

 25KG

 CE compliance

 Yes


Standard package

Part description

   Quantity

 Part image

 TMAX-50mmfurnace split tube furnaces

 1 set


 Quartz tube 50mm OD x 600mm L

 2 pcs


 Stainless steel vacuum sealing flanges w/ pressure meter

 1 set

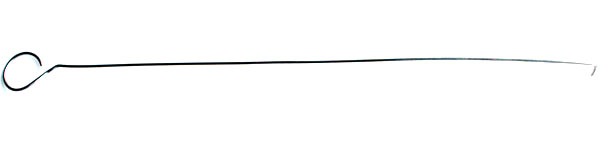

 Stainless steel hook

 1 pc

 Alumina ceramic thermal block

4 pcs

 Spare fuse

2 pcs


 Thermal gloves

 1 pair


 Furnace operation manual

 1 pc
