One-Zone 1200°C Vertical Tube Furnace w/ Kanthal (Sweden) Elements

  • Model Number:

    TMAX-Vertical Tube F
  • Dimension(L*W*H):

    50mm OD x 1m length (Size can be customized)
  • Compliance:

    CE certificate
  • Warranty:

    Two years limited warranty with lifetime technical support
  • Delivery Time:

    3 days
contact now
DESCRIPTION

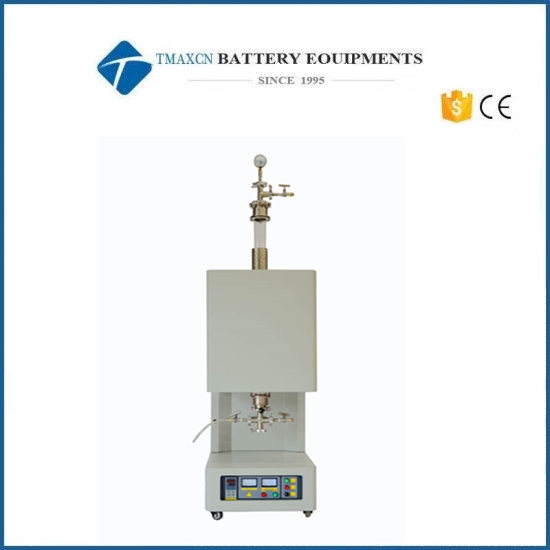

One-Zone 1200°C  Vertical Tube Furnace w/ Kanthal (Sweden) Elements


TMAX-Vertical Furnace series vertical split tube furnaces feature the famous Kanthal (Sweden) spiral wire coils embedded in Mitsubishi(Japan) alumina fiber insulation. A double walled steel internal housing helps minimize heat loss to exterior surface.

Furnace operation is controlled by Shimaden (Japan) 40-segment digital controller with built-in RS485 digital communications port and USB adaptor, allowing the user to connect to a PC for remote control and monitoring of the furnace. You can also save or export test results. All our furnaces have CE certificate.


Features

·         Compact, portable and lightweight design.

·         Split furnace chamber for fast and easy tube access.

·         Standard package includes set of stainless steel vacuum sealing flanges with valves and pressure meter.

·         Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot.

·         Multiple atmosphere processes in a single cycle are possible (ex: binder burn out in air and parts sintering under rough vacuum or inert gas environment.)

·         Built-in ammeter and dual voltmeters for easy monitoring and troubleshooting.

·         Built-in computer interface.

·         Long life type K thermocouple.



General specifications

 Electrical requirements

 208-240VAC, 50/60 Hz, single phase (220V/110V for 50mm OD model)

 Tube material

 Quartz

 Maximum/constant working temperature

 1200°C / 1100°C (1000°C constant temperature under vacuum)

 Rated vacuum pressure

 0.001 Pa / 0.0075 millitorr / 0.0000 mbar

 Rated positive pressure

 0.02 MPa / 150 torr / 3 psi

 Heating element type

 Kanthal (Sweden) resistance coil wire (except for 50mm OD model)

 Thermo couple type

 K

 Refractory lining

 Mitsubishi (Japan) high quality 1500 grade fiber alumina

 Temperature controller

 Shimaden fp93 (Japan) with 4 programs and
 40 segments (ie. 4 x 10 segments or 2 x 20 segments)

 Maximum heating & cooling rate

 < 30°C / min

 Heating vs constant zone length

 15.5" (8" for 50mm OD model) / 8" (4" for 50mm OD model)

 Temperature controller precision

 +/- 1°C

 Vacuum sealing flange kit

 Stainless steel vacuum sealing flanges with one vacuum gauge,
two valves and four thermal ceramic blocks.

 CE compliance

 Yes


Size comparison

 Tube size (ODxlength)

 50mm x 700mm

 60mm x 1m

 80mm x 1m

 100mm x 1m

 Maximum output

 1.5 kW (110V)

 2.5 kW

 3.5 kW

 3.5 kW

 Unit dimensions (WxDxH)

 16x15x30"

 21x18x43"

 21x18x43"

 22x20x45"

 Shipping dimensions (LxWxH)

 45x20x35"

 50x25x40"

 50x25x40"

 52x25x40"

 Shipping weight (Lb)

 260

 410

 440

 480





Part description





Quantity





Part image



 TMAX vertical split tube furnace

1 pc


 Quartz tube

2 pcs

 Stainless steel vacuum sealing flanges w/ pressure meter

1 set

 Alumina ceramic thermal block

1 pair

 Thermal gloves

1 pair

 Spare fuse

1 pc

 L6-30P 250 volt twist-lock plug

Pre-installed

 USB/RS485 computer interface kit

1 set

 Furnace operation manual

1 pc
