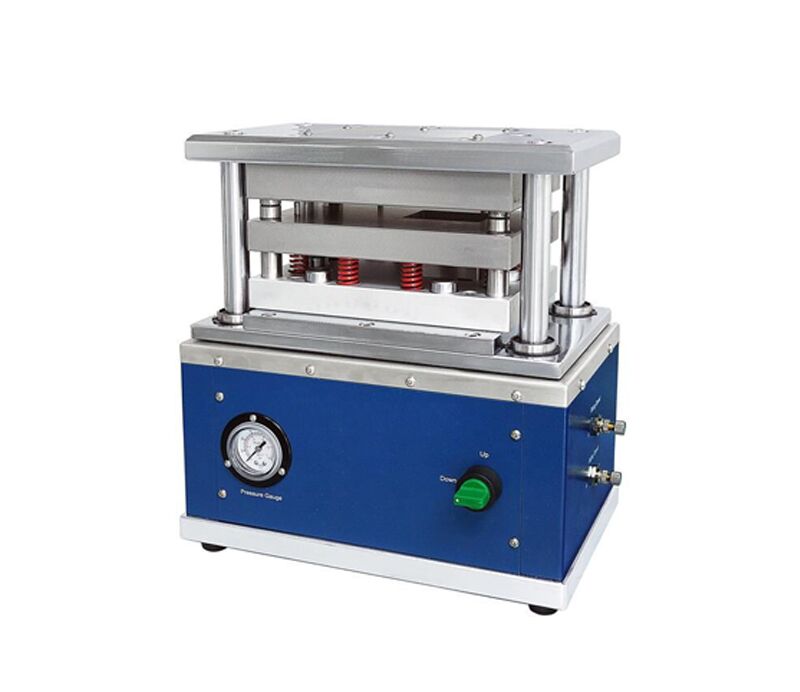

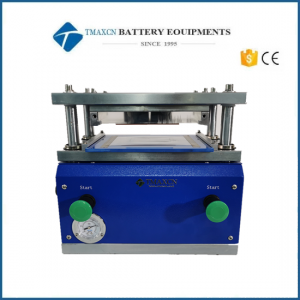

Pneumatic Electrode Die Cutter Cutting Machine For Battery Case Notching

Die Set Dimensions



• Two standard electrodes (Cathode & Anode) cutting dies are included for immediate use.
• Cathode Die: 56mm (L) x 43mm (W). With 10mm (L) x 10mm (W) protrude current collector.
• Anode Die: 58mm (L) x 45mm (W). With 10mm (L) x 10mm (W) protrude current collector
• Customized dies with Max. area 140mm L x 80mm W,

Plate Pad

•   Use the plate pad to hold the electrode and minimize permanent markings on the base

Cutting Depth

    Max. 0.5mm (tested with aluminum laminated film)

Cutting Accuracy

±0.1mm

Cutting Pressure Force

Max. 1T (recommended pressure force for cutting battery electrodes is 0.5T)

Gas Pressure

• 0.5~1.0Mpa (0.7Mpa is recommended)
• For the use of inside the glove box, please use compressed inert gas such as Ar.
• For the use of outside the glove box, you may use the air compressor, 60 psi recommended.
• Compressor is not included, please click the image on the left to order

Feeding

Manually

Stroke Length

12mm

Cutting Die Life Span

~30000 strokes

Compliance

• CE Certified

Warranty

 Two years limited warranty with lifetime support

Product Dimensions

   380mm(L) x 260mm(W) x 250mm(H)

Net Weight

 35kg

Shipping Weight & Dimensions

 200 lbs; 23" x 19" x 19"
