Introduction

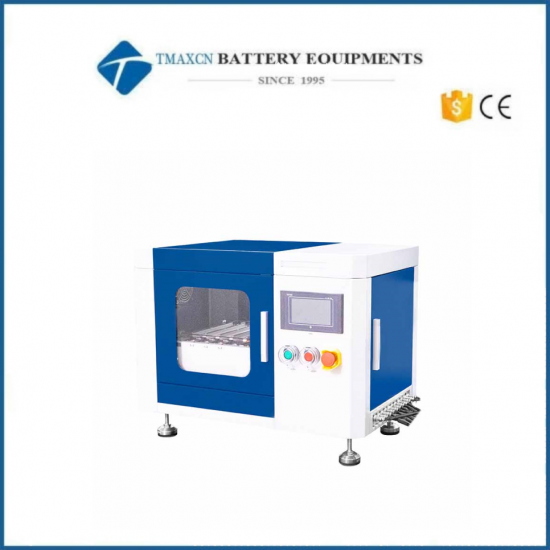

This device is a hot press forming machine for 8-channel single ended ear batteries. The device adopts a horizontal structure, with a total of 4 layers of pressure plates, each layer can be used for 2 batteries, a total of 8 channels; Mainly used for the formation of soft pack lithium-ion batteries under hot pressing, it can replace the baking and shaping process of existing battery formation processes, shorten formation time, shorten battery production cycle, reduce labor, and make the surface of the battery smoother and more beautiful after air extraction and sealing, while completing battery formation and hot pressing shaping.

Function

Horizontal dual station design, multi-channel stacking, flexible to use;

It can achieve multi stage heating pressure conversion, and each stage temperature and pressure can be independently set;

High precision chip heater with good temperature uniformity, long service life, and adjustable temperature;

Driven by a cylinder, the pressure can be precisely adjusted, and the pressure plate adopts special treatment, with high accuracy and small thermal deformation;

Special positive and negative pole ear wiring fixture design, good and stable contact, standard 8-channel battery analyzer, optional brand;

PLC control, HMI operation, with multiple protection functions;

This device can be used on a table and occupies a small space.

Technical parameters

Power supply	Single phase AC220V(±10%), frequency 50Hz (can be customized as 60Hz), power: about 1KW
Usage environment	It is recommended to have an ambient temperature of 25 ± 15 ℃, a relative humidity of 30%~75%, and no strong electromagnetic field interference or corrosive gas erosion
Air source	0.25-0.8MPa
Tab method	Pouch cell tab, single side tab
Channel quantity	2*4, total 8 channel
Pressure direction	horizontal and lateral pressure
Heating rate	RT~80 ℃ for 30 minutes
Battery size	L: 10-120mm W: 30-80mm Can be customized
Single layer quantity	2 pcs
Formation device	5V6A battery tester, can be customized
Charging and discharging indicators	Constant current charging, constant voltage charging, constant current discharge
Dimensions	About L750*W500*J600 mm
Weight	About 75kg
