Pouch Cell Die Cutter for Battery Electrode Sheet

  • Model Number:

    TMAX-MQ300
  • Type:

    Electrode Die Cutter
  • Dimension(L*W*H):

    The mold can be customized
  • Net Weight:

    140kg
  • Compliance:

    CE certificate
  • Warranty:

    Two years limited warranty with lifetime support
  • Delivery Time:

    3 days
contact now
DESCRIPTION

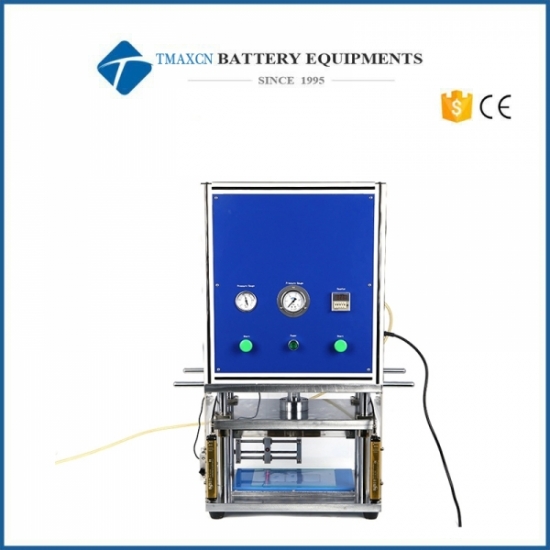

Pouch Cell Die Cutter for Battery Electrode Sheet


TMAX-MQ300 semi-automatic electrode die cutter is mainly used for pouch cell electrode sheet cut for stacking pouch cell battery. It is a necessary tool in the production line of pouch cell to produce specific shapes of cathodes and anodes with current collector tabs.

This Semi Automatic Die Cutter machine adopts Safety Curtain built in the front of the machine and double start button ensures operation safety when electrode sheets are fed from the front.

High speed, high accuracy,long lifetime to make cut electrode without burr, to get a good consistency.


Specifications

Model

Battery Electrode Die Cutter Machine  TMAX-MQ300

Work voltage

AC110V/220V, 50/60HZ

Power

100W

Warranty

One year limited warranty with lifetime support

Cutting Die

Customized according to customer's request

Safety Protection

Built in Safety Curtain to protect against hand injuires during electrode feeding

Double start press button

Cutting Accuracy

±0.1mm

Air Cylinder

5 tons Max. pressure

Tensile Cylinder

0.15 tons pressure

Cutting stroke

250mm

Feeding

Manually

 Yield

800 - 2000 pieces of electrodes per hour

Air Pressure

0.5-0.8Mpa

Dimension

(L*W*H)

580*455* 900mm

Net Weight

120kg (265 lbs)

Shipping Dimensions

47*75*109cm

Recommendation

For the pouch cell assembly, we also recommend you the following items:

       forming machine      hot sealer        vacuum sealer

    Forming machine             Hot sealer with tab            Vacuuming sealer

  ultrasonic welder        stacking machine      aluminum laminated film

Ultrasonic tab welder        Stacking machine         Aluminum Laminated Film

pouch cell machine

pouch cell die cutter

pouch cell die cutter

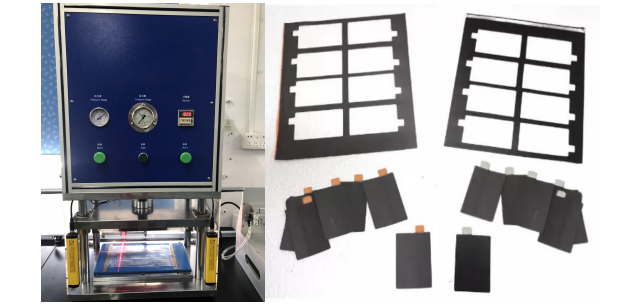

Semi-automatic Pouch Cell Battery Electrode Die Cutting Machine




 battery equipment


1.  We supply machines with battery technology support.

2.  We supply full set of lithium battery equipment for lab research, pilot scale research and production line.



1 Standard exported package : Internal anticollision protection, external export wooden box package
2 Shipping by express, by air, by sea according to customer's requirements to suggest the most suitable shipping mode
3 Responsible for the damage during shipping process, change the damage part for free
4 Supply with suitable voltage input and power plug according to customer's country requirements.
5 Supply with CO, ECO, FORM A, FORM E and any other original certificate for import custom clearance and tax relief.
