Prismatic Battery Cell 10 Channels Automatic Sorting Machine
Model Number:
TMAX-FN-10Compliance:
CE CertifiedWarranty:
Two Year Limited Warranty With Lifetime SupportPlace of Origin:
China:
XiamenPayment:
T/T, Credit Card, Paypal, LC, Western Union

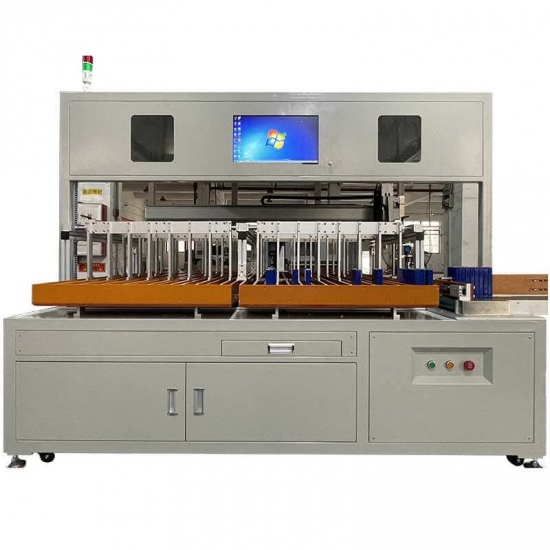

Prismatic Battery Cell 10 Channels Automatic Sorting Machine
Ⅰ Functional Overview
competitiveness.
|
Item |
Specification |
|
Applicable battery type |
Prismatic cell |
|
Compatible size range |
Length 100–300 mm, Width 20–85 mm, Height 100–300 mm |
|
Sorting grades |
9 + NG grade |
|
Control system |
PLC control (brand can be specified) |
|
Loading & testing |
Manual loading + testing integrated (optional internal resistance tester: Hioki / HK or other specified brands) |
|
Scanning function |
Supports QR code and barcode scanning |
|
Automation level |
Fully automated sorting, minimal manual intervention |
|
MES interface |
Real-time data recording (QR code, test data) + SPC report generation |
|
Sorting speed |
Up to 1000 pcs/hour (≥3× manual efficiency) |
Ⅲ Environmental Requirements
|
Item |
Specification |
|
Ambient temperature |
–30°C to 50°C |
|
Humidity |
≤90% |
|
Air source pressure |
0.5～0.6 MPa |
|
Power supply |
220V, 50/60Hz |
|
Floor load capacity |
≤200 kg/m² |
|
Grounding type |
Direct grounding |
|
Site requirements |
No pollution or strong electromagnetic interference |
|
Installation environment |
Flat, vibration-free surface |
|
Noise level |
≤80 dB |
Ⅳ Equipment Specifications
|
Item |
Specification |
|
Machine dimensions |
L2210 × W1624× H1596 mm (subject to actual machine) |
|
Machine weight |
Approx. 458kg |
|
Standard color |
White (customizable) |
|
Total power |
≤1.5 kW |
Ⅴ Machine Appearance & Size
Ⅵ Machine Structure Description
The equipment is composed of a mechanical platform, electrical components, stepper motor, sensors, PLC controller, and industrial PC.

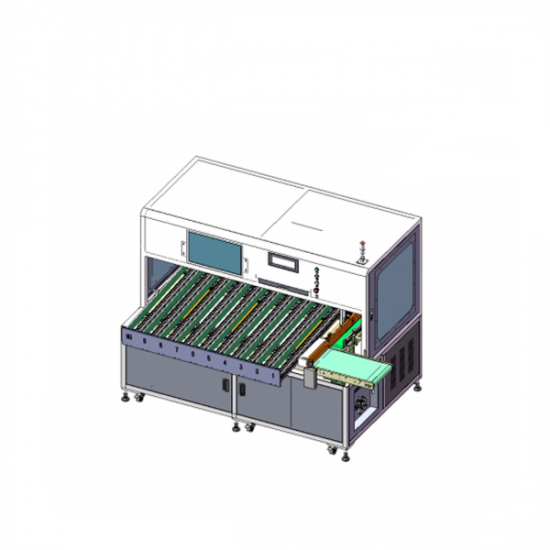

Machine Structure Overview (Diagram subject to actual machine)
Machine Configuration
|
Configuration Name |
Component |
Brand |
Remarks |
|
Main Machine |
Cabinet |
TMAX |
Sheet metal base + profile frame |
|
Main worktable |
TMAX |
|
|
|
Electrical System |
Barcode scanner |
Honeywell |
|
|
Industrial PC |
Yuefei |
N5095 |
|
|
Servo motor |
Xinjie |
|
|
|
PLC |
Xinjie |
|
|
|
Display monitor |
Philips / HKC |
|
|
|
Internal resistance tester |
HOPU |
|
|
|
Standard components |
Xingchen, Deke |
|
