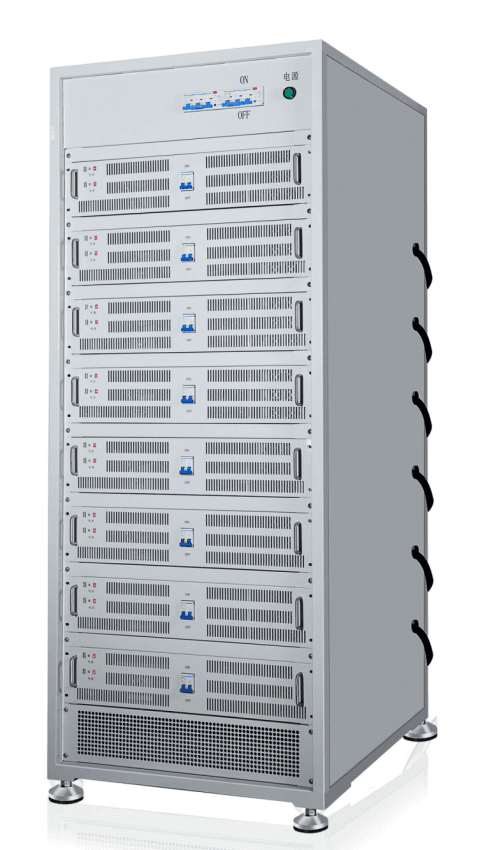

100V 120A Lithium Battery Pack Charge & Discharge Aging Tester

Product Description

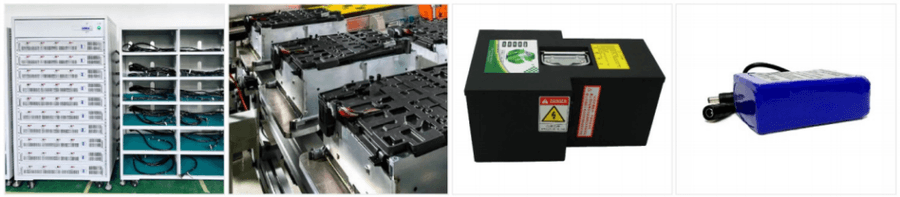

Ⅰ、Application:

Production inspection of battery modules in battery production enterprises;

High current charging and discharging detection of EV/HEV power battery system;

Perform battery simulation testing on actual road conditions;

Daily maintenance of battery modules in battery factories and charging stations;

Research institutions conduct high current charging and discharging detection, as well as battery performance testing on battery modules.

II.Product Features:

Using a 32-bit ARM main control chip	Significantly improves execution speed and accurately records changes in battery voltage status
Scan the code to search for data	Accurate retrieval of battery aging parameters on the computer through barcode scanning
Protection and abnormal warning	Equipped with anti reverse connection function, voltage upper and lower limit protection setting protection, testing abnormal alarm prompt
CCCV charging	During the charging process, there is no gap transition and no voltage or current surge. It can effectively prevent protection actions and secondary protection actions caused by islanding effects on PCBs, or overshoot caused by thermal concentration of electrode ears due to peak currents. Stable current and voltage sampling, high accuracy, and good long-term stability
Voltage clamp	Voltage clamp is used to set the voltage to prevent damage to the battery or battery pack protection board during battery protection operations or equipment abnormalities during charging
Customizable	① Battery pack temperature sampling function; ② Single cell voltage sampling function of battery pack; ③ Frequency output function; ④ Switch action function; ⑤ Connect MES system functions

III. Technical Parameters:

SN	Item	Specification
1	Product model	TMAX-TG8002-100V120A
2	Chassis size	H：1938mm、L：950mm、W：985mm
3	Equipment weight	339KG
4	Operating ambient temperature	1-50℃
5	Operating environment humidity	0-90%RH
6	Input power supply	AC380V±15%/50Hz+2Hz
7	Equipment operating temperature	0-35℃
8	Work noise	65-75dB
9	Maximum output power	96KW
10	Voltage range	0-100V
11	Charging and discharging	0-100V,Continuously adjustable
12	Charging and discharging output current range	200mA-120A,Continuously adjustable
13	Voltage and current resolution	0.01mV、0.01mA
14	Accuracy	±0.1%FS
