Product Description

30V 20A Charge / 20A Discharge 40-Channel Battery Pack Aging Test Cabinet with Energy-Saving Function

I.Equipment Principle and Composition

1.1 Host Computer: The host computer software serves as the primary human-machine interaction tool, enabling functions such as device startup, shutdown, pause, and resumption. The host computer is responsible for collecting and processing battery aging data, and outputs the test results required by the client.

1.2 Central Control Unit (CCU): The CCU serves as the central control management software for the device, performing calculations on battery parameters such as capacity and charge level.

1.3 Bidirectional ACDC+LLC Isolated DCDC: During charging, this module draws power from the grid, which is then regulated by the bidirectional DCDC to charge the battery. During discharging, it feeds back the energy transmitted by the bidirectional DCDC to the grid.

1.4 Bidirectional DCDC (Buck/Boost): This non-isolated DCDC module provides all required current and voltage outputs for battery charging and discharging, including constant current charging, constant voltage charging, and constant current discharging

II.Scope of Application

The system is designed for integrated cycle testing of lithium battery packs, including charging, discharging, functional testing, and data monitoring, and is applied to electric tools, solar energy storage, toy cars, scooters, electric bicycles, electric motorcycles, and home energy storage systems.

III. Equipment Environmental Requirements and Technical Parameters

3.1 Full-unit power supply: AC voltage 380V ±10%, frequency 50Hz ±10%.

3.2 Ambient temperature: -10 to 45°C;

3.3 The environment is free from strong vibrations, corrosive gases, and flammable or explosive gases.

IV.Feature Introduction

4.1 Charging and Discharging Functions: Features constant current and constant voltage charging, constant current discharging, and battery capacity recording during charging and discharging processes.

4.2 Voltage protection test: Verify the battery's charge and discharge protection functions by performing charge and discharge cycles.

4.3 Safety Protection: Features include anti-reverse connection protection, power failure data protection, support for continuous testing, voltage upper/lower limit setting protection, and safe discharge current protection.

4.4 The system employs high-frequency isolation technology to maintain complete separation from the power grid, ensuring safe and stable operation.

4.5 The bidirectional AC/DC module employs space vector modulation technology with digital control, achieving high voltage utilization efficiency and reduced current harmonic diversion.

4.6 Enables internal conversion of dual-channel charge-discharge energy;

4.7 The DCDC module employs advanced PID control technology and multiple protection mechanisms to ensure stable operation of the equipment.

4.8 Energy Recycling (DC Busbar Efficiency ≥93%): This system enables energy recycling, allowing battery discharge energy to be fed back into the grid.

4.9 Seamless switching between constant current and constant voltage modes without any voltage/current surges, effectively preventing battery tab debinding caused by heat accumulation from peak currents.

4.10 The voltage and current are sampled using a four-wire system, which ensures high sampling accuracy and excellent long-term stability.

4.11 Supports barcode input for batteries, with traceable historical test data.

V.Equipment Parameter Description

Product model TMAX-BCDS30V20A
AC input interface 1. Input three-phase five-wire AC380V

2. Input current: 43A; recommended circuit breaker: 63A-3P or higher

3. Frequency: 50Hz

4. THD≦3%

5. Power factor> 0.99 (rated power)

6. Charging efficiency: 88% (whole device)

7. The bus feedback efficiency is 93%.

System function 1. Battery Cycle Life Testing

2. Battery Capacity Test

3. Battery Charge/Discharge Characteristic Test

4. Battery Charge Retention Capability Test

5. Battery Charge/Discharge Efficiency Test

6. Battery Overcharge/Overdischarge Rate Tolerance Test

Voltage Measuring range 4.5~30V (using 2 or more battery strings)
Accuracy ±0.1% of F.S±0.1% of F.D
Current Charging range 0.1-20A
Discharge range 0.1-20A
Accuracy ±0.1% of F.S±0.1% of F.D
Charge Constant voltage cutoff current Minimum 50mA
Capacity Accuracy ±0.1% of F.S±0.1% of F.D
Power Maximum power per cabinet ≤24KW
Current response time Current hardware response time: ≤20ms
Data recording interval ≥1S
Data export method The data can be exported to Excel or chart files, providing various data analysis formats such as charge-discharge curves, capacity decay rate, cycle life curves, charge-discharge voltage, current, and capacity-time curves, along with data lists.
Data save mode Users can customize names and data save paths. Data is saved as files.
Primary channel mode Charging modes: Constant Current Charging (CC), Constant Voltage Charging (CV), and Constant Current & Voltage Charging (CCCV)
Discharge: Constant Current Discharge (CD), Constant Current and Constant Voltage Discharge (CVD)
Communication mode LAN(TCP/IP)
Test data record Voltage, Current, Time, Capacity, Power
Input protection overvoltage, overcurrent, phase loss, overtemperature, protection alarm, island effect protection;
Output protection No output when overvoltage, overcurrent, short circuit, reverse connection, capacity, temperature, or battery voltage is detected.
Software protection Power-off data protection, call continuation, overvoltage/overdischarge protection, overcurrent/undercurrent protection, capacity protection, overtemperature protection, voltage trend anomaly protection, current trend anomaly protection, current fluctuation anomaly protection, voltage fluctuation anomaly protection, charging voltage rise rate anomaly protection, discharge current decline rate anomaly protection;
Cycle index Up to 10,000 times
Cooling-down method air blast cooling

VI.Product Appearance and Structure

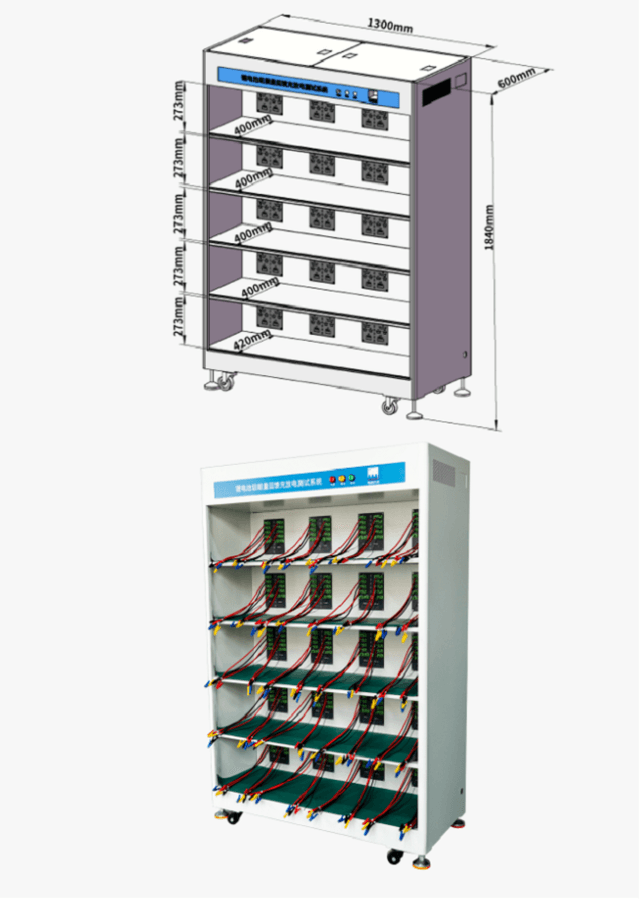

Rack size 1300*600*1840mm(W*D*H )
Number of channels 40 channel
Device accessories Test sheet, online tools, user manual, host software

The image above is for reference only. Please refer to the actual product.

VII. Software and Interface Introduction

7.1 Main Interface

7.2 Plan Setup Interface

7.3 Test Curve Interface

7.4 Detailed Data Interface

VIII. Main Configuration List

No. Name Brand Quantity Unit
1 Main control panel In-house 20 block
2 Host CPU TI( America  ) 20 individual
3 Communication module In-house 1 individual
4 Electric relay Honfa 160 individual
5 Source Lorenz/Photo Power selection individual
6 Leakage circuit breaker Chint 1 individual
7 Cabinet In-house 1 individual
8 Software system In-house 1 cover

IX.Randomized List ofMaterials

No. Accessory name Quantity
1 Testing facility 1 unit
2 Charge and discharge test harness 40 pcs
3 Communication accessories a surname
4 Test software system 1 set
5 User Manual 1 copy
6 Product Qualification Certificate  (including  Calibration Certificate) 1 copy

Note: Customers must provide their own computers for testing software, and technical staff will guide the software installation and provide training.

There are some other aging cabinets for options: 30V 5A 100 channels /20V10A 100 channels/ 30V 10A 100 channels/ 30V 10A 40 channels/ 30V 20A 100 channels/ 100V 10A 50 channels/ 60V 20A 50 channels/ 100V 20A 30 channels/ 60V 30A 30 channels; The above is an aging machine with a battery rack.

60V 50A(100V 30A) 30 channels/ 20 channels/ 10 channels/

100V 50A 18 channels/ 12 channels/ 6 channels/

100V 60A(60V 100A) 18 channels/ 12 channels/ 6 channels/

100V 100A 12 channels/ 6 channels

100V 120A(120V 100A) 12 channels/ 8 channels/ 4 channels/

100V 150A 8 channels/ 4 channels
