Battery Electrode Cutter Slitting Machine for lithium ion battery electrode cutting

Battery Electrode Cutter Slitting Machine for lithium ion battery electrode cutting

Model Number:
TMAX-ASM-500B
Type:
Electrode Slitting Machine
Dimension(L*W*H):
20-500mm
Compliance:
CE certificate
Warranty:
Two Year Limited Warranty With Lifetime Support
Payment:
T/T, Credit Card, Paypal, LC, Western Union
Delivery Time:
3 Days
Email:
[email protected]
WhatsApp:
+8618659217588
WeChat:
18659217588

Product Description

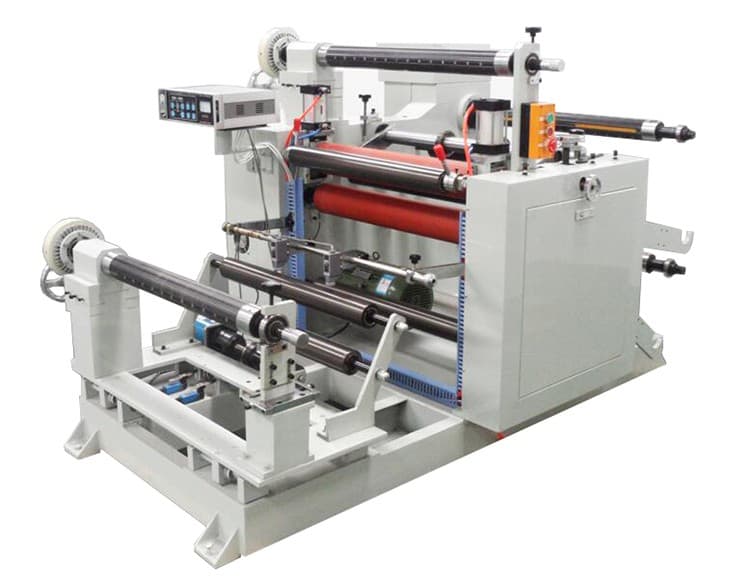

Battery Electrode Cutter Slitting Machine for lithium ion battery electrode cutting



SPECIFICATIONS

Items

Main parametre

The biggest slice width

500mm

The smallest slice width

20mm

Slitting thickness

0.01 ~ 0.2mm

Maximum roll diameter

500mm

The cutting waste edge width

≤5mm

Slitting speed

1 ~ 30m/min

Slitting straightness

<0.1mm/m

Slitting precision

±0.05mm

Rolling precision

±0.15mm

Edge rag

<15um

Size(L*W*H)

2200*1680*1750mm

Weight

2T

Power sources

AC 380V 50HZ, 3KW

Air supply pressure

0.5 ~ 0.7Mpa,100L/min

cylindrical cell slitter

cylindrical cell slitting machine

cylinder cell slitter
electrode slitting machine

slitting machine for cylinder cell

cylindrical cell slitter

battery equipment

HOT TAGS:battery electrode cutterelectrode cutterprismatic cell slitting machine
