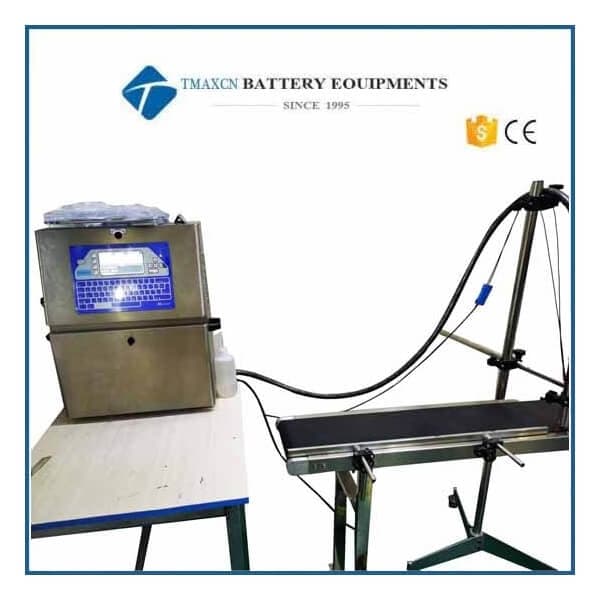

Continuous Small Character Inkjet Printer for Battery Production

Product Description

The excellent design of A410Plus series makes it one of the models with the clearest printing effect in the industry.

Advantages

A410Plus has a very high market share and high cost performance.
Stable and simple viscosity, liquid level detection technology, so that the equipment failure rate is greatly reduced compared with similar models.
The circuit system adopts many latest technologies and the further optimization of the operating system, which improves the stability and reliability of the equipment.
Magnetic control non-contact high-voltage switch design, more safe to use, and completely avoid the unstable factors caused by contact.
Updated nozzle and pipeline system design to ensure good automatic cleaning and solve common nozzle and pipe plugging problems in the industry.

Specification

Instruction	Parameter
Nozzle pore size	70/60/50/40um
Printing capacity	Print height	1.2-15mm
	Print lines	1-5
	Maximum number of printing dots	34
	Non contact printing distance	2-15mm
	Fastest printing speed	320m/min
	input system	Standard American keyboard

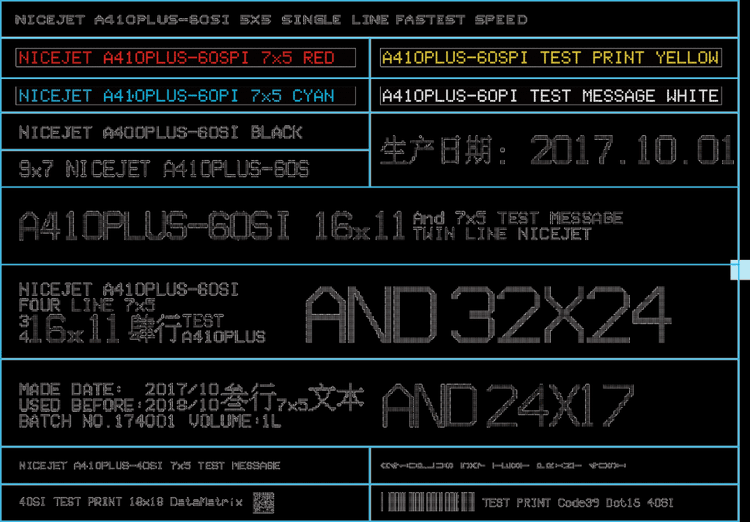

	Optional dot matrix font	5x5;7x5;9x7;11x9 16x11;24x16;32x24
Consumables	Optional ink type	Pigment,dye
	Optional ink color	Black,yellow,white,blue,etc
	special inks	PE:Resistant to alcohol,high temperature,migration,oil ilm,invisible ink,etc
	diluent	Select according to ink type
	Detergent	Select according to ink type
Technical parameter	Nozzle	Nozzle constant temperature Diameter:35mm Length:260mm
	Tube	Length:2700mm Diameter:21mm Bending radius:150mm
	Power supply	200-240VAC;50Hz
	Power	120W-150W
	Weight	27kg
	Temperature and Humidity Range	5C-45C; 30%-90%
Convenient design	Consumables addition	Drawer,spin addmode
	Communication function	RS232、USB
	User fields	QR code,barcode,pattern, clock,counter,shift,etc
