Customizable Slot Die Coating Machine

Model Number:: SIMY-SD500
Compliance:: CE certificate
Warranty:: Two Year Limited Warranty With Lifetime Support
Payment:: T/T, Credit Card, Paypal, LC, Western Union
Delivery Time:: 3 Days

Email:: [email protected]
WhatsApp:: +8618659217588
WeChat:: 18659217588

Product Description

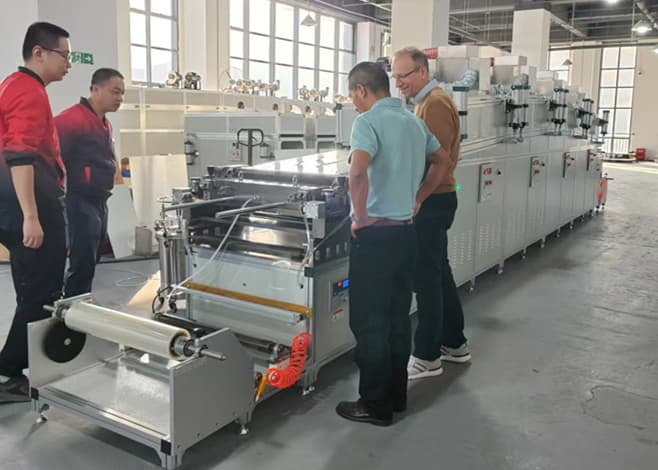

Customizable Slot Die Coating Machine

The SIMY-SD500 Slot Die Coating Machine is ahigh-precision coating system designed foruniform and consistent thin-film coatings. It features a 500mm standard coating width, withfull customization options to meet specific industrial and research requirements. The machine is suitable forbattery electrodes, optical films, electronic materials, and specialty coatings, offeringprecise thickness control and high coating repeatability.

Key Features

1. Customizable Coating Width & Thickness

Standard width:500mm (customizable from100mm to 1000mm).

Slot die gap adjustable forprecise thickness control (1-1000μm).

2. High Precision & Uniform Coating

Slot die coating head with fine adjustment ensures high uniformity.

Supportssolvent-based, water-based, and UV-curable coatings.

3. Custom Drying & Heating Systems

Optionalhot air, infrared (IR), or UV drying system.

Temperature-controlled coating for improved material compatibility.

4. Adjustable Speed & Tension Control

Coating speed:0.1-10m/min (customizable).

Automatic tension control system for stable film processing.

5. Advanced Automation & Control

Touchscreen PLC control system for precise process control.

Real-time monitoring & data logging for quality assurance.

Technical Specifications

Parameter	SIMY-SD500
Max Coating Width	500mm (Customizable: 100mm-1000mm)
Coating Thickness	1-1000μm (Adjustable)
Coating Speed	0.1-10m/min (Customizable)
Substrate Compatibility	PET, PI, Glass, Metal Foil, Paper
Slot Die Adjustment	Manual / Automatic (Optional)
Drying System	Hot Air / IR / UV (Optional)
Heating System	Optional (Temperature-Controlled)
Control System	PLC Touchscreen Interface
Power Supply	AC 220V, 50Hz (Customizable)
Dimensions	Customizable
Weight	Varies Based on Configuration
