Detachable Split Type Test Cell For Testing 18650 Batteries

Model Number:: EQ-SC-18650
Compliance:: CE certificate
Warranty:: Two Year Limited Warranty With Lifetime Support
Payment:: T/T, Credit Card, Paypal, LC, Western Union
Delivery Time:: 3 Days

Email:: [email protected]
WhatsApp:: +8618659217588
WeChat:: 18659217588

Product Description

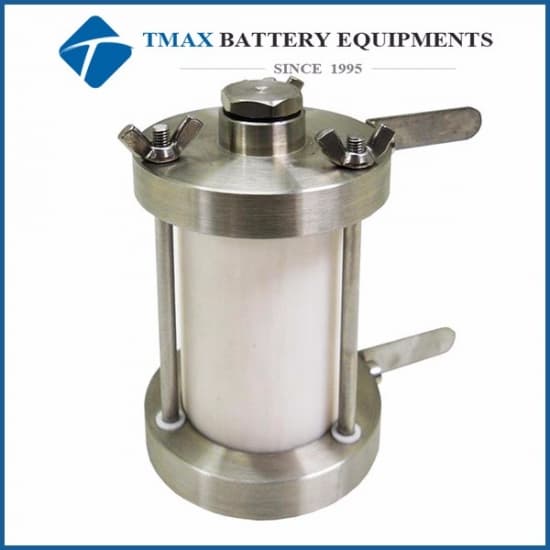

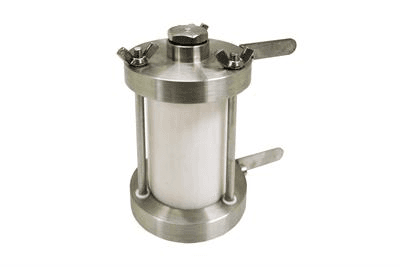

Detachable Split Type Test Cell For Testing 18650 Batteries

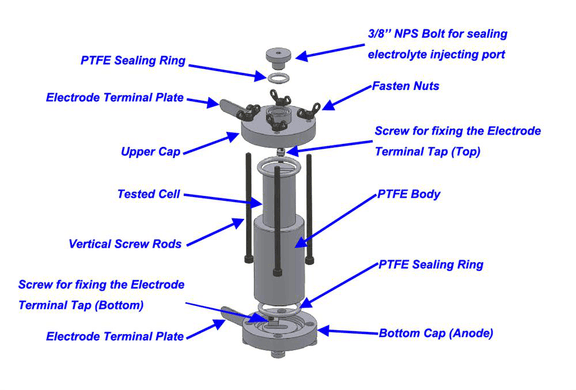

EQ-SC-18650 Split Type Test Cell is designed for testing 18650 batteries. Its detachable design allows you to test the cycling behavior as well as structural changes of electrodes easily and quickly.

SPECIFICATIONS:

Model	EQ-SC-18650-TF	EQ-SC-18650-Qz
Dimensions (Dia. x Height)	1. ID of PTFE Body (liner): 18mm 2. Height of PTFE Body: 65mm	1. ID of Quartz Body (liner): 19mm 2. Height of PTFE Body: 65mm

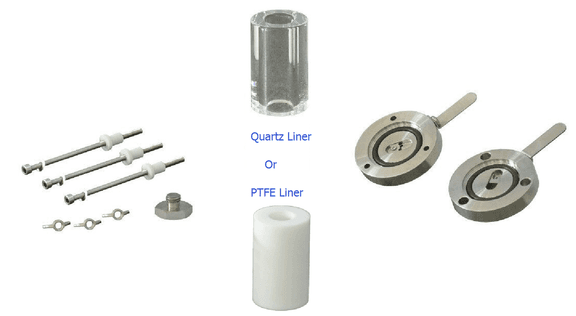

Material	1. Caps: Full Stainless steel 304 end caps 2. Body liner: Electrolyte corrosion-proof PTFE liner can withstand temperature up to 250ºC 3. O-ring: Sealed by electrolyte corrosion-proof PTFE O-rings	1. Caps: Full Stainless steel 304 end caps 2. Body liner: Transparent quartz body allows you perform In-situ Laser Raman Spectroscopy. 3. O-ring: Sealed by electrolyte corrosive-proof PTFE O-rings
Design	1. Easy assembling with only four cap mounting screws 2. Easy to separate for cleaning after the test 3. Space saving, compact design allows you put it into the glove box
