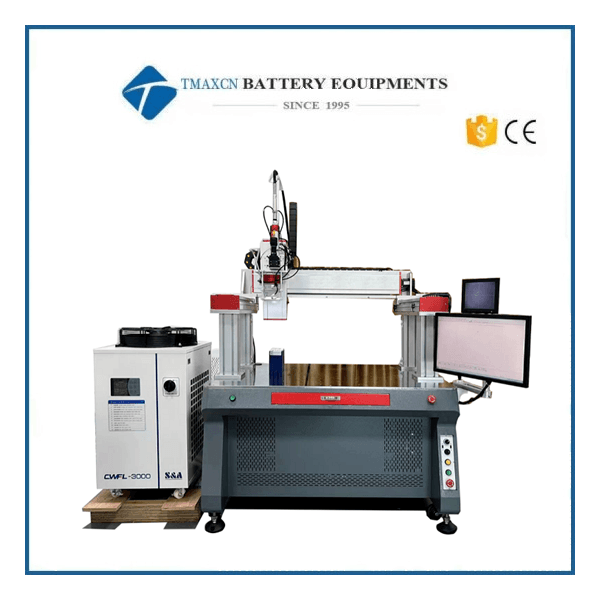

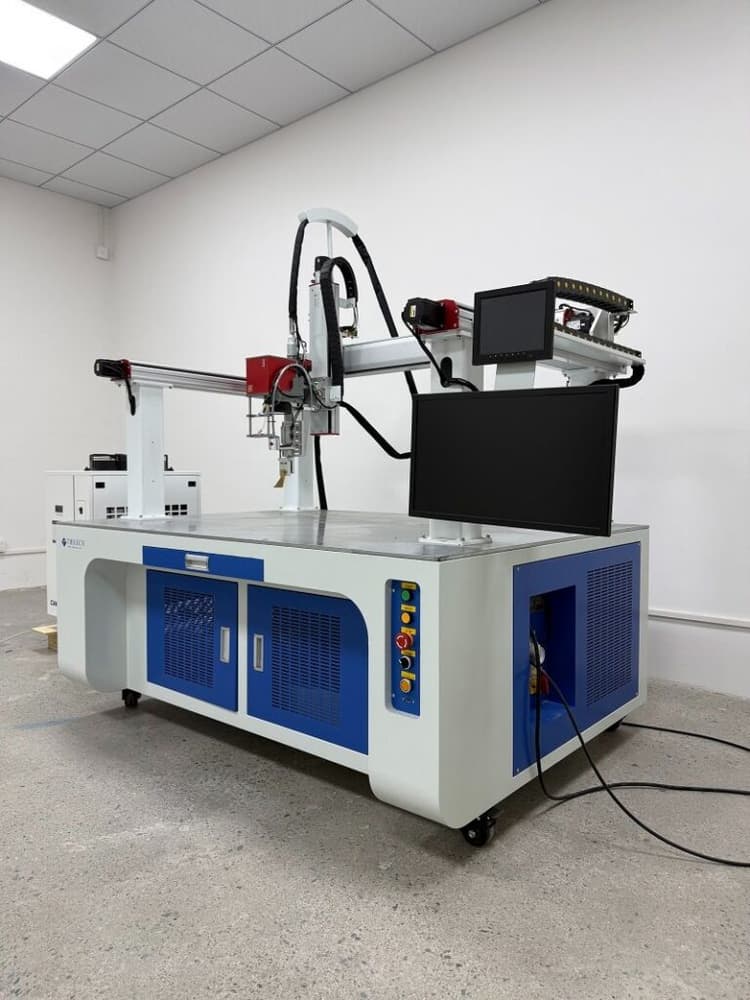

1500W-6000W High-Precision Laser Welding Machine for Prismatic Battery Welding

1500W-6000W High-Precision Laser Welding Machine for Prismatic Battery Welding



I.Equipment adaptation range

Copper, aluminum, iron, nickel, or their alloy metal welding, especially suitable for the welding process of aluminum bars or nickel to nickel connections in Prismatic batteries.

II.Equipment Overview

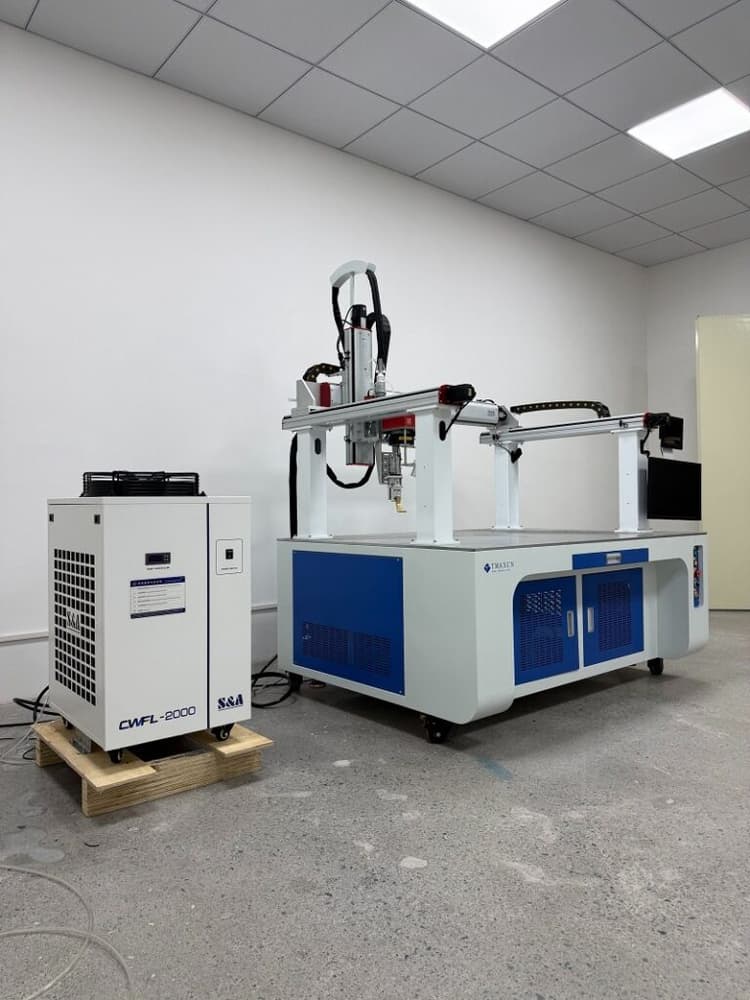

The TMAX-ZW-J860 gantry continuous galvanometer laser welding machine adopts internationally advanced fiber laser as the laser source, combined with our company's independently developed, designed, and manufactured gantry machine tool, which has good rigidity and stability; Operated with precision guide rail transmission, equipped with high response servo motors, high precision and fast speed; Mainly aimed at the welding of aluminum copper bar connectors for prismatic cell lithium battery PACK groups, as well as the welding of other hardware connectors.

III.Functional characteristics

• Paired with high-power fiber continuous laser, it has sufficient power, fast speed, high accuracy, and stable welding quality.
• It can support up to 6-axis motion control, adapt to automation needs in various occasions, and can be connected to automatic lines or operated independently.
• Equipped with a high-power galvanometer welding head, it can be used in conjunction with the XY gantry motion platform to facilitate the welding of various complex graphic trajectories.
• Specialized welding control software, welding process experts, comprehensive data saving and calling functions, with powerful drawing and editing graphic functions.
• Equipped with a CCD monitoring system, it is easy to debug and can monitor welding quality in real time.
• Equipped with a red light positioning system, it can quickly locate the welding position and focal length of the product, which is simple, convenient, and easy to use.
• A powerful water cooling circulation system can keep the laser welding machine in a constant temperature state, improve welding quality, and extend the machine's service life.

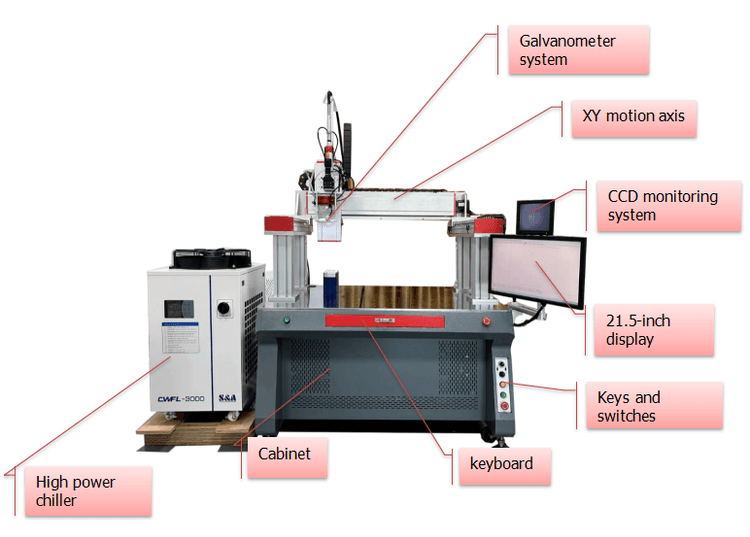

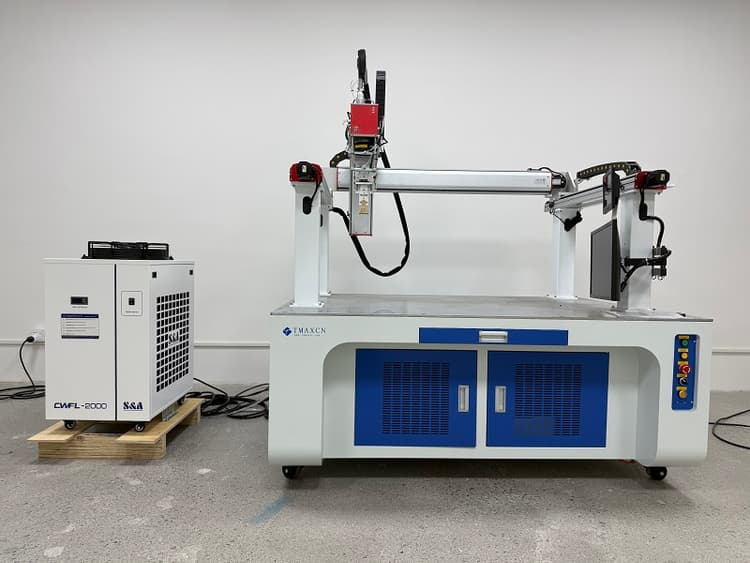

IV.Equipment structure

V.Workflow

VI.Technical Parameter

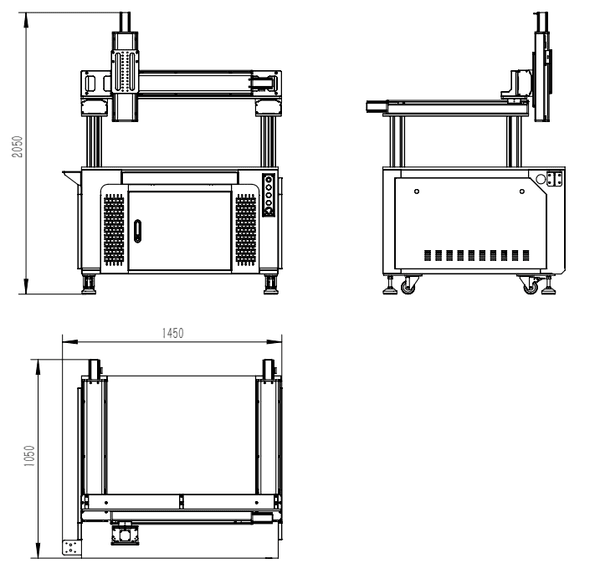

VII.External dimension diagram
