Hydraulic heating calendaring machine for Electrode Calendering

Model Number:: TMAX-GY-150
Dimension(L*W*H):: Diameter 100/200/300
Net Weight:: 2 tons
Warranty:: Two Year Limited Warranty With Lifetime Support
Payment:: T/T, Credit Card, Paypal, LC, Western Union
Delivery Time:: 3 Days

Email:: [email protected]
WhatsApp:: +8618659217588
WeChat:: 18659217588

Product Description

Hydraulic heating calendaring machine for Electrode Calendering

1.Lower price
2.easy operation and maintain
3.Use for lithium battery Lab and pilot line
4.technology support for battey

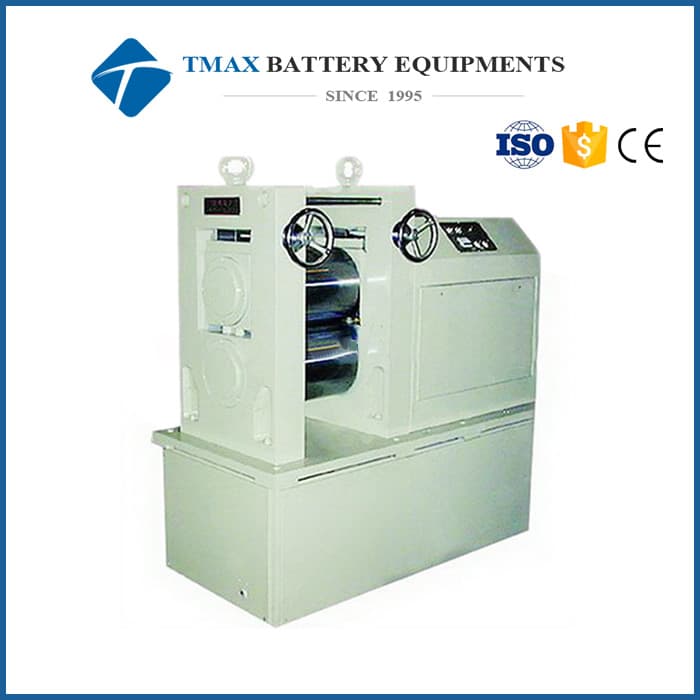

Experimental Hot Press Machine--TMAX-GY-300

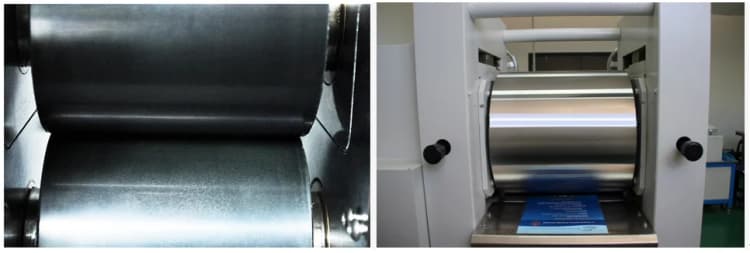

For lithium battery cathode and anode rolling, specialty rolls with high hardness, high precision bearing great pressure, even pressure, easy to adjust. Frequency control, flexible and reliable.

Technical Parameters:

Roll Size	( Diameter )300mm × 350mm
Configuration:	precision rack, short-changed eliminate vibration, deep quenching chilled, frequency conversion speed, air hydraulic clamping
Two pressure rollers between the lines	max70 Tons
Roll surface hardness	HRC ≥62
Decay hardness layer thickness	10 ~ 12mm
Roll surface roughness	Ra ≤0.8
Installed roll jump accuracy error	≤ ± 0.003mm
Nip adjustable detection range	0 ~ 2.0mm
Roll speed	stepless adjustable, maximum speed 5 rev / min.
Host Dimension	about 2.0m × 1.7m × 2.0m (L × W × H).
Main motor power	5.5KW
Weight	2 tons
