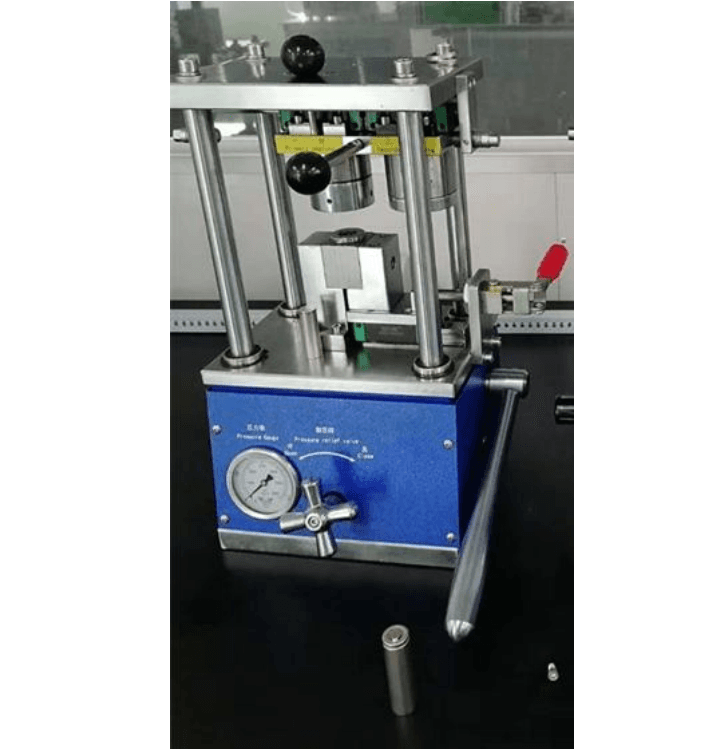

Lab Hydraulic Crimping Machine for 32650, 26650, 21700, 18650, AA and AAA Cylindrical Cases

Model Number:: TMAX-CF650
Type:: Hydraulic Crimping Machine
Dimension(L*W*H):: 300L x 200 W x 350H mm
Net Weight:: 50 kg (100 lbs)
Compliance:: CE certificate
Warranty:: Two Year Limited Warranty With Lifetime Support
Payment:: T/T, Credit Card, Paypal, LC, Western Union
Delivery Time:: 3 Days

Email:: [email protected]
WhatsApp:: +8618659217588
WeChat:: 18659217588

Product Description

Lab Hydraulic Crimping Machine for 32650, 26650, 21700, 18650, AA and AAA Cylindrical Cases

Overview

It is mainly used for the sample production of battery material research and development in laboratory, for the scientific research and sealing of cylindrical battery and cylindrical capacitor, and can also be used for small batch trial production in factories.

Configuration mold:

1 set of 18650 cylindrical battery crimping die is provided as standard, which can be sealed twice (other cylindrical battery sealing mold can be selected).

Features

*The built-in safety overflow oil valve can adjust the pressure according to the needs, and set the upper pressure limit to prevent the damage caused by excessive pressure caused by misoperation, so as to ensure the safety of the machine.

*Embedded pressure gauge, can observe and accurately control the size of sealing pressure.

*Hydraulic drive, pressure up to 8t, battery seal no vibration, no leakage.

*Special designed hydraulic structure, easy to operate.

*The precise mold design ensures the accuracy and reliability of sealing and forming. The firm steel structure design ensures stable and safe use.

*Small size, easy to operate, can be placed in glove box operation.

*It has the advantages of small volume, convenient operation and accurate molding.

Specifications

Driving Force	The pressure gauge reading of the norma cylinder battery crimping pressure is about 80-100kg/cm2.The machine has been adjusted before delivery.If a higher pressureis required in specia circumstances(the maximum pressure is 200kg/cm2,about 8t pressure),it can be adjusted after consulting the manufacturer
Crimping dies	1 set of 18650 cylindrical battery crimping die is provided as standard other cylindrical battery crimping die is also available upon request
Mould	Adopt Japanese import mould material
Machine frame	High strength chromium steel,the surface after environmental protection electroplating and spraying treatment,never rust
Machine dimensions	235mmX190mm X360mm
Machine weight	40kg
