Large Dual Rollers Battery Adjustable Roller Heat Press Machine

Model Number:: TMAX-DYG-703A
Input Power:: 5.5KW
Net Weight:: 55KG
Compliance:: CE Certified
Warranty:: Two Year Limited Warranty With Lifetime Support
Payment:: T/T, Credit Card, Paypal, LC, Western Union
Delivery Time:: 3 Days

Email:: [email protected]
WhatsApp:: +8618659217588
WeChat:: 18659217588

Product Description

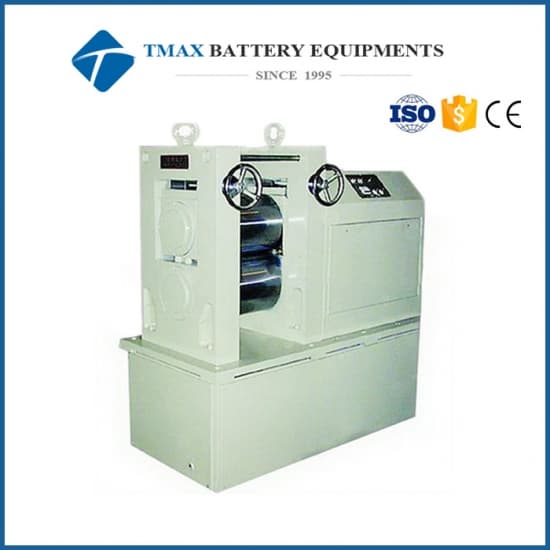

Large Dual Rollers Battery Adjustable Roller Heat Press Machine

1 TMAX-DYG-703A system battery roll press machine is a high precision Mechanical roller press machine. It has dual rollers of 300mm dia.* 300mm width and Dia400mm*400mm width model.. Thisbattery roll press machine is an ideal rolling press for adjusting thickness and increasing active material density of the electrode in Li-Ion batteries research after coating and drying for producing.

2 This model battery roll press machine is pressure adjustable roll press
The operator adjust the press pressure to get best effect battery electrode density according to battery design.

Specifications:

Model	TMAX-DYG-703A-300	TMAX-DYG-703A-400
Type	Vertical 2 Roll Press type
Source voltage	AC110V/220V 50/60HZ
Power	5.5KW		7.5KW
Warranty	One year limited warranty with lifetime support
Roller diameter	Dia * width=300*300mm		Dia * width=400*400mm
Speed	4r.p.m		8r.p.m
Pressure	100T about 980KN
Rolling press mode	Preloading suppression way; Preload pressure by a manual handle
Roller drive way	Gear to gear transmission planetary gear reducer gear motor drive
Max rolling gap adjustment	0-2mm adjustable
Structure	1 Roll surface roughness surface roughness of 0.4um 2 Roll hardness: HRC62-65 roll conditioning: HB280-300 18mm or higher quenching depth and roll cylindricity less than 0.003 mm 3 Adopt p52 precision bearings 4 Roll gap adjusting : automatic locking device 0-2 mm is adjustable
Dimension(LWH)	138056001480mm		181910001817mm
Weight	About 2.8T		About 4T
