Manual Electrode And Separator Winder Winding Machine for Cylinder Cell Winding

Model Number:: TMAX-MW001
Type:: Electrode Winding Machine
Dimension(L*W*H):: Less than Φ35*L90mm
Net Weight:: 40kg
Compliance:: CE certificate
Warranty:: Two Year Limited Warranty With Lifetime Support
Payment:: T/T, Credit Card, Paypal, LC, Western Union
Delivery Time:: 3 Days

Email:: [email protected]
WhatsApp:: +8618659217588
WeChat:: 18659217588

Product Description

Manual Electrode And Separator Winder Battery Winding Machine for Cylinder Cell Winding

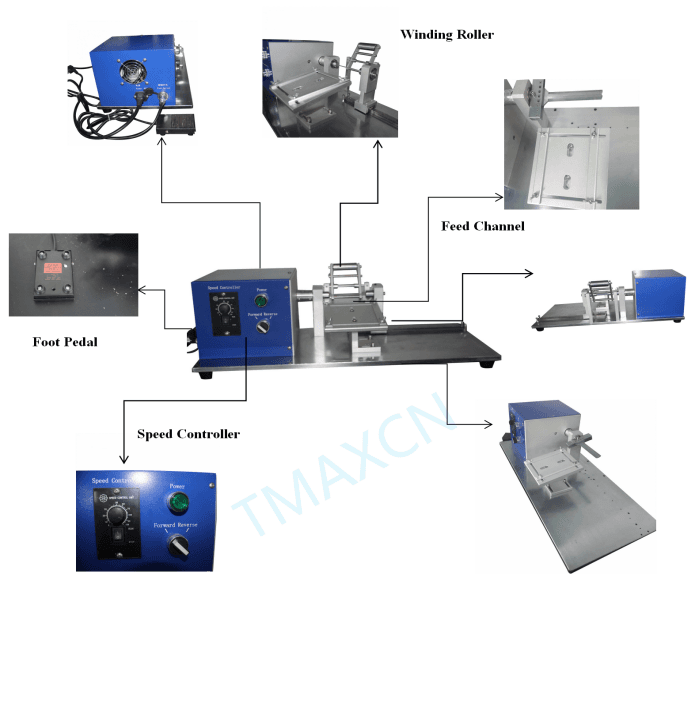

TMAX-MW001 semi-automatic winder machine is used for winding battery anode/cathode electrodes with separator together in the research of Li-ion cylinder batteries.

Model	Semi-Automatic Winding Machine TMAX-MW001
Working Voltage	AC110V/220V, 50/60HZ
Power	40W
Warranty	·One Year limited warranty with lifetime support
Winding Speed	0 - 170 RPM Adjustable
Suitable battery size	Less than Φ35*L90mm, or according to your requirement
Winding Mode	Switchable between clockwise and counterclockwise
Output	70-100EA/h, according to battery size and maunal
Product Dimensions (LWH)	550310270mm
Net weight	About 20kg (45 lbs)
Package size	720320280mm
Package weight	40kg

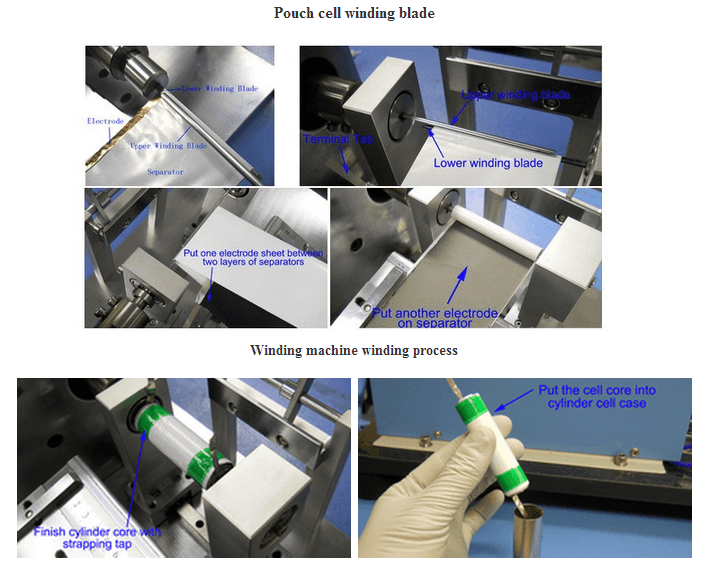

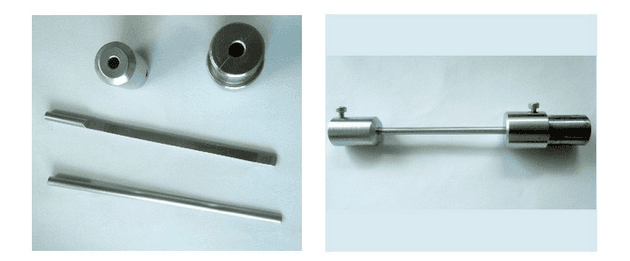

Application Notes	This machine can be used for cylinder battery with round winding shaft, and you can also choose the square winding shaft for pouch cell core winding, We will supply with the suitable winding accessories according to your battery model
