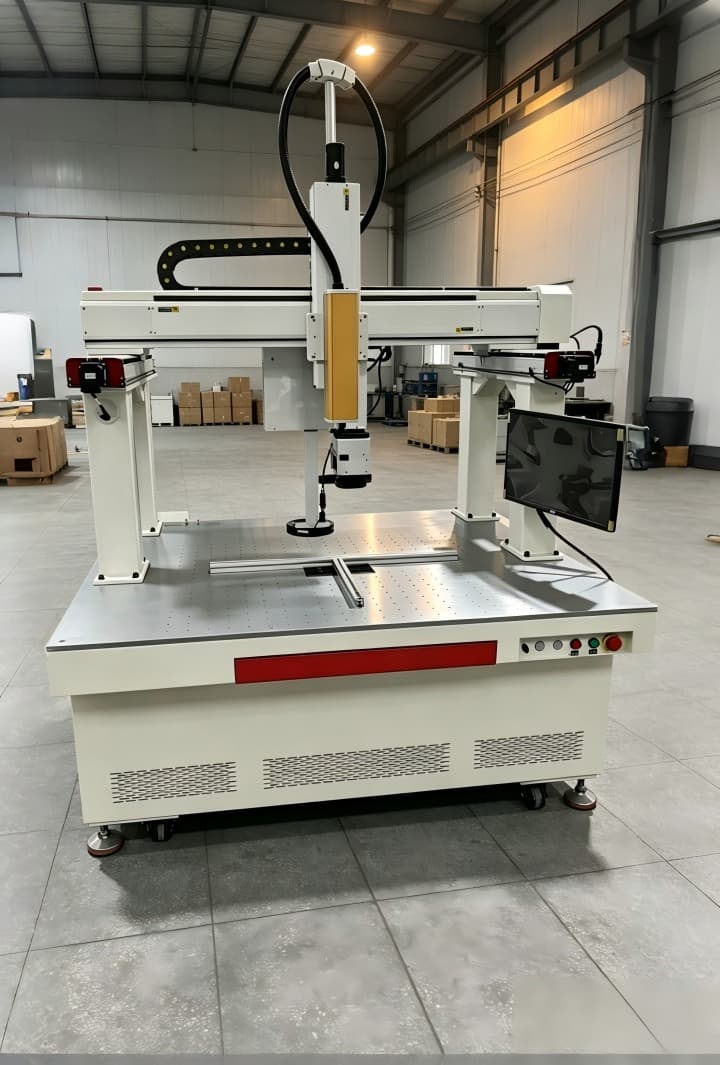

Automatic Laser Nickel Strip Removal Machine for Battery Packs

Automatic Laser Nickel Strip Removal Machine for Battery Packs

Model Number:
TMAX-XR-FB-100W
Dimension(L*W*H):
1320x880x1450mm
Net Weight:
300kg
Compliance:
CE Certified
Warranty:
One years limited warranty with lifetime technical support
Place of Origin:
China
MOQ:
1
Payment:
L/C D/A D/P T/T Western Union
Delivery Time:
5 Days
Email:
[email protected]
WhatsApp:
+8618659217588
WeChat:
18659217588

Product Description

Automatic Laser Nickel Strip Removal Machine for Battery Packs



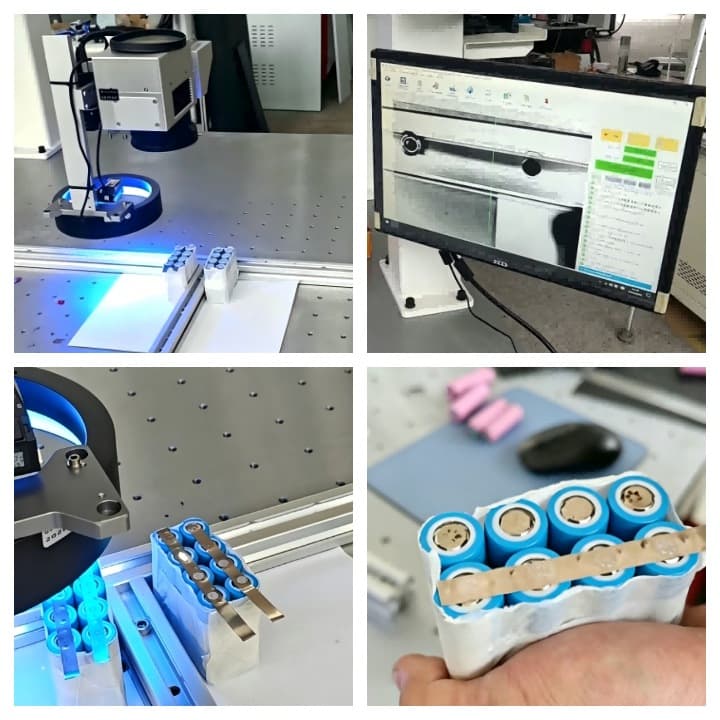

1.Application Scope

▷ Applied for nickel tab cutting of 1860 and other cylindrical battery packs.

Details:

Incoming Material: Regularly arranged cylindrical battery packs

Welding Material: Nickel or nickel-plated steel (≤ 0.15 mm)

Cutting Method: Module motion cutting

 Note: If the nickel strip thickness exceeds 0.15 mm, the battery pack needs to pass through the machine twice until the nickel strip can be peeled off.

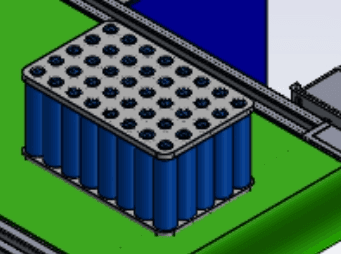

2.Equipment Welding Process Flow

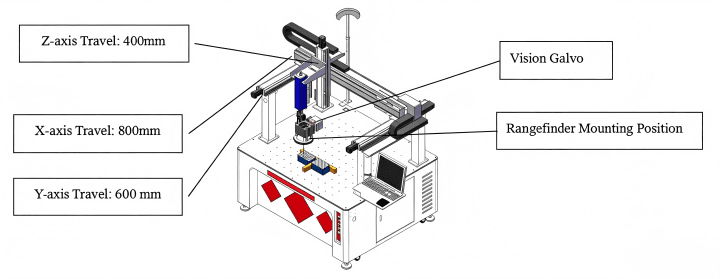

2.1 Equipment Axis View

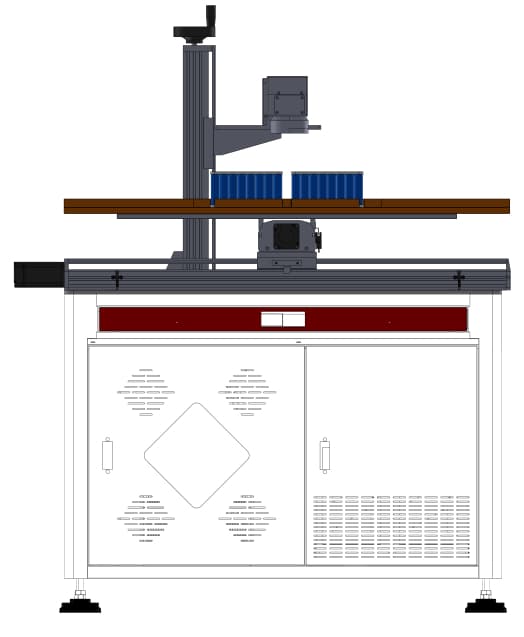

2.2 Equipment Dimension Overview

2.3 Main Configuration List

Component Name Specification / Model Remarks
Laser Chuangxin 100W 1 set
Galvo 10-spot high-speed digital scanning 1 set
Vision System XR-CCD6.0 1 set
Positioning System Vision Positioning 1 set
Focusing Lens F=160mm, 1064nm 1 pc
Computer Industrial PC with 19" LCD 1 set
XYZ Axis Travel 800×600×400 mm (effective) 1 set
Precision Sheet Metal Cabinet 1600×1300×1650 mm 1 set
Vision Camera Hikvision 12MP 1 set
Rangefinder Panasonic HGC-1100 1 set



2.4 Equipment Technical Parameters

Parameter Specification
Model XR-FB-100W
Laser Power 100W
Laser Wavelength 1064 nm
Beam Quality M² < 1.5
Laser Output Power 1%–100%, continuously adjustable
Laser Output Frequency 1%–50 kHz
Cutting Range 1000 × 250 × 200 mm
Repeatability ±0.01 mm
System Operating Environment Windows XP
Operating Temperature 10℃–38℃
Power Requirement 220V / Single Phase / 50Hz / 60A
Machine Weight ≈200 kg

3.Equipment Operating Environment

Ambient temperature: 15℃ – 40℃

Humidity: 40% – 80%, non-condensing

Power network: AC 380V / 50Hz, voltage fluctuation within ±5%, with compliant grounding

Areas with voltage fluctuation exceeding 5% should be equipped with voltage stabilizers

Avoid strong electromagnetic interference; no radio transmission stations nearby

Foundation vibration amplitude: <50 μm, acceleration <0.05g

Environment should be clean, free of smoke, and without metal grinding dust

In some environments, anti-static flooring and additional shielding are recommended
