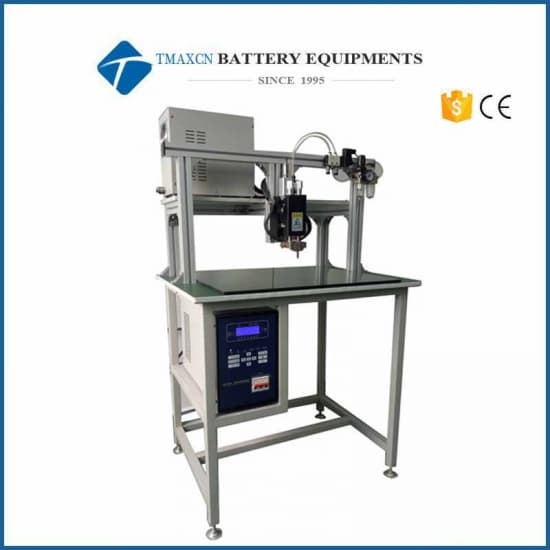

Pneumatic Inverter DC Tab Spot Welding Machine for Battery Pack Assembly

Model Number:: TMAX-DC-01
Type:: Pneumatic
Input Power:: 35kw
Dimension(L*W*H):: 185x280x420mm
Compliance:: CE certificate
Warranty:: Two Year Limited Warranty With Lifetime Support
Place of Origin:: China
Payment:: T/T, Credit Card, Paypal, LC, Western Union
Delivery Time:: 3 Days

Email:: [email protected]
WhatsApp:: +8618659217588
WeChat:: 18659217588

Product Description

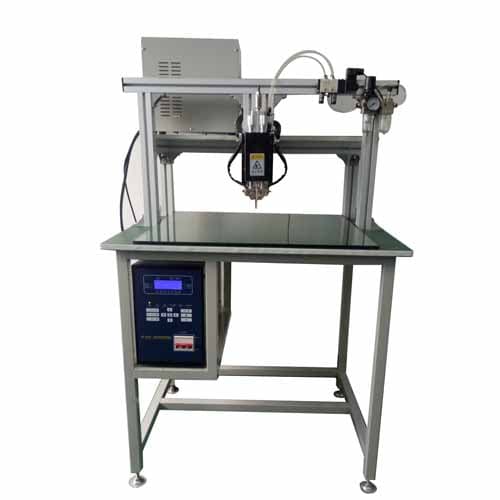

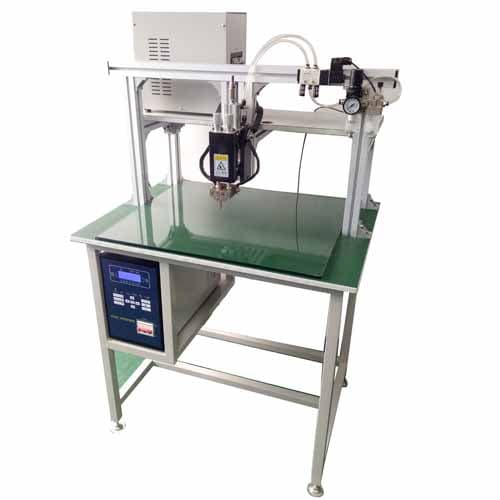

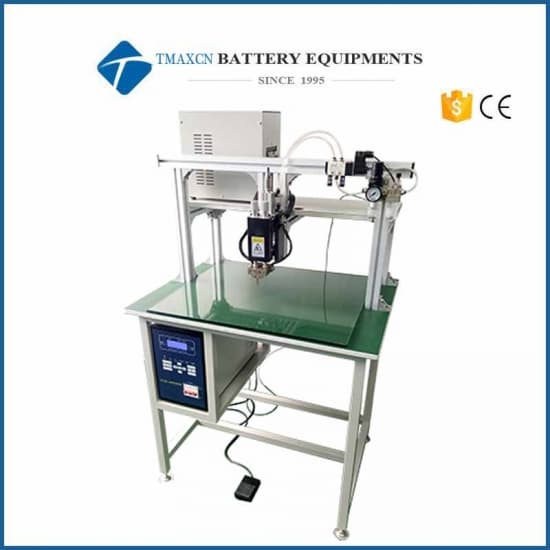

Pneumatic Inverter DC Tab Spot Welding Machine for Battery Pack Assembly

FEATURE:

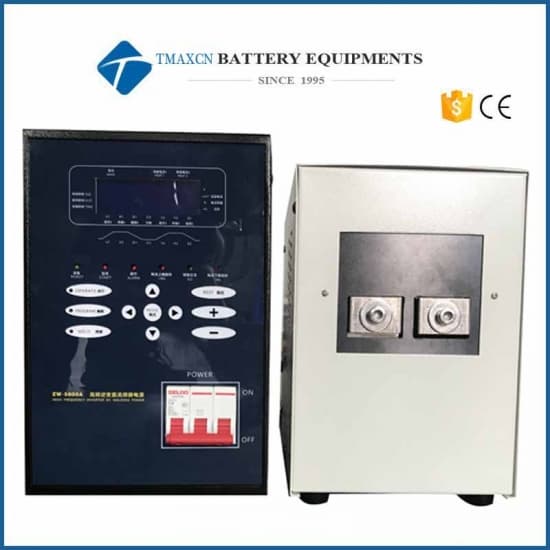

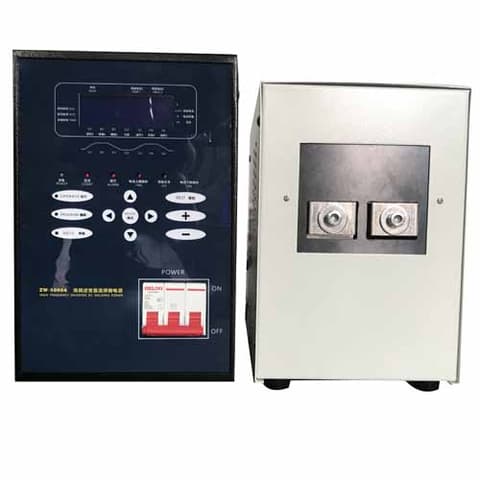

The equipment includes inverter, welding controller and intermediate frequency transformer. It adopts modular design, selects imported components and is equipped with the company's advanced microcomputer controller, and cooperates with 2 sets of analog/digital conversion circuits to change the power supply voltage. Temperature changes are automatically controlled to maintain a stable output.

The spot welder is widely used, and the welding transformer has a small volume and a large output energy.

ADVANTAGE:

1.The current is rectified in order to supply DC welding current.

2.It helps to reduce the energy of iron core material.

3.Transform the electric energy into DC power

4.DC output.Heat concentration,the heat efficiency is increased, the welding process is stable, the welding quality is improved, and the electrode life is prolonged .

Specification:

Model	TMAX-DC-01
Transformer Maximum Output Power	35KVA
Maximum Output Short Circuit Current	5000A
Welding Conditions	8
Open Circuit Voltage	10V
Control Mode	Constant Current Control
Input Frequency	AC 220V±10% 50Hz
Weight	55KG
Welding Thickness	Maximum thickness of parallel welding:0.03mm~0.5mm
Maximum Thickness of Upper and Lower Butt Welding	0.3mm+1mm
Size	185x280x420mm
