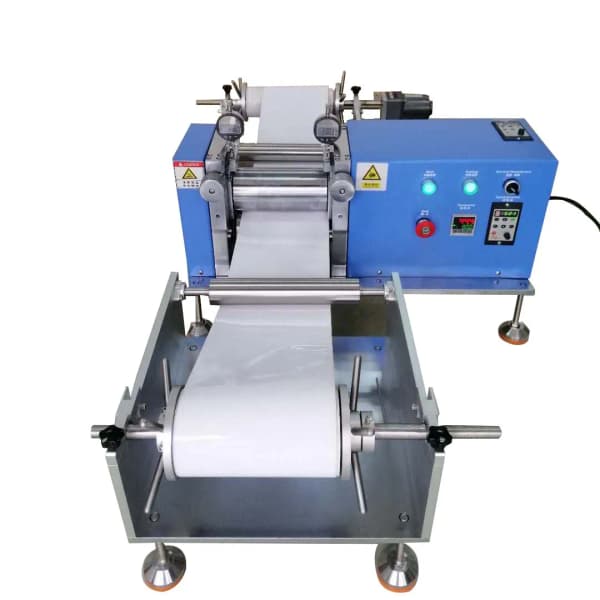

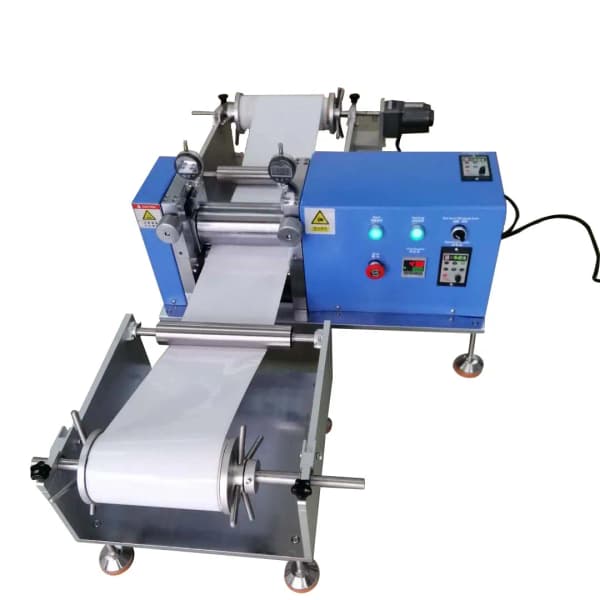

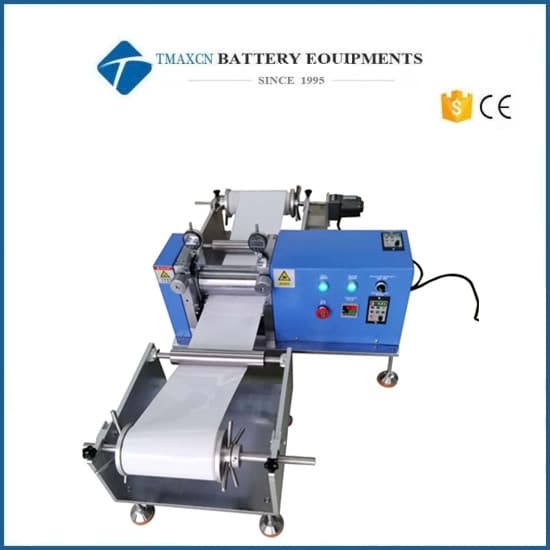

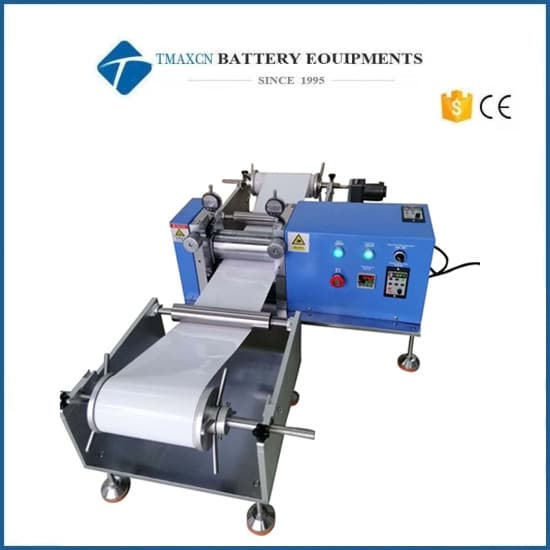

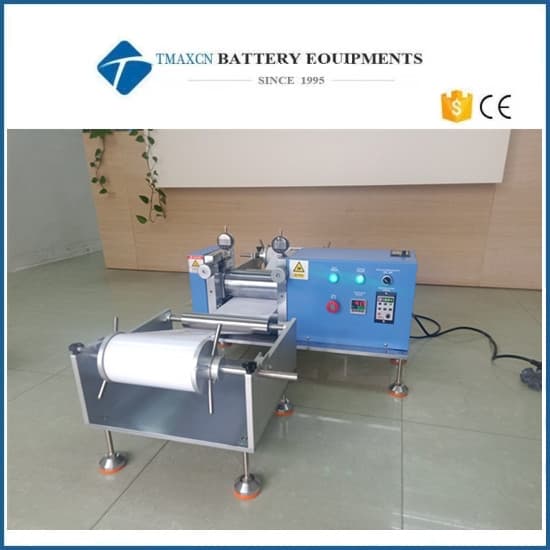

Roll to Roll Rolling Press for Battery Electrodes with Feeding and Winding Devices

Model Number:: TMAX-windroll
Type:: Pouch Cell Making Machine
Compliance:: CE certificate
Warranty:: Two Year Limited Warranty With Lifetime Support
Payment:: T/T, Credit Card, Paypal, LC, Western Union
Delivery Time:: 3 Days

Email:: [email protected]
WhatsApp:: +8618659217588
WeChat:: 18659217588

Product Description

Roll to Roll Rolling Press for Battery Electrodes with Feeding and Winding Devices

Features

All rolls are made of high-strength and high-hardness rolls, with the hardness reaching HRC62-63. The roller material is 9Cr2Mo which is high-hardness and high-performance. After heat treatment, the material is frozen. The surface quenching layer is deep and the performance is stable.

Specifications

Specification
Working Voltage	220V/110V,50HZ
Max.Power Consumption	3KW
Roller	Dimensions:100mm(Dia.)x200mm(W) Material:Hardening Toll Steel with HRC62 Effective Rolling Width:<200mm
Press gap	0-3 mm adjustable by Dual micrometer knobs Tolerance:0.003mm
Roller Surface Hardness	62-63 HRC
Roll temperature	130℃
Roll speed	0-6 rpm,stepless speed change adjustable;
Weight	150kg
Maximum working pressure	3KN
Reeling and unwinding device
Electrode parameters	Core:Diameter:50 mm, Max Diameter of unwinding:200 mm Maximum width of electrode piece:200 mm
Unwinding parameters	Tension control accuracy of electrode piece:5% Tension adjustment(setting)range:0.5-3.5Kgf
Edge control	Deviation correction accuracy≤±0.5mm
Tension adjustment	25N
