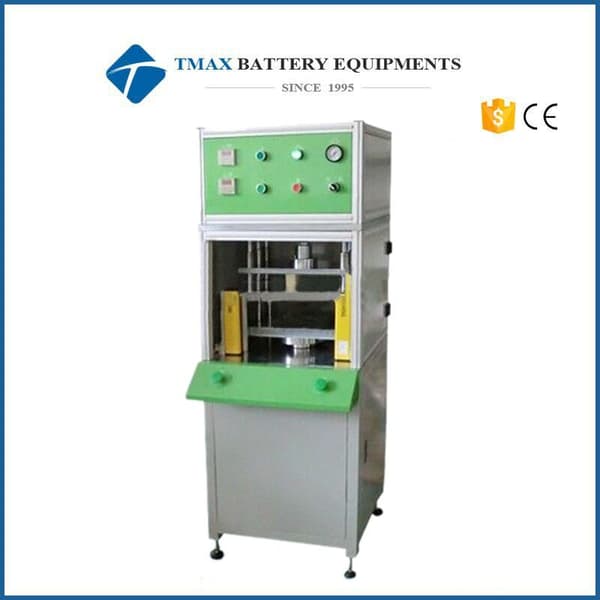

Semi-Automatic Aluminum Laminated Film Forming Machine For Polymer Pouch Cell Case

Model Number:: TMAX-Form150
Type:: Punch Forming Machine
Dimension(L*W*H):: 700x 640 x 1650mm
Net Weight:: 600kg
Compliance:: CE certificate
Warranty:: Two Year Limited Warranty With Lifetime Support
Payment:: T/T, Credit Card, Paypal, LC, Western Union
Delivery Time:: 3 Days

Email:: [email protected]
WhatsApp:: +8618659217588
WeChat:: 18659217588

Product Description

Semi-Automatic Aluminum Laminated Film Forming Machine For Polymer Pouch Cell Case

1TMAX-Form150 Aluminum laminated film punching forming machine is used for lithium polymer battery/ pouch cell cup forming in the production line of making pouch cell batteries.

2 The machine is used to prepare polymer cases made of Aluminum Laminated Films.

Model	Pouch Cell Case Forming Machine
Working Voltage	110 -240V AC, single phase 50/60HZ
Power	100 W
Warranty	One Year limited warranty with lifetime support
Advantages	1 Structure of guide pin, slide up/down smoothly with high precision 2 Change mould, adjust tensile depth simply, quickly 3 Use screen and casing protection, guarantee safety 4 High strength of chrome steel and aluminum alloy, surface roasts the paint processing through environmental protection electroplating 5 With manual and auto two kinds operating mode, Customer can choose freely according to their needs.
Punching aluminum laminated film thickness	0.1-0.2mm
Max Die size(LWD)	2002006mm, Customized according to needs
Air Pressure Requirement	0.5 - 0.7 MPa (Air Compressor is not included)
Max. Cup Depth to Punch	< 6.0 mm
Max. Punching Pressure	5 metric tons
Stroke Frequency	< 8 seconds per trial
Product Dimensions	700mm(L) x 640mm(W) x 1650mm(H)
Net Weight	600 kg
Shipping Dimensions(LWH)	1768074cm
