Semi-Automatic Electrode Die Cutting Machine for production line

Semi-Automatic Electrode Die Cutting Machine for production line

Model Number:
TMAX-MQ300
Type:
Electrode Die Cutter
Dimension(L*W*H):
Max.300mm(L) x 250mm(W)
Net Weight:
120kg (265 lbs)
Compliance:
CE certificate
Warranty:
Two Year Limited Warranty With Lifetime Support
Payment:
T/T, Credit Card, Paypal, LC, Western Union
Delivery Time:
3 Days
Email:
[email protected]
WhatsApp:
+8618659217588
WeChat:
18659217588

Product Description

Semi-Automatic Electrode Die Cutting Machine for production line

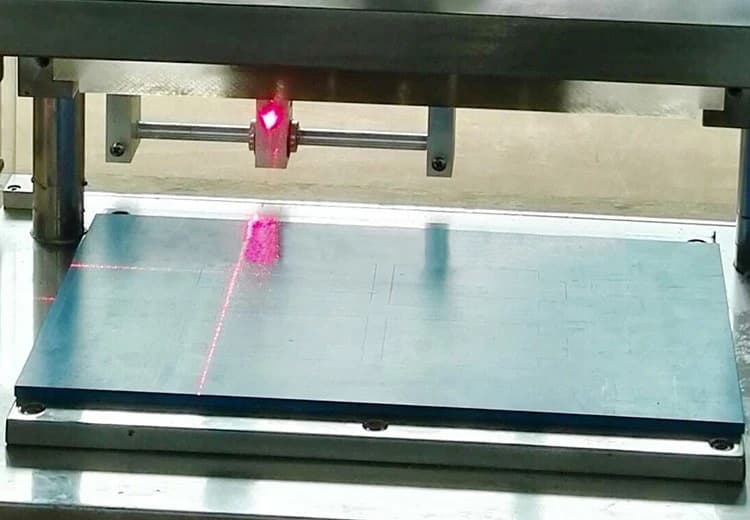

TMAX-MQ300 is a CE Certified semi-automatic electrode die cutter.

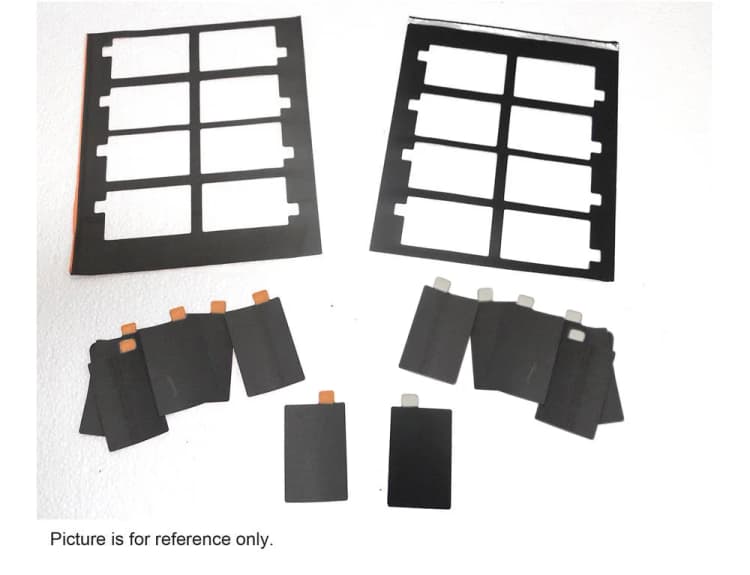

It is a necessary tool in the production line of pouch cell to produce specific shapes of cathodes and anodes with current collector tabs.

SPECIFICATIONS:

Model

Battery Electrode Die Cutter Machine  TMAX-MQ300

Work voltage

AC110V/220V, 50/60HZ

Power

100W

Warranty

One year limited warranty with lifetime support

Cutting Die

Customized according to customer's request

Safety Protection

Built in Safety Curtain to protect against hand injuires during electrode feeding

Double start press button

Cutting Accuracy

±0.1mm

Air Cylinder

5 tons Max. pressure

Tensile Cylinder

0.15 tons pressure

Cutting stroke

250mm

Feeding

Manually

 Yield

800 - 2000 pieces of electrodes per hour

Air Pressure

0.5-0.8Mpa

Dimension

(L*W*H)

580*455* 900mm

Net Weight

120kg (265 lbs)

Shipping Dimensions

47*75*109cm
