Three-Zone 1200°C Tube Furnace W/ Kanthal (Sweden) Heating Elements
- Model Number:
- TMAX-1200℃-three-fur
- Dimension(L*W*H):
- 60mmOD x 1300mm L (Size Can Be Customized)
- Compliance:
- CE certificate
- Warranty:
- Two Year Limited Warranty With Lifetime Support
- Delivery Time:
- 3 Days
- Email:
- [email protected]
- WhatsApp:
- +8618659217588
- WeChat:
- 18659217588
Product Description
Three-Zone 1200°C Tube Furnace W/ Kanthal (Sweden) Heating Elements

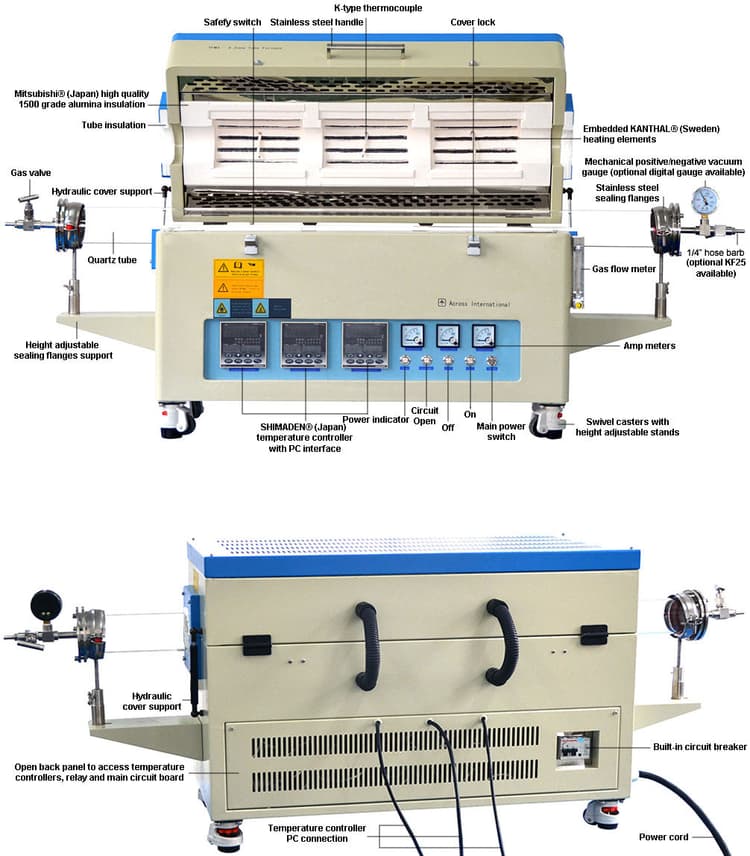

TMAX-1200℃ three furnace series 3-zone tube furnaces feature the famous Kanthal (Sweden) resistance wire as their heating elements. Furnace hearth is built with Mitsubishi (Japan) high quality fiber materials. Temperature of this furnace is controlled by high precision temperature controller (Shimaden fp93 from Japan) with +/-1 °C accuracy and 40 programmable segments. Furnace housing is built with double-layer steel and two cooling fans inside keep the furnace body temperature low. Furnace tube is sealed by stainless steel vacuum sealing flanges, it can be used under vacuum and other gases condition. This tube furnace is an ideal tool for sintering all types of materials/chemical. Great for labs or college scientific research use.
These furnaces have built-in interface to a computer. We provide connection cable, adaptor and software that can be used to control the temperature and parameters of the furnace, all from your PC! You can also save a temperature curve for record or study purposes. All our furnaces have CE certificate.
General specifications
|
Electrical requirements
|
208-240VAC, 50/60 Hz, single
|
|
Tube material
|
Quartz
|
|
Min. working temperature
|
Ambient |
|
Max. working temperature
|
Zone1/Zone2/Zone3: 1200°C
|
|
Max. constant working
|
Zone1/Zone2/Zone3: 1100°C
|
|
Constant working temperature under vacuum
|
Zone1/Zone2/Zone3: 1000°C
|
|
Rated vacuum pressure
|
0.001 Pa / 0.0075 millitorr / 0.00001 mbar
|
|
Rated positive pressure
|
0.02 MPa / 150 torr / 3 psi
|
|
Refractory lining
|
Mitsubishi (Japan) high quality 1600 grade fiber alumina
|
|
Heating element type
|
Zone1/Zone2/Zone3: Kanthal (Sweden) resistance coil wire
|
|
Thermocouple type
|
Zone1/Zone2/Zone3: K
|
|
Temperature controller
|
Shimaden fp93 (Japan) with 4 programs and 40 segments (i.e. 4 x 10 segments or 2 x 20 segments)
|
|
Max heating rate
|
20°C/min
|
|
Recommended heating rate
|
10°C/min
|
|
Heating zone length
|
Zone1: 8 inches Zone2: 8 inches Zone3: 8 inches
|
|
Constant temperature zone length
|
Zone1: 4 inches Zone2: 4 inches Zone3: 4 inches
|
|
Temperature controller precision
|
+/- 1°C
|
|
Vacuum sealing flange kit
|
Stainless steel vacuum sealing flanges with one vacuum gauge, two valves and four thermal ceramic blocks.
|
|
CE compliance
|
Yes
|
Size comparison
|
Tube size (OD x length)
|
60mm x 1300mm
|
100mm x 1300mm
|
150mm x 1300mm
|
|
Maximum output
|
1.5 kW x 3
|
2 kW x 3
|
2.5 kW x 3
|
Standard Package
|
Part description |
|
Part image |
|
tube furnace
|
1
|
|
|
Stainless steel vacuum sealing flange set w/ pressure meter
|
1
|
|
|
Quartz tube
|
1 pc
|
|
|
Flow meter
|
1
|
|
|
Stainless steel hook
|
1
|
|
|
Alumina ceramic thermal block
|
4
|
|
|
Thermal gloves
|
1
|
 |
|
Spare fuse
|
2 pcs
|
 |
|
USB/RS485 computer interface kit
|
1
|
 |
|
Furnace and Shimaden controller manual
|
1 pc
|
|
.jpg)
.jpg)
