Roll To Roll Transfer Coater Reverse Comma Coating Machine with Drying Oven

  • Model Number:

    TMAX-SY300
  • Compliance:

    CE certificate
  • Warranty:

    Two Years limited warranty with lifetime support
contact now
DESCRIPTION

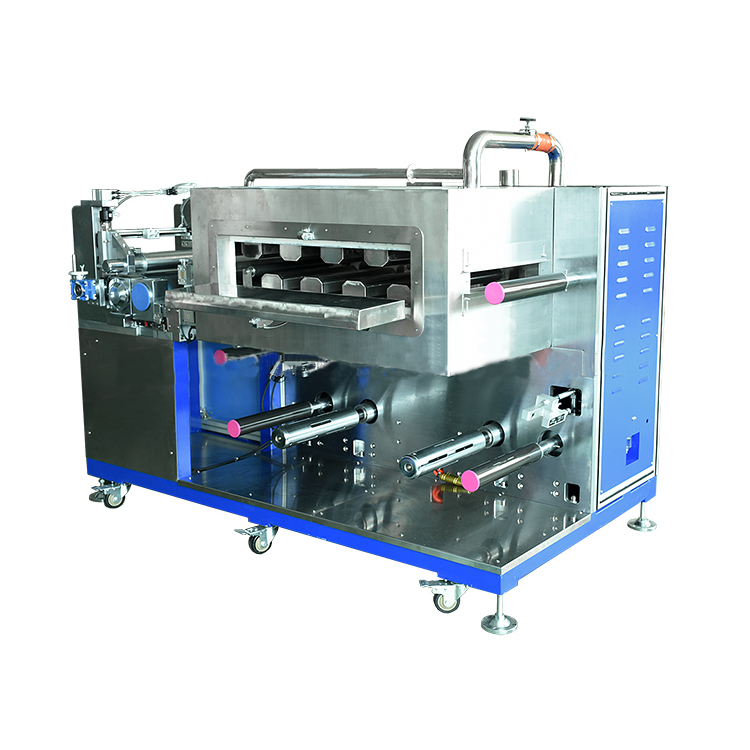

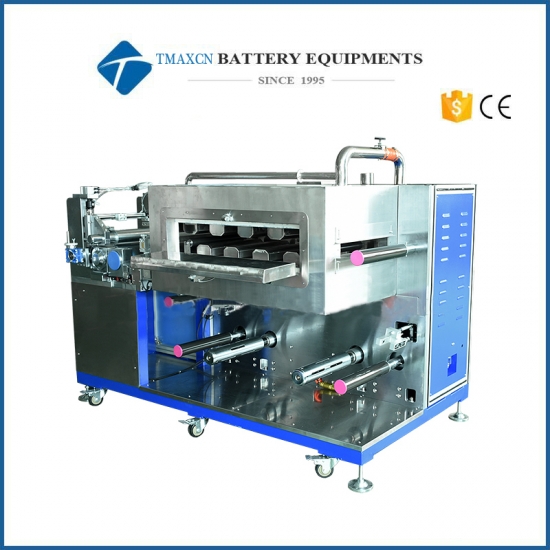

Roll To Roll Transfer Coater Reverse Comma Coating Machine with Drying Oven


Intermittent experimental coating machine is a three-roller transfer coating equipment. It can carry out continuous and intermittent coating, which is convenient to be applied to the equipment for surface coating process of various substrates. Especially used in the lithium ion battery industry. The equipment is designed to be convenient for researchers to use while meeting the requirements of coating accuracy and consistency, which is no different from production. The drying effect is excellent, and it is an ideal choice for the research and development and small tests of lithium ion batteries, super capacitors, nickel batteries and other secondary batteries.

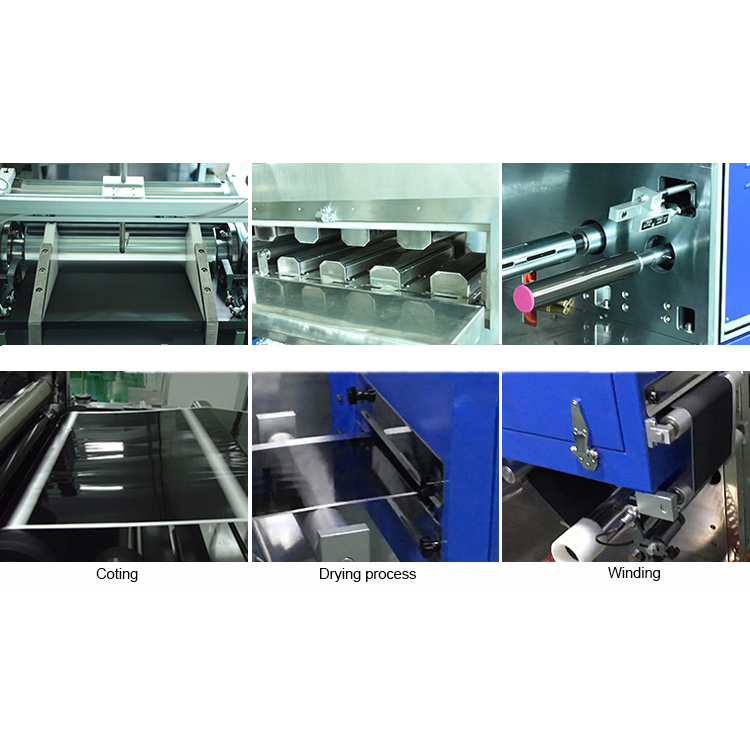

Characteristic

*Substrate tension control, stable belt, configuration of correcting device;

*Hot air oven, double-sided airing on the top and bottom, good drying effect;

*Three-roll transfer coating with a wide coating window;

*Comma scraper metering, with precision adjustment mechanism, to achieve high coating accuracy;

*PLC control, touch screen operation, easy to use;

*Optional solvent recovery treatment device;



Equipment technical parameters and main equipment configuration

1)Main equipment configuration

NO.

Item

Technical parameters

1.

Suitable for system

Ternary, lithium iron phosphate, lithium cobaltate, lithium manganate, graphite, silicon carbon and other system battery positive and negative electrode

coating process

2.

Coating type

Continuous coating

3.

Oven section number

1 section 1 meter oven

4.

Coating speed

0~0.5m/min

5.

The substrate thickness

Aluminum foil (Al) : 8 ~ 30um copper foil (Cu) : 8 ~30um

6.

Design width of roll surface

330 mm

7.

Ensure coating width

within 280mm

8.

Coating roller, cots

Φ120mm

9.

Presser roll

Φ80mm

10.

Precision coating

±3um

11.

Weight  precision(mg/cm2)

Coating center value±1.0%

12.

Suitable for paste viscosity

2000~12000 (mPas)

13.

One side dry coating thickness range

20-200μm

14.

The solvent properties

Oily solvent NMP (s.g=1.033,b.p=204℃)

Aqueous solvent H2O/NMP(s.g=1.000,b.p=100℃)

15.

Suitable for solid content range

20~85%

16.

Coating size accuracy(mm)

L≤±1 W≤±0.5

17.

Precision of front and back alignment (mm)

L≤±1 W≤±0.5


2) Integral unwinding, head mechanism:

NO.

Iten

Technical parameters

1.

Roller mounting structure

Install the steel frame firmly

2.

Roll surface treatment

Metal aluminum roll surface oxidation

3.

Tension control system

Automatic control constant tension, tension range 0~50N, servo motor control

4.

Rectify way

Automatic EPC control, stroke 50mm

5.

Winding mode

The material coil is fixed with 3-inch air expansion shaft and air expansion shaft;

Single air expansion axis for unwinding

6.

Maximum unwinding diameter

Ф250mm

7.

Maximum load bearing of gas expansion axis

80Kg

8.

The number of air-expanding shafts

1

9

Main drive motor

Servo motor

10

Roll surface treatment

Metal aluminum roll surface oxidation

11

Doctor blade

Double-sided comma doctor blade

12

Coating roller (steel roller)

Hard chrome plating

13

Back roll (cots)

The surface is covered with imported epdm

14

Adjust blade clearance height

Manual setting

15

Single head position

Installation and operation before drying path



3)Oven

NO.

Item

Technical parameters

1.

Oven structure

Double layer independent heating, upper and lower arrangement

2.

Oven length

1m/section

3.

Material

SUS304 stainless steel

4.

Temperature control

Divided into normal working temperature control, overtemperature monitoring and alarm protection control, and cut off the main heating power supply; The paragraphs are completely independent of each other

5.

Heating Mode

Electric heating, hot air circulation structure

6.

Single section oven heating power

6KW

7.

Inside temperature of Oven

Design Max. 150℃, single section oven temperature difference ≤±2.5℃

8.

Blowing way

Upper and lower air blowing, upper and lower air chamber share heating body

9.

Structure of the wind

Special mold is used to cut the air nozzle groove

10.

Fan control

Contactor control

11.

Heating control

Solid-state relay

12.

The fan material

SUS304 stainless steel

13.

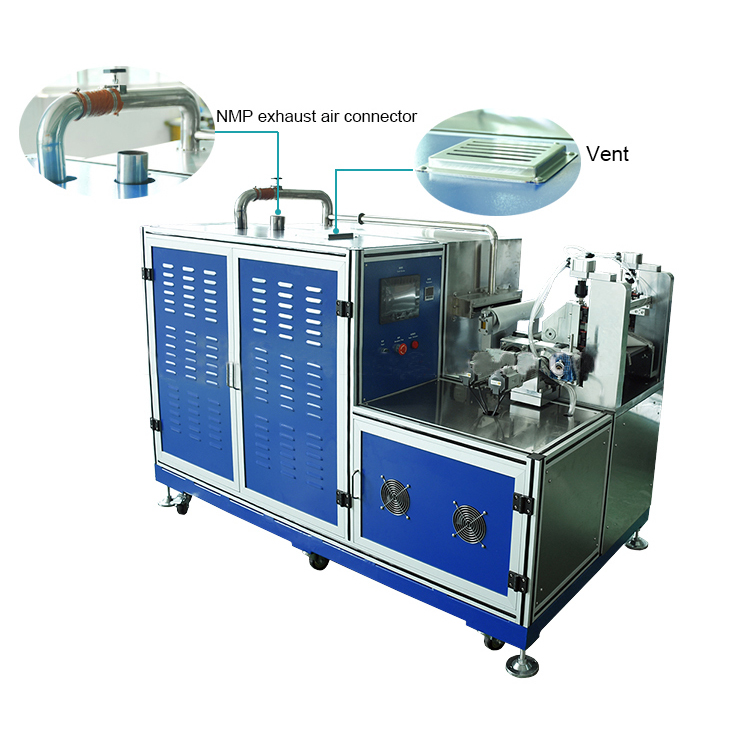

Solvent recovery system

Optional



4)Winding mechanism: it has the same function as unwinding, as follows

NO.

Item

Technical parameters

1.

Rectifying marching

Installation of drying outlet

2.

Tension

Automatic control of constant tension

3.

Installation structure

Install the steel frame firmly

4.

The number of winding gas expansion axis

1

One-armed winding



5)Control system

NO.

Item

Technical parameters

1

Master control system

Touch screen, PLC, servo system

2

Mode of operation

Manual, automatic, emergency stop; The whole machine can be operated before and after

3

Alarm condition

When the device fails, the touch screen will display the corresponding correction screen



6)Hardware accuracy

NO.

Item

Technical parameters

1.

Scraper

Circular jump ≤±1.5um, Ra0.4, straightness ≤±1.5um

2.

Coating roller(steel roller)

Circular runout ≤±1.5um, Ra0.4 straightness ≤±1.5um

3.

Rubber roll

Circle runout ≤10um, straightness ≤10um

4.

Rectifying deviation

±0.2mm



7)Installation environment requirements

1)The ambient temperature of the machine head is 25~30°C, and the rest is 10~40°C;

2)The relative humidity of the machine head is RH ≤ 35%, the negative electrode RH ≤ 98%, and the rest ≤ 98%;



8)Supporting facilities

1)Power supply: 3PH 380V, 50HZ, voltage fluctuation range: +8%~–8%; power supply total power 10KW;

2)compressed air: after drying, filtering and voltage regulation: the outlet pressure is greater than 5.0kg/cm2



Intermittent Coating Machine




 battery equipment


1.  We supply machines with battery technology support.

2.  We supply full set of lithium battery equipment for lab research, pilot scale research and production line.





1 Standard exported package : Internal anticollision protection, external export wooden box package
2 Shipping by express, by air, by sea according to customer's requirements to suggest the most suitable shipping mode
3 Responsible for the damage during shipping process, change the damage part for free
4 Supply with suitable voltage input and power plug according to customer's country requirements.
5 Supply with CO, ECO, FORM A, FORM E and any other original certificate for import custom clearance and tax relief.
