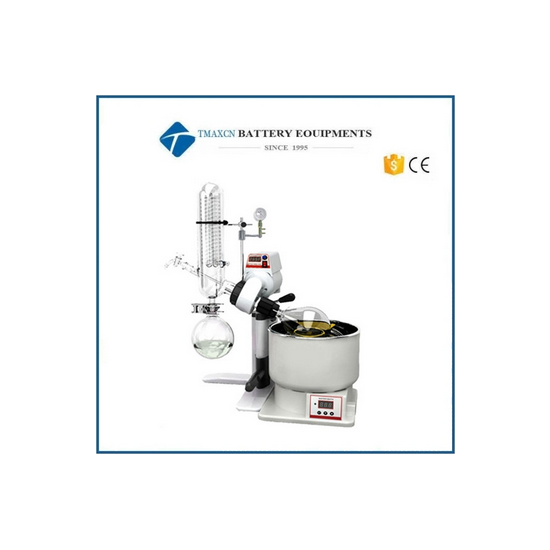

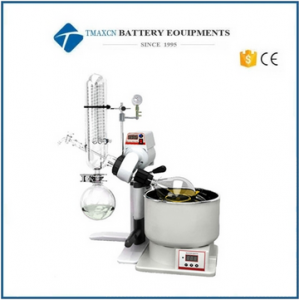

Rotary Evaporator with 0.5-Gallon/2L
Model Number:
TMAX-2L-1Compliance:
CE certificateWarranty:
1 year limited warranty with lifetime supportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 days
Rotary Evaporator with 0.5-Gallon/2L
A rotary evaporator is a device used in chemical laboratories for the efficient and gentle removal of solvents from samples by evaporation. The process of rotary evaporation is most often used to separate solvents with low boiling points, such a n-hexane or ethyl acetate, from compounds which are solid at room temperature and pressure. However, careful application also allows for the removal of a solvent from a sample containing a liquid compound, if there is minimal co-evaporation (azeotropic behavior) and a sufficient difference in boiling points at the chosen temperature and reduced pressure.

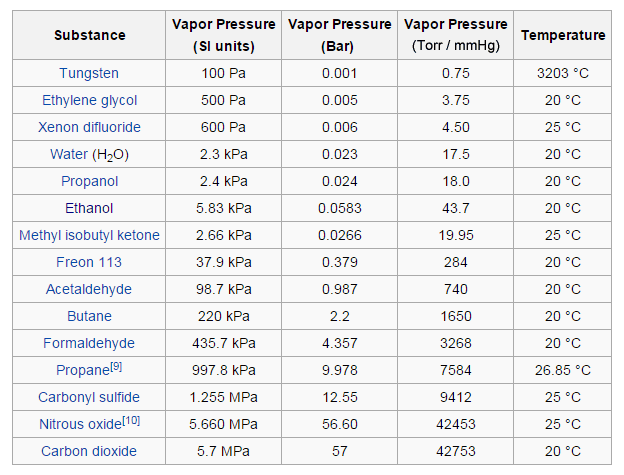

Example: The following table is a list of a variety of substances ordered by increasing vapor pressure (in absolute units).

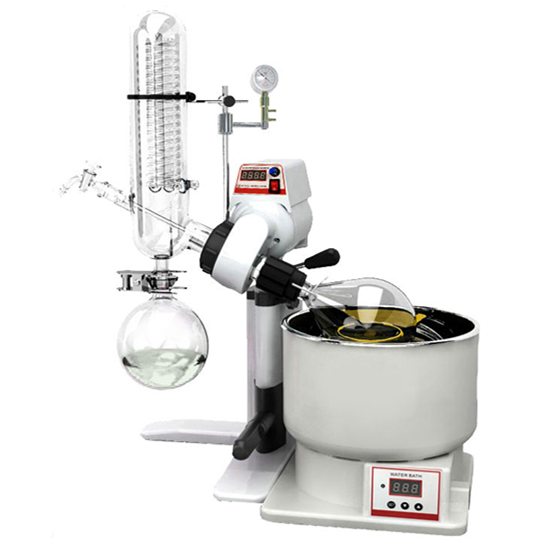

Ai SolventVap 0.5-gallon/2L (evaporating flask capacity) series rotary evaporators come with a modular heating bath, vertical glassware, and digital temperature/rotation control. Its optimized bath volume allows for rapid heat-up times. The condenser unit has specially designed glass tubes that utilize surface area extremely efficiently. That’s why our SolventVap evaporators consistently deliver reliable and reproducible process results that are usually reserved for more costly systems. Another important aspect of the SolventVap is the safety features, which includes dry-run protection, water bath over-temperature shut-off protection, and fuse protection.
Rotary
evaporator features a specially designed motor and worm gear, which
provides constant rotation at speeds from 10 to 180 rpm. As the flask
containing the solvent is rotated, it continually transfers a thin layer of
liquid over the entire inner surface. This gives a very large surface area for
evaporation, which is caused by the gentle heating from the water bath. The
rotating system is fitted with a special seal that allows the apparatus to be
placed under vacuum, effectively reducing the boiling point of the solvents and
removing the vapor phase, making the process much more efficient. Each unit is
also equipped with an easy-to-use vacuum release and a continuous feed system,
which allows solvent to be constantly drawn into the rotating flask without
needing to stop the operation.
Digital water bath operates from ambient temperature to
99°C (210°F) with PID temperature control stepping at 0.1°C increments. Heating
coils are located directly inside the pan for the most efficient heating
possible. A built-in overheat protector will shut down power, should the controller
fail.
Standard Glassware Set 0.13 gallon (0.5L), 0.26
gallon (1L) or 0.53 gallon (2 liters) pear shaped evaporating flask, 0.26
gallon (1 liter) round-bottomed receiving flask, and vertical
condenser. Rotary evaporators with vertical glass condenser are great for
distillation of solvents with higher boiling points.
Features
· UL 61010-1 and CSA C22.2 certified, standard
· Solvent-resistant PTFE and Viton gaskets ensuring long time operation.
· Specialized motor with extremely compact, intermeshed worm and worm gear provides precise driving for very quiet, vibration-free operation.
· Downward-condensing vacuum connection design ensures safe vacuum operation.
· Modular design (individual rotary and water bath modules) for easy future upgrades.
· Easy multi-level manual lift with secure lock for the evaporating flask.
· Easy, straight-forward visual operation with digital speed and temperature display.
· PID temperature controller ensures accurate temperature control is maintained.
Your safety is important to us! Please use caution when operating. Users of glass reaction equipment must take all necessary precautions to avoid contact with rotating parts, particularly entanglement of loose clothing, hair, necklaces, or other jewelry. Under these circumstances, the winding action of the rotating parts can draw the user(s) into the apparatus, resulting in breakage of glassware, burns, and/or chemical exposure. Extra caution must also be taken when operating with air-reactive materials, especially under vacuum. A leak can draw air into the apparatus and cause a violent reaction to occur.
Specifications
Electrical requirements |
110V 60Hz single phase, 9.8A, 1075 watts (heater: 1050 watts, rotation motor: 25 watts) |
Glass material |
High borosilicate glass 3.3 |
Evaporating flask |
Capacity:
0.13 gallon (0.5L), 0.26 gallon (1L) or 0.53 gallon (2L) |
Receiving flask |
0.26 gallon (1L) |
Condenser |
Glassware:
Vertical with dual-spiral glass tubing |
Working environment |
5 to 95°F |
Water bath |
Temperature
range: ambient to 99°C (210°F) |
Vacuum |
Connection:
3/8" hose barb x 1 (on condenser) |
Safety |
Dry-run, over-temp shut-off, fuse protections |
Unit/shipping weight |
|
Unit/shipping dimensions |
22 x 12.5 x 26" / 24 x 24 x 25" (WxDxH) |
Warranty |
One
year warranty on unit except glassware and all sealing gaskets. |
Compliance |
UL, CSA |
Standard package

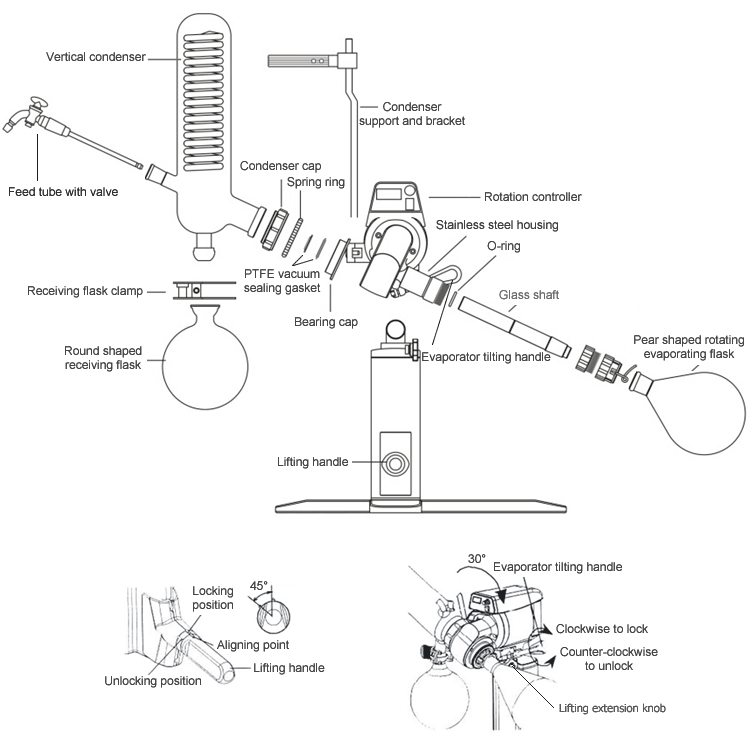

Part description |
Quantity |
Evaporator body |
1 pc |
Water bath |
1 pc |
Vertical condenser with 2 chilling water ports and 1 vacuum port, glass |
1 pc |
2L pear shaped evaporating flask, glass |
1 pc |
0.26G/1L round shaped receiving flask, glass |
1 pc |
Glass vapor duct with seal |
1 set |
Material feeding tube with valve, glass |
1 pc |
PTFE extension feeding hose |
1 pc |
PTFE vacuum sealing kit |
1 set |
Condenser cap kit |
2 pcs |
Glass shaft cap and evaporator flask quick-release |
2 pcs |
Condenser support and bracket |
1 pc |
Condenser support securing screw |
1 pc |
Receiving flask ball joint clamp |
1 pc |
GL14 connector |
3 pcs |
3-prong 110V US power cord for evaporator |
1 pc |
Phillips screw driver |
1 pc |
Mechanical vacuum gauge |
1 pc |
User's manual |
1 pc |
