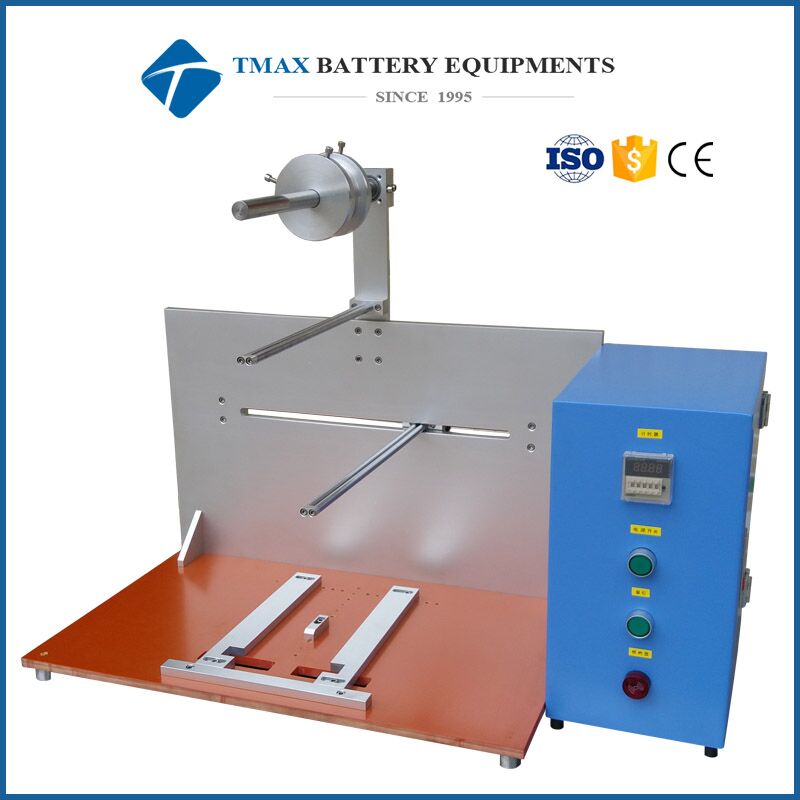

Semi-auto Battery Electrode Stacker Machine For Pouch Cell Electrodes
Model Number:
TMAX-DP200Type:
Electrode Stacker MachineDimension(L*W*H):
L(0-200)mm, W(0-200)mmNet Weight:
42kgCompliance:
CE certificateWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days

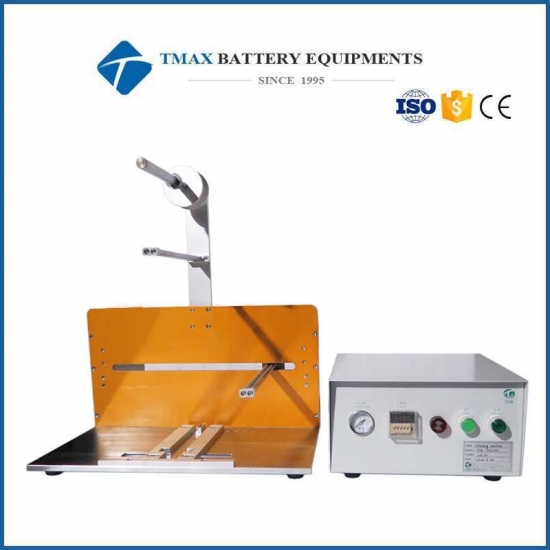

Semi-auto Battery Electrode Stacker Machine For Pouch Cell Electrodes
1 TMAX-DP200 Battery stacking machine is a semi-automatic
stacking machine. It is an ideal tool for
stacking multiple layers of positive & negative electrode and separator for
pouch cell.
2 The battery
stacking machine is used for lithium
battery stacking process, put the cathode, anode electrode and battery
separator Z shaped lamination.
|
Model |
Battery Stacking Machine TMAX-DP200 |
|
Voltage supply |
AC 110v-220V Customized by requirements, 50HZ±10% |
|
Power |
100W |
|
Warranty |
Two Year limited warranty with lifetime support |
|
Stacking Layer Length |
L(0-200)mm, W(0-200)mm |
|
Max separator feeding diameter |
Φ250mm |
|
Fixed travel distance |
400mm |
|
Travel cycle |
1 - 9999 cycles |
|
Air supply |
0.25-0.55MPa (40 - 80 psi) |
|
Machine dimension(L*W*H) |
650*400*700mm |
|
Controller dimension(L*W*H) |
200*300*380mm |
|
Weight |
42kg |
|
Package size for stacking machine |
660*740*430mm |
|
Package size for control box |
470*330*520mm |
