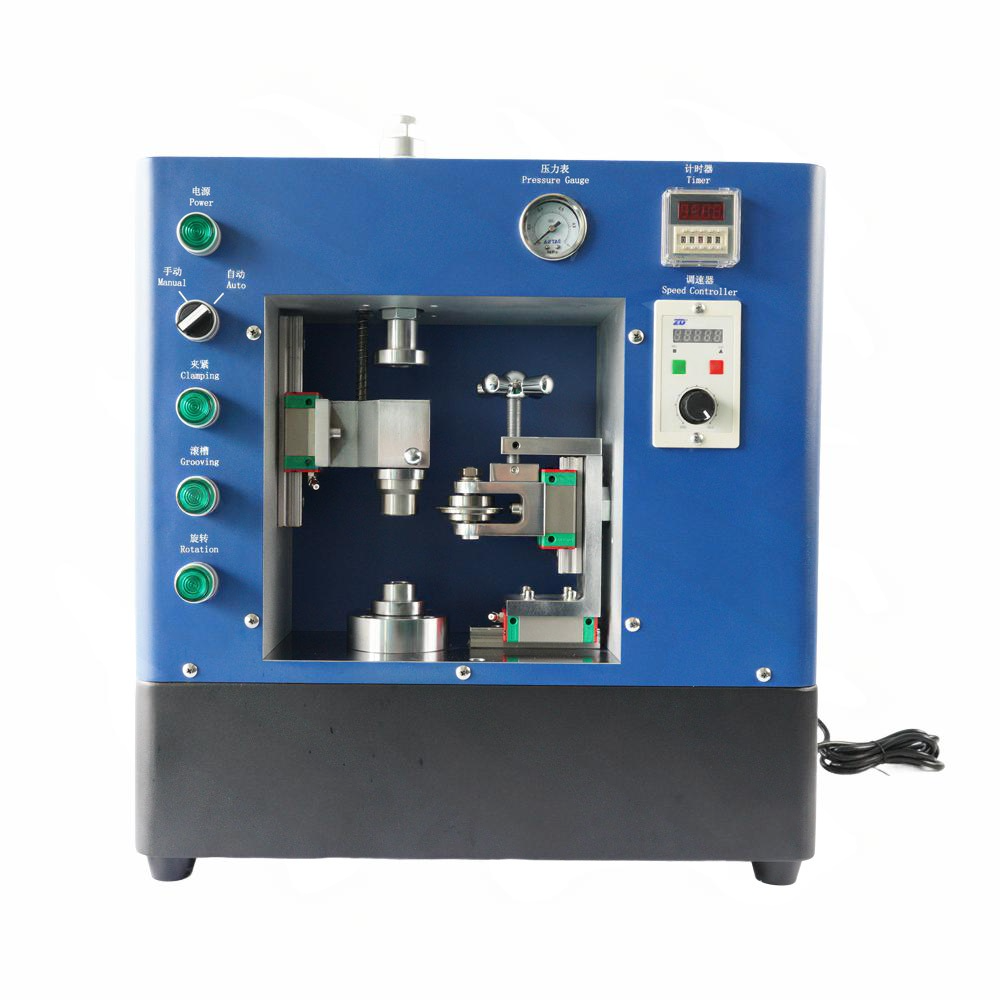

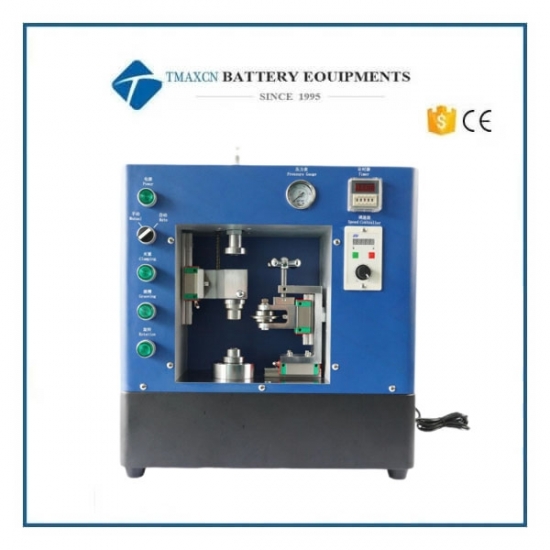

Semi-Auto Vertical Grooving Machine for Cylindrical Battery
Model Number:
TMAX-GC650LCompliance:
CE CertifiedWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western Union
Semi-Auto Vertical Grooving Machine for Cylindrical Battery
Application

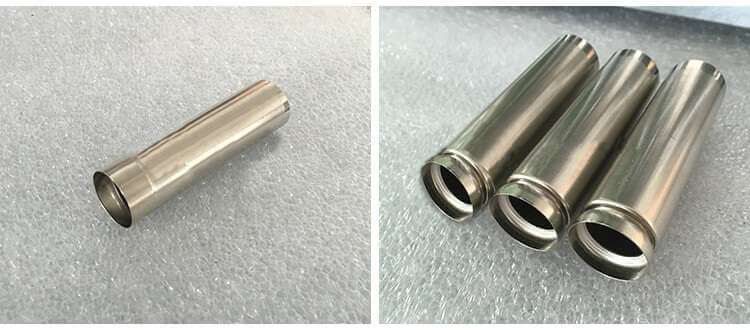

The TMAX-GC650L is a semi-automatic vertical cylindrical battery grooving machine specially designed for cylindrical battery production. It is primarily used to form sealing grooves on the battery casing, ensuring tight fitting between the battery cover and shell and enhancing sealing performance and overall safety.
Key Features
· Flexible compatibility: Supports multiple cylindrical cell specifications, with adjustable parameters to meet diverse production needs.
· High precision and efficiency: Grooving precision of ±0.1mm, with a throughput of up to 400 cells/hour, suitable for efficient mass production.
· Stable and reliable: Made with high-quality materials and components, ensuring long-term operational stability.
· User-friendly operation: Manual loading of batteries; grooving is automatically completed by the machine.
Technical Specifications
|
Parameter |
Specification |
|
Grooving Depth |
1.2–2.0mm (adjustable) |
|
Grooving Width |
1.1–1.5mm (depending on cutter thickness) |
|
Machining Accuracy |
±0.1mm |
|
Grooving Blade Lifespan |
> 1 million cycles |
|
Production Capacity |
400 cells/hour (semi-automatic) |
|
Power Supply |
AC220V / 50Hz |
|
Power Consumption |
140W |
|
Compressed Air |
0.5MPa ~ 0.7MPa |
|
Machine Dimensions |
L490mm × W230mm × H560mm |
|
Net Weight |
40kg |
