Semi-Automatic Cylindrical Cell Winding Machine For Battery Production

  • Model Number:

    TMAX-YS-BLY40
  • Type:

    Electrode Winding Machine
  • Input Power:

    1kw
  • Net Weight:

    550kg
  • Compliance:

    CE certificate
  • Warranty:

    Two year limited warranty with lifetime support
  • Payment:

    T/T, Credit Card, Paypal, LC, Western Union
  • Delivery Time:

    3 days
contact now

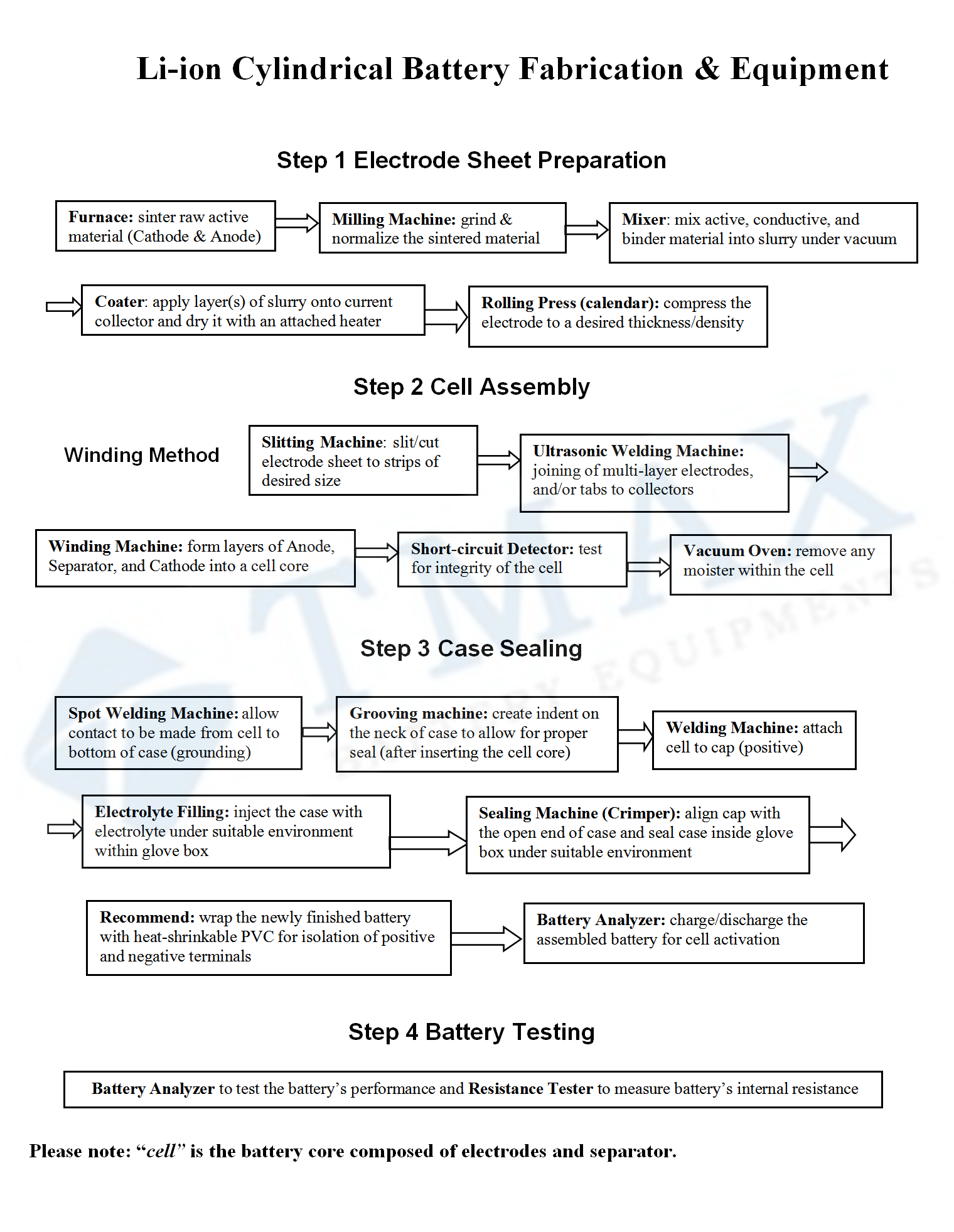

DESCRIPTION






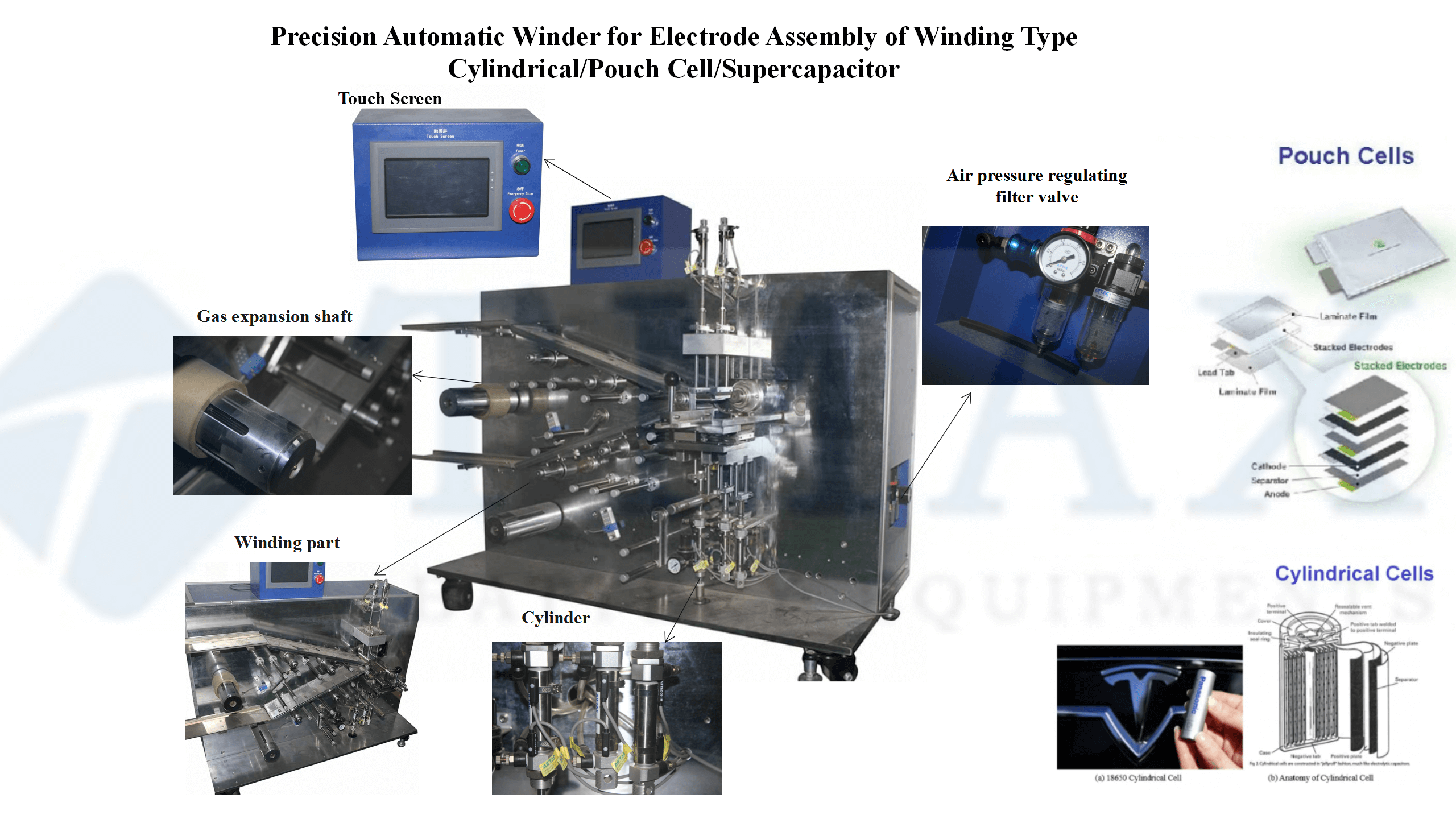

Semi-Automatic Cylindrical Cell Winding Machine For Battery Production


TMAX-YS-B a new semi-automatic winding machine for accurate assembly of flat pouch cell electrode core. The separator film is sandwiched between the cathode and anode materials and then rolled up into a Prismatic pouch cell core at constant tension force. This is an ideal tool provides the reliability and precision to produce high-quality windings of electrode cores.


Outstanding Features

·        PLC Touch Screen Control

·        Unreeling rotors for separator film feeding

·        Passive tension control; tension is adjustable

·        Automatic finish cut after the completion of jelly roll winding


Specification


Model

YS-BLY80

  YS-BFX130

YS-BFX180

Cathode / Anode Winding

·    Cathode: Aluminum foil coated with an active material such as LiFePo4, LiCoO2, and so on...

·    Anode: Copper foil coated with graphite

·    Thickness Range: 0.1-0.2mm

·    Suggested Overall Length: <2502500mm

·    Maximum Width: 18-80mm

·    Cathode: Aluminum foil coated with an active material such as LiFePo4, LiCoO2, and so on...

·    Anode: Copper foil coated with graphite

·    Thickness Range: 100~300um

·    Suggested Overall Length: <1500mm

·    Maximum Width: 128mm

·    Cathode: Aluminum foil coated with an active material such as LiFePo4, LiCoO2, and so on...

·    Anode: Copper foil coated with graphite

·    Thickness Range: 100~300um

·    Suggested Overall Length: <1500mm

·    Maximum Width: 178mm

Separator Winding

·    PP or PE

·    Thickness Range: <0.016-0.045mm

·    Separator roll diameter:300mm

·    Width: 20-80mm

·    PP or PE

·    Thickness Range<100um

·    Max. adaptable size:

·    Thickness: < 10 mm

·    Width:  60 - 130 mm

·    PP or PE

·    Thickness Range<100um

·    Max. adaptable size:

·    Thickness: < 10 mm

·    Width:  60 - 180 mm

Winding Blade Width

30 - 100mm

30 - 100mm

 30 - 100mm

Working Voltage

Single-phase 110-240VAC, 50/60Hz

Max. Power Consumption

1.5KW

Winding Accuracy

Edge Evenness: <0.5mm

Tension Control

<150g adjustable

Winding Speed

0 - 400 RPM adjustable

Feeder Bed

1500mm Long

Compressed Air Requirement

0.7MPa (Please note that an air compressor is needed for the operation of this machine. Air Compressor is NOT included.)

Warranty

Two Years Limited Warranty With Lifetime Support

Compliance

CE certified
