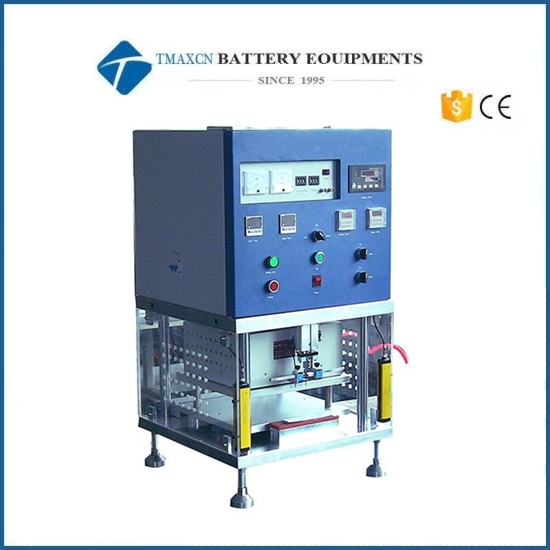

Short Circuit Test System for Pouch Cell Under Variable Pressure 0 - 1ton

Model Number:
TMAX-RYJ-S
Compliance:
CE certificate
Warranty:
Two Year Limited Warranty With Lifetime Support
Payment:
T/T, Credit Card, Paypal, LC, Western Union
Delivery Time:
3 days

contact now

Email : David@battery-equipments.com
Wechat : Wechat 13506084915

DESCRIPTION

Features

Short Circuit Test System allows for testing pouch cell or its battery pack with adjustable temperature and pressure. Such a system has two test methods which are auto-mode and manual-mode. What's more, this machine tests insulation resistance precisely to recognize the micro circuit status of the battery in order to test the safety issue of the battery.

Specification

Features	Adjustable temperature control Adjustable pressure control
Working Voltage	AC220V±10% 50/60Hz
Working Pressure	0~900Kg ±3Kg
Working Distance	0-80mm
Working Temperature	Upper and Lower Platen:130ºC±5ºC Max.
Hot pressing area	200 x 200 mm/300 x 300mm/400 x 400mm optional
Short Circuit	Auto alarm
Testing Input Voltage	DC 0~500V adjustable
Max. Measurable Leakage Current	50 uA
Resistivity Measurement Range	Max. 199MΩ
Testing Period	0~99 Seconds adjustable (2~3 seconds is suggested)
Air Pressure	0.1Mpa~0.7Mpa is suggested.
Yields	<600pcs/hour
Warranty	One year limited manufacturer's warranty with lifetime support; extended warranty available upon request at additional cost.
Dimensions	500L×500W×1025H mm
Weight	220KG
