Supercapacitor Tab Eyelet Machine
Model Number:
TMAX-YM60-CQCompliance:
CE certificateWarranty:
1 year limited warranty with lifetime supportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 days

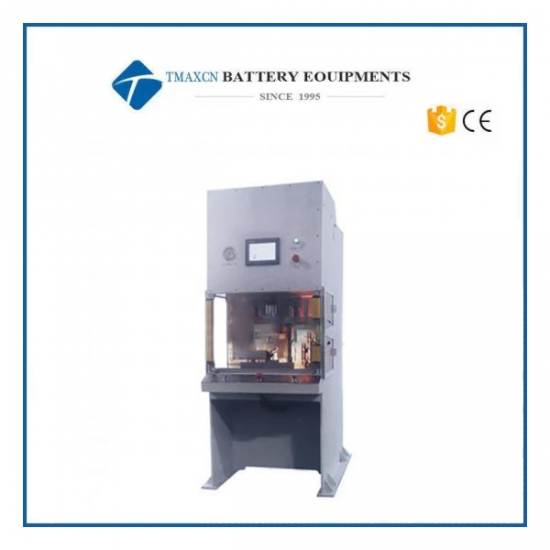

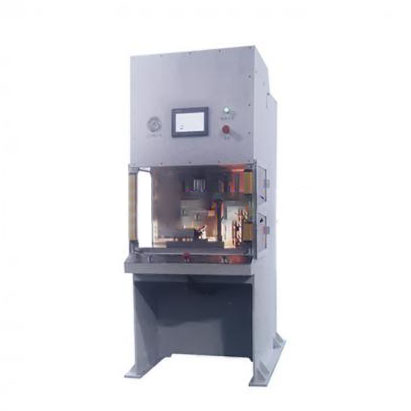

Supercapacitor Tab Eyelet Machine
Functional overview
The device is suitable for the punching and trimming operation of quadrate supercapacitor and lithium ion power battery tab.
Functional characteristics
1.Adopt hydraulic system as the punching and trimming power, with big impact, adjustab1e speed and high efficiency.
2.Mould aopts high-strength and high-wear-resistance die steel with good mechanical property.
3.Equipped with high-precision digital sensor to detect the thickness pole ear after punching and trimming.
4.Equipped with the imported two-dimension bar code scanner. Data can be stored and derived,for the convenience of quality control and traceability on product.
5.Equipped with security door and safety protection light grid, with safe and reliable device operation.
6.Adopt the imported PLC. Touch screen displays operation.
Technical parameters
|
Capacity |
0.39~0.6ea/s |
|
Punching diameter |
φ6.5mm±0.05mm(customized) |
|
Unipolar ear piercing |
2pcs |
|
Punching and shearing localization accuracy |
±0.2mm |
|
Hole punching and shearing burrs |
≤13pm |
|
Hole punching and shearing thickness |
3~5mm |
|
Power source |
AC380V(±10%) 50Hz |
|
Power |
6kW |
|
Overall dimensions (LxWxH) |
830x860x2970mm |
|
Weight |
800kg |
