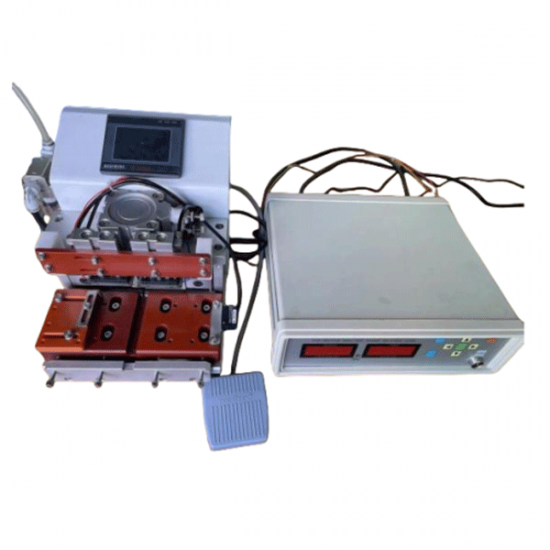

Tabs Cutting and Testing Machine for Polymer Pack Assembling
Model Number:
TMAX-MYG-1CCompliance:
CE CertifiedWarranty:
Two Year Limited Warranty With Lifetime SupportPlace of Origin:
China:
XiamenPayment:
T/T, Credit Card, Paypal, LC, Western Union
Tabs Cutting and Testing Machine for Polymer Pack Assembling
Introduction
1. The equipment is small, easy to operate and the failure rate is ultra-low.2. The machine solves the problem of cutting short circuit of positive and negative poles of polymer built-in battery at the same time.
3. It is used for cutting the length of positive and negative poles and tabs before welding the protective plate of polymer built-in battery (including mobile phone electricity, mobile power supply, power battery, etc.),
4. The voltage internal resistance test function of the cell is added. If the test value is within the set value range, the device will cut. If the test value is not within the set value range, it will not cut.
Technical parameters:
|
Power Supply |
220V 50Hz 30W |
|
Air Pressure |
0.4-0.8MPa |
|
Applicable Battery Range |
Polymer Cell |
|
Maximum Center Width of tab |
140mm |
|
Minimum Center Width of tab |
4mm |
|
Minimum Length of tab |
3mm |
|
Cell Length |
30-200mm |
|
Cell Width |
20-160mm |
|
Cell Thickness |
2-12mm |
|
Overall Dimension |
230*180*200mm |
|
Weight |
8KG |
