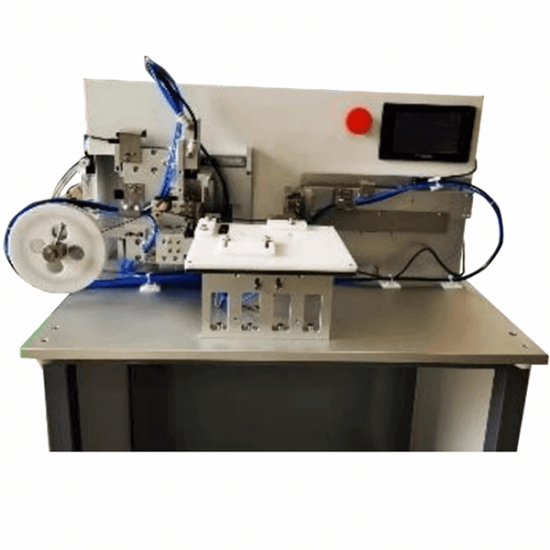

Tape/Glue Winding Machine for Polymer Battery Protection Plate
Model Number:
TNAX-MYG-5Compliance:
CE CertifiedWarranty:
Two Year Limited Warranty With Lifetime SupportPlace of Origin:
China:
XiamenPayment:
T/T, Credit Card, Paypal, LC, Western Union
Tape/Glue Winding Machine for Polymer Battery Protection Plate
1. The equipment is simple and easy to learn, easy to operate, ultra-low failure rate and very energy-saving.
2. The machine solves the rubber winding process of the head of the polymer built-in battery protection plate, with good consistency, improving efficiency and saving labor cost.
3. It is used to wrap glue around the head of polymer built-in battery protection board (including mobile phone power, mobile power supply, digital battery, etc.)
Technical parameters:
|
Power Supply |
220V 50Hz 30W |
|
Air Pressure |
0.4-0.8MPa |
|
Applicable Battery Range |
Polymer Cell |
|
Gluing Length |
30-140mm |
|
Gluing Width |
6-16mm |
|
Cell Thickness |
3-8mm |
|
Capacity |
800-1200 times/h |
|
Overall Dimension |
600*500*400mm |
|
Weight |
50KG |
