The Adhesive Tape For Lithium Battery
Model Number:
TMAX-STCompliance:
CE certificatePayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 days

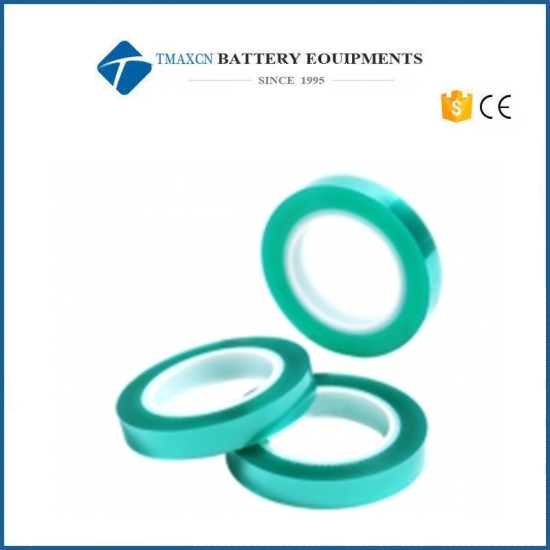

The Adhesive Tape For Lithium Battery
The Adhesive Tape for the Packing of Lithium Battery is made of PET film backing and single side coated with acrylic adhesive. It’s provided with high performance in electrical insulation and heat-resistance, excellent adhesion and can be easily peeled off without residue. The material is environmental friendly and ROHS complied.
Used on parts of lithium battery and for adhesion, packing, wrapping and holding purposes on battery assembling process.
|
Item |
TOB-0030PAP |
TOB-0035PAP |
TOB-0050PAP |
TMAX-0055PAP |
|
Backing |
PET |
PET |
PET |
PET |
|
Adhesive |
Acrylic |
Acrylic |
Acrylic |
Acrylic |
|
Total Thickness(mm) |
0.030 |
0.035 |
0.050 |
0.055 |
|
Color |
Clear/Black |
Clear/Black |
Dark Green/Blue/Yellow/Amber |
Dark Green/Blue/ Yellow/Amber |
|
Peel Adhesion （N/25mm) |
1.5-2.5 |
2.5-3.5 |
6-8 |
6-8 |
|
Tensile strength （N/25mm) |
50 |
80 |
85 |
95 |
|
Breakdown Voltage（KV） |
3.5 |
3.5 |
5 |
5 |
|
Unwind Force |
Light |
Light |
Medium |
Light |
|
Standard Width(mm) |
Customized |
|||
|
Standard Length(Meter) |
100/200 |
|||
