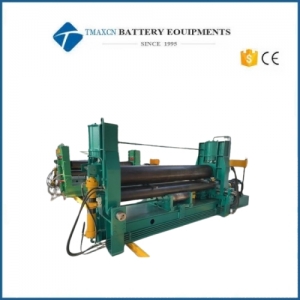

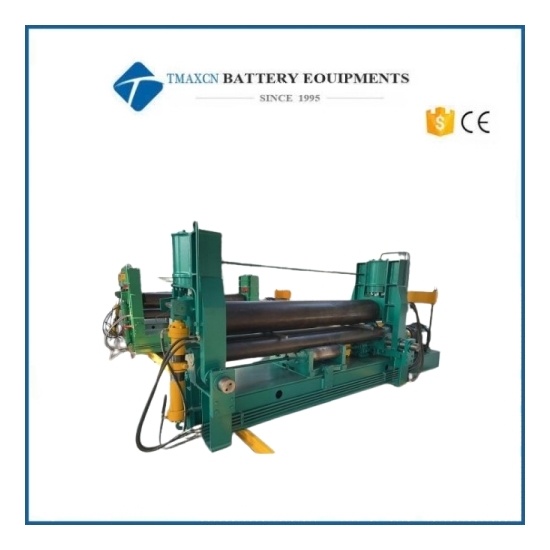

Three-Rollers Hydraulic Metal Plate Rolling Press Machine With Adjustablet Temperature Control System

Three-Rollers Hydraulic Metal Plate Rolling Press Machine With Adjustablet Temperature Control System

Introduction

The plate rolling process of a plate rolling machine is a continuous three-point bending process of the plate. According to the different rolling temperatures, it can be divided into cold rolling, hot rolling and warm rolling. It is mainly a mechanical equipment that bends metal plates of a certain thickness into cylindrical, arc-shaped, rectangular and other curvatures or variable curvatures. It is one of the essential mechanical equipment in the metallurgy, building materials, petroleum, chemical, water conservancy and power, bridge, military industry, coal, mining, shipbuilding, boiler, aviation, power transmission and transformation equipment manufacturing industries.

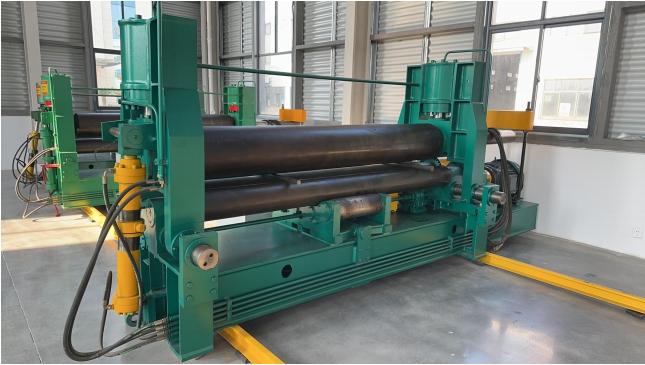

This machine belongs to the hydraulic three-roll plate bending machine, which is used to complete the pre-bending, rolling and straightening of the plate ends of various container carbon steel and low alloy steel plates without turning at room temperature after one feeding.

The upper roller can move vertically or horizontally.

Pre-bending is achieved by the horizontal movement of the upper roller, causing it to be in an asymmetrical position relative to the lower roller.

The rounding process is carried out by the motor and the reducer driving the two lower rollers.

Since the elevation of the lower roller remains unchanged, it is convenient for feeding and operation.

Provide a detailed electrical schematic diagram. Electrical wiring must be strictly carried out in accordance with the drawing. The numbers at both ends of each connection are clear and complete. The terminal blocks of the wires are marked with the same wire number as the connection number, and corresponding marks are made on the electrical wiring diagram and schematic diagram.

All the electrical components used in the equipment are high-quality products from well-known enterprises. Electrical protection devices (such as current relays, air switches, etc.) are strictly tested before installation to ensure reliable operation.

The equipment operates smoothly, with flexible control, no jamming, oil leakage or abnormal noise. The tipping frame adopts hydraulic tipping, which is relatively fast.

The vertical displacement of the upper roller is driven by hydraulic power, while the horizontal movement is driven by mechanical power.

The equipment has high reliability and a low failure rate.

Technical parameter
