Two Roll Calender Roller Heat Transfer Machine For Lithium Batteries
Model Number:
TMAX-YXY-C3385Dimension(L*W*H):
Diameter 100/200/300Net Weight:
320kg.Warranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Wechat:13506084915

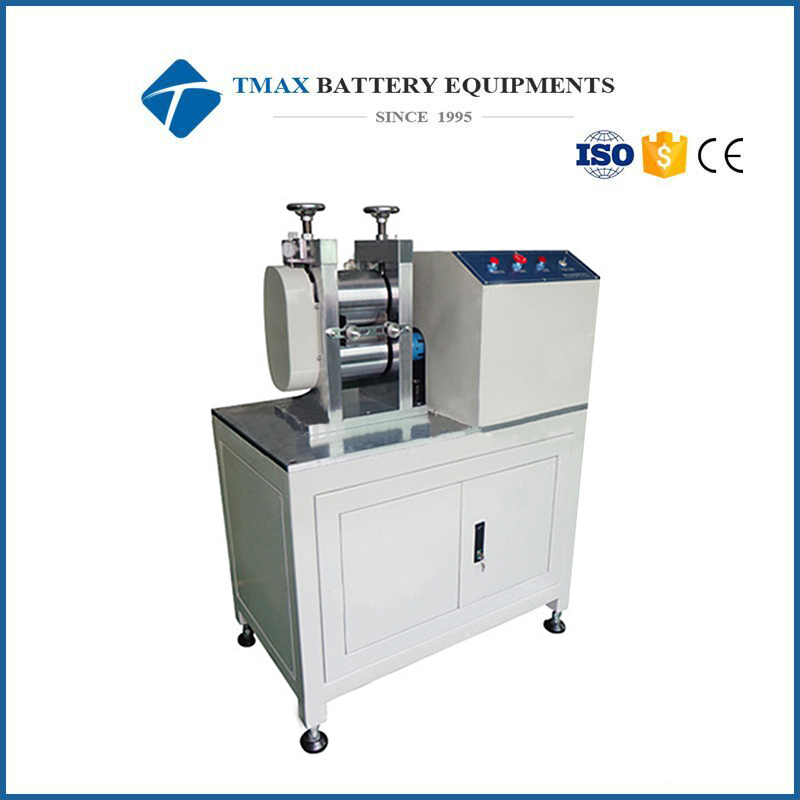

Two Roll Calender Roller Heat Transfer Machine For Lithium Batteries
TMAX-YXY-C3385 Rolling machine through mechanical transmission, using two vertical pair of rolles way,
carried on the roll pressing,tablet thickness can be adjusted, the roller speed is adjustable, adapted
to lithium batteries, nickel hydrogen batteries, capacitors pole piece repression,the roller surface hard chrome plated,
the hardness up to HRC62 or more, the product compact structure, smooth rolling, easy to operate.
|
Power Supply |
AC 380 / 50Hz ,3KW |
|
Rotational speed |
4 ~ 9r / min (adjustable) |
|
Roll working face width |
160mm, roller diameter φ150mm (Customized according to customer requirements) |
|
The roll gap |
0 ~ 2mm (adjustable) |
|
The pressure roller surface roughness |
0.8um, precision:± 0.005mm |
|
Dimensions (L * W * H) |
1350 * 700 * 1500mm |
|
Machine weight |
220KG |
