Ultrasonic Metal Welder for 1-40 layers stacked electrode sheets (Cu&Al)
Model Number:
TMAX-DH1000Dimension(L*W*H):
Welding Area: 6mm*6mmCompliance:
CE certificateWarranty:
1 Year with lifetime supportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 days

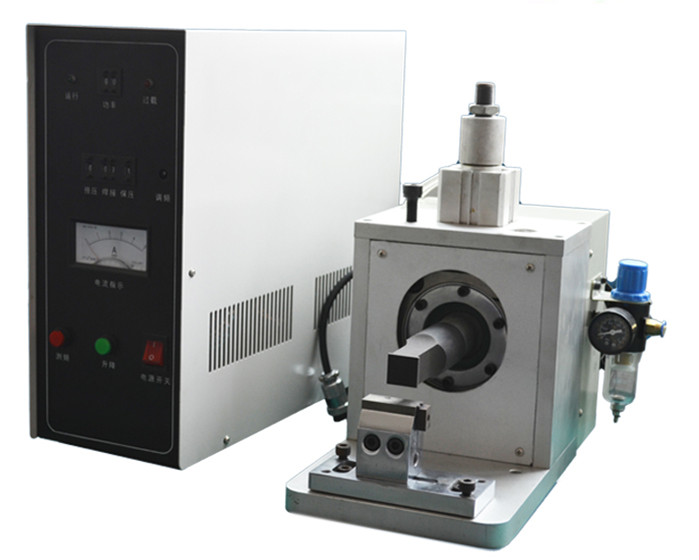

Ultrasonic Metal Welder for 1-40 layers stacked electrode sheets (Cu&Al)
The welder is a CE Certified ultrasonic metal welder designed for welding stacked electrode sheets (Copper & Aluminum)
and tab onto current collectors to prepare Li-Ion pouch cells in R&D laboratories.
1-40 layers electrode sheets welder
SPECIFICATIONS:
|
Input Voltage |
110V AC or 240V AC 50/60Hz |
|
Max. Power Consumption |
3000W |
|
Welding Area6 |
6mm(L) x 6mm(W) It can be customized |
|
Welding Head |

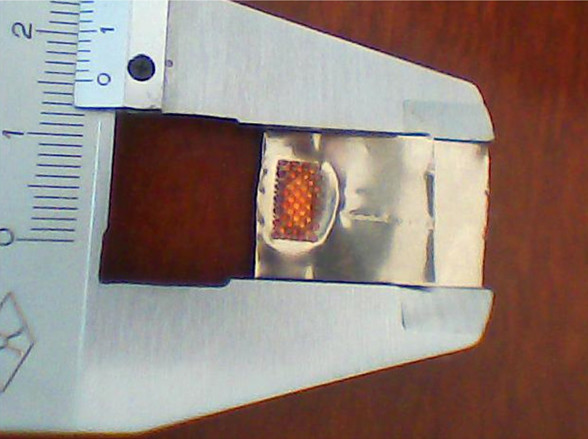

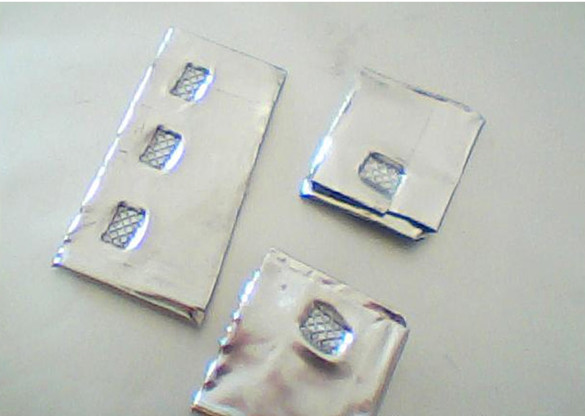

.Two welding heads and three welding bases are included for welding both aluminum & copper current collectors from 2 to 25 layers .Two types of patterns for various uses: |
|
Ultrasonic Frequency |
30 - 40 kHz Adjustable frequency |
|
Pneumatic Control |
Air pressure at 85 psig (Air Compressor is not included) |
|
Product Dimensions |
· Controller: 365mm(L) x 485mm(W) x 200mm(H) Welder: 300mm(L) x 460mm(W) x 275mm(H) |
|
Compliance |
CE Certified |
|
Warranty |
One Year limited warranty with lifetime support |
|
Net Weight |
61 kg (135 lbs) |
