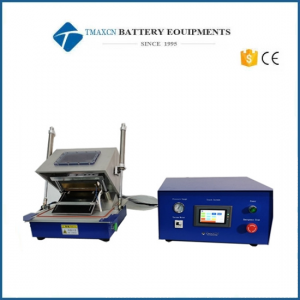

Vacuum Sealing Machine for Preparing Pouch Cell With Optional Top/Side Sealing

  • Model Number:

    TMAX-YF
  • Type:

    Vacuum Sealing Machine
  • Dimension(L*W*H):

    200-400mm Width It can be customized
  • Net Weight:

    60KG
  • Compliance:

    CE certificate
  • Warranty:

    Two Year Limited Warranty With Lifetime Support
  • Delivery Time:

    3 days
contact now
DESCRIPTION

Vacuum Sealing Machine for Preparing Pouch Cell With Optional Top/Side Sealing


This equipment is mainly suitable for vacuum pumping and hot pressing pre sealing of flexible sealing lithium battery after liquid filling and standing; the machine can automatically complete vacuum thermal sealing of aluminum laminated film of battery by precisely controlling the main vacuum pumping box and pneumatic heat sealing components.


Main features
* the head is made of copper material, which has good heat transfer effect, saves power consumption, improves work efficiency and saves energy compared with similar products;
*The pressure of upper and lower heads can be adjusted by pressure regulating valve to meet the requirements of different process parameters;

*The upper and lower heads are driven by cylinder and guided by two linear guide sleeves, which can move up and down flexibly and guide accurately

Ensure the requirement of parallelism after edge sealing;

*Through the perspective window, we can observe the changes in the cavity when working.
*The cover cavity is driven by cylinder and guided by rotating guide sleeve, which can move up and down flexibly and guide accurately to ensure the sealing requirements of products.
*It can be used for batteries of different specifications, and the adjustment is simple and convenient.
*The main engine and control box are designed separately, so that the machine can work in glove box or on assembly line.

*Simple operation, beautiful appearance, small volume and light weight.


Specification

Chamber

The chamber is made of aluminum alloy, which is corrosion resistant and has a firm structure;

Vacuum degree

The vacuum degree can be adjusted up to -95Kpa (the buyer shall provide the vacuum pump);

Head temperature

Room temperature250, temperature adjustable;

Temperature control accuracy

±2;

Heat sealing pressure

07Kg/cm2 adjustable;

Heat sealing time

099 seconds adjustable;

Edge sealing width

5±0.4mm (can be customized)

Maximum edge sealing length

200mm

(can be customized, such as 300/400/500mm sealing length)

Seal thickness range

60~300um

Seal thickness accuracy (mm)

Sealing thickness difference between any two points<15um

Air consumption

About 0.2L compressed gas per seal once.

Working speed of air compressor

180 times/h

power

Using 300w heating tube, the power consumption when heating is about 0.6KW.

Power Supply

220V/50Hz;

Compressed air source

0.50.8Mpa; When used in the glove box, the cylinder power source must use the same working gas used in the glove box;

Working chamber

470mm*485mm*435mm;

Control box

420mm*325mm*225mm

Equipment weight

About 50Kg

vacuum sealing machine


pouch cell machine

vacuum sealer

battery vacuum sealer

vacuum sealing machine

pouch cell assembly machine



 battery equipment


1.  We supply machines with battery technology support.

2.  We supply full set of lithium battery equipment for lab research, pilot scale research and production line.



1 Standard exported package : Internal anticollision protection, external export wooden box package
2 Shipping by express, by air, by sea according to customer's requirements to suggest the most suitable shipping mode
3 Responsible for the damage during shipping process, change the damage part for free
4 Supply with suitable voltage input and power plug according to customer's country requirements.
5 Supply with CO, ECO, FORM A, FORM E and any other original certificate for import custom clearance and tax relief.
