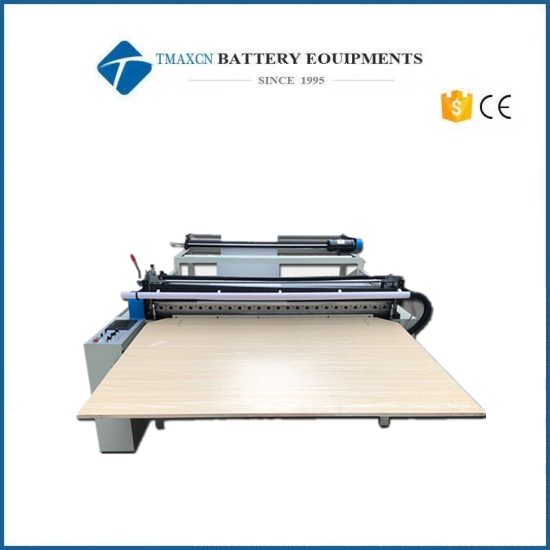

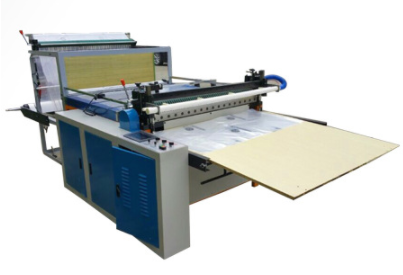

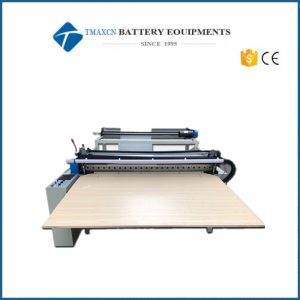

1-1580mm Width High Precision Cutter Cutting Machine For Film/Fabrics/Cloth/Paper
Model Number:
TMAX-HZX-800GHType:
AutomaticDimension(L*W*H):
3300*1500*1180mmNet Weight:
800KGCompliance:
CE certificateWarranty:
One Year limited warranty with lifetime supportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 days
1-1580mm Width High Precision Cutter Cutting Machine For Film/Fabrics/Cloth/Paper
Feature
This machine is mainly for the tape rolls were positioned quantitative fixed-length cut, the device uses high-precision stepper motor drive, PLC microcomputer control.
Suitable materials: all kinds of pet protective film, reflective film, OPP film, PVC film, PE film, plastic film, heat shrinkable film, hot melt adhesive film, heat transfer film, e ∨ a foam, all kinds of non-woven fabrics, flocking cloth, knitted cloth, gauze, dust-free cloth, Pu artificial leather, various insulation paper, release paper, self-adhesive paper, highland barley paper, Meiwen paper, various copper foil, aluminum foil and other coil micro materials.
Specification
Model |
Cutting Tool |
Speed (mm) |
Weight(kg) |
Cutting Width (mm) |
Cutting Length (mm) |
Precision (mm) |
Cutting Thickness(mm) |
HZX-800 |
Upper and lower knives |
5-50 |
800 |
1-780 |
5-50000 |
0.2 |
0.05-0.6 |
HZX-1000 |
Upper and lower knives |
5-60 |
850 |
1-980 |
5-50000 |
0.2 |
0.05-0.6 |
HZX-1200 |
Upper and lower knives |
5-70 |
1500 |
1-1180 |
5-50000 |
0.2 |
0.05-0.6 |
HZX-1400 |
Upper and lower knives |
5-80 |
2000 |
1-1380 |
5-50000 |
0.2 |
0.05-0.6 |
HZX-1600 |
Upper and lower knives |
5-90 |
2100 |
1-1580 |
5-50000 |
0.2 |
0.05-0.6 |
