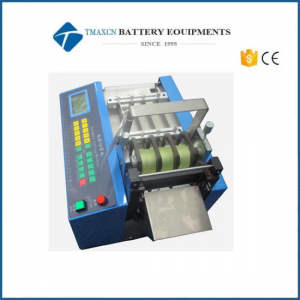

Heat Shrinking Tube Cutting Machine for Nickel Strip/ PVC Tube /Label/Cable/Film/Foil/Sleeve Cutting

  • Model Number:

    TMAX-YS-100
  • Type:

    Automatic
  • Input Power:

    200W
  • Dimension(L*W*H):

    360*300*350mm
  • Compliance:

    CE certificate
  • Warranty:

    Two Year limited warranty with lifetime support
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    10-15 days
contact now
DESCRIPTION

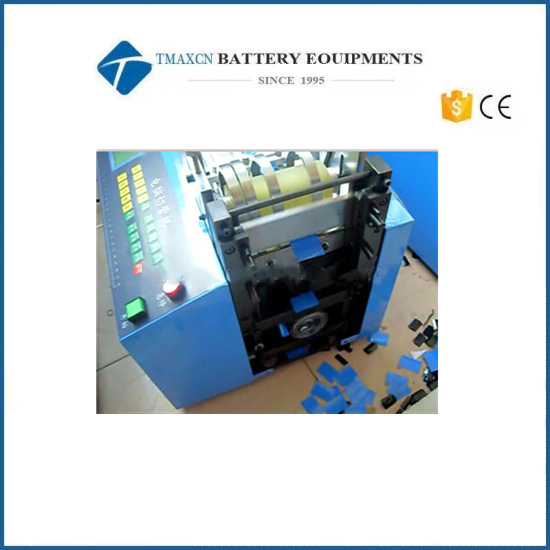

 Heat Shrinking Tube Cutting Machine for Nickel Strip/ PVC Tube /Label/Cable/Film/Foil/Sleeve Cutting


Video Links:

https://www.youtube.com/watch?v=nR3N9vFW-qo&feature=youtu.be

https://www.youtube.com/watch?v=qSlbuoaoqT8&feature=youtu.be

https://www.youtube.com/watch?v=PW7uhfV5Svw





Features

Model: YS-100

1.High speed: It can cut 100~120 cut per minute. (50mm long)

2.High accuracy: Cut-length is accurate, cut length can be set between 0.1-9999.9mm.

3.Cutting type: For cold cut and Optional hot cut. Hot cut suitable for materials that needs hot sealing, such as Nylon webbing, polyester webbing, etc.

4.Automatic operation: It works automatically only by setting length and quantity. Save labor, high efficiency.

5.Automatic stopper: It stops automatically if materials run out during operation

6.Memory: Set-length, set-q'ty & set-speed are not erased even if power off & on

7.Application:The cutting machine is suitable for cutting tubes, cable, webbing/ribbon/belt, small wire, sheet and film, etc.

8.High speed, high accuracy, designed for cutting non-adhesive materials.



 Customization: cutting width from 100mm-1600mm.



Application

The cutting machine is suitable for cutting tube, ribbon/webbing/belt, cable/wire, sheet, film etc.

Tube: PVC tube, heat shrink tube, PVC heat shrinking tube, fiberglass tube, corrugated tube, etc.

Cable: Flat cable, copper wire, etc

Tape: nickel strap, hook and loop, cotton tape, elastic band, plastic tape, zipper, conductive tape,foam, etc

Sheet: battory separator, Nickel sheet, diffusersheet, plastic/rubber sheet, pvc sheet,etc

Film: plastic film, reflecting film, double-sided tape, Malar film, insulation paper, PE, Copper/Aluminum foil, release paper,etc




Specification

Model

Nickel Cutting Machine  YS-100

Source voltage

AC 220V/110V, 50/60HZ, Customized

Power

200W

Warranty

One year limited warranty with lifetime support

Advantages

1. In automatic stop without materials, unattended

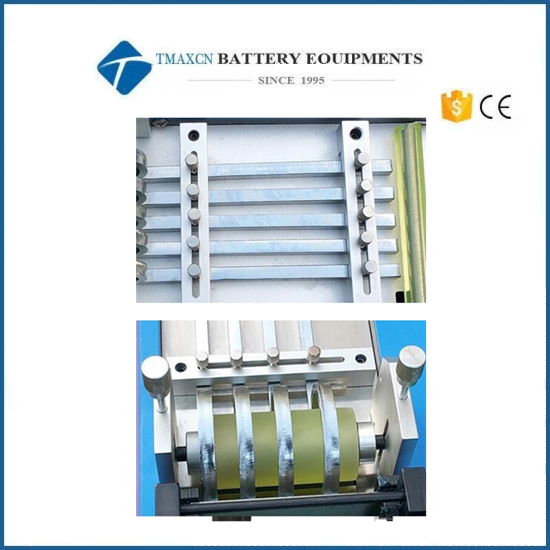

2. With a knife or blade adjustment conveniently

3. Automatic grouping and total cumulative count

4. Suitable for all kinds of metal and no-metal strip materials, such as  copper foil,

aluminum foil, copper foil tape, batteries nickel belt and so on

Cutting speed

0-130times/min

Cutting length

0.1mm-9999.9mm

Cutting width

0.1-100mm, according to model customer choose

Dimension(L*W*H)

360*300*350mm

Weight

About 30kg





















 battery equipment


1.  We supply machines with battery technology support.

2.  We supply full set of lithium battery equipment for lab research, pilot scale research and production line.



1 Standard exported package : Internal anticollision protection, external export wooden box package
2 Shipping by express, by air, by sea according to customer's requirements to suggest the most suitable shipping mode
3 Responsible for the damage during shipping process, change the damage part for free
4 Supply with suitable voltage input and power plug according to customer's country requirements.
5 Supply with CO, ECO, FORM A, FORM E and any other original certificate for import custom clearance and tax relief.
