All Kinds of Lithium Battery Charging Discharging Tester with Laptop Software

  • Model Number:

    TMAX-AG
  • Type:

    Automatic
  • Compliance:

    CE certificate
  • Warranty:

    1 Year with lifetime support
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    15 days
contact now
DESCRIPTION

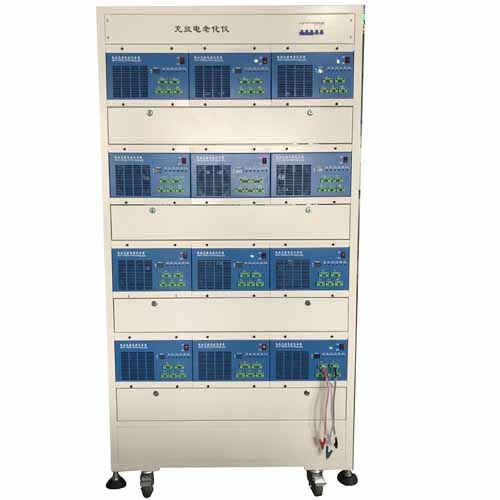

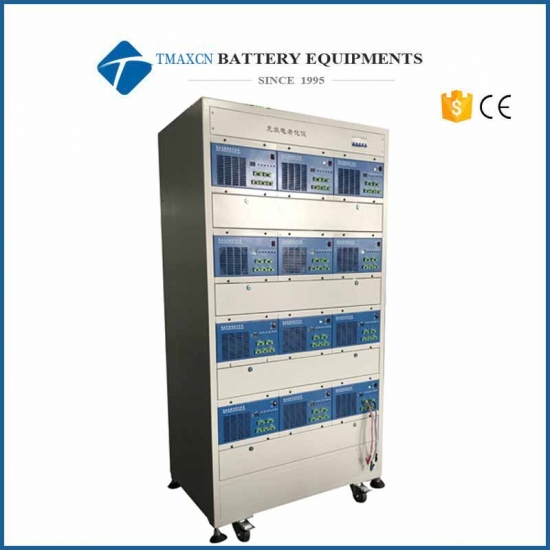

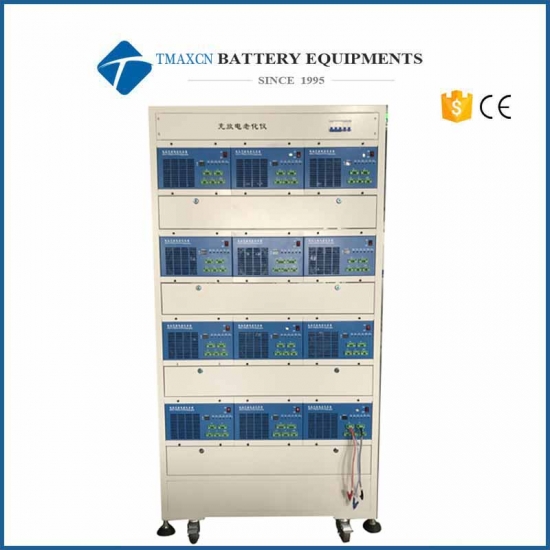

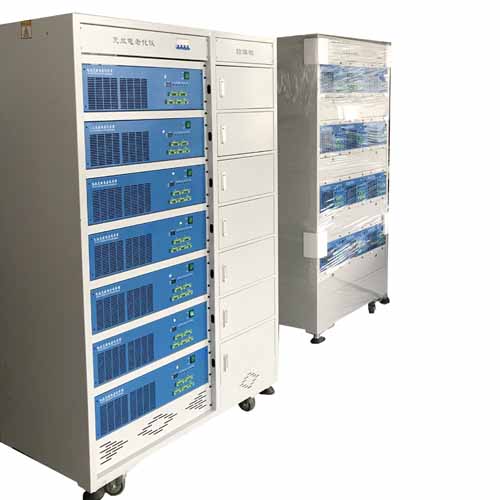

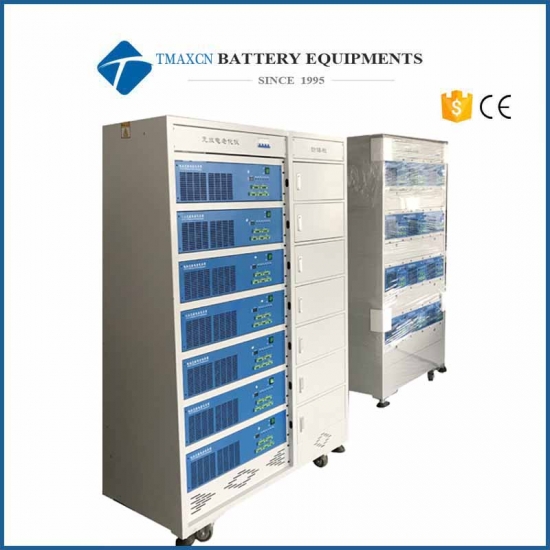

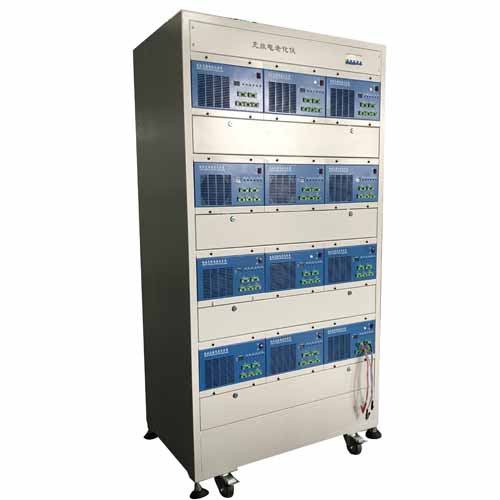

All Kinds of Lithium Battery Charging Discharging Tester with Laptop Software

Features

The aging cabinet is mainly used for testing the charging and discharging cycle of finished lithium batteries. The testing items include: battery charging protection voltage, discharging protection voltage, capacity, etc. The equipment has charging, discharging, shelving, and cycling four testing steps. The battery can be tested according to the set process by editing the corresponding steps.


Specifications

Technical Parameter



Input Power Supply

Measuring Range

0-30V/0-70V/0-100V

Accuracy

±(0.2% of reading +0.2% of range)





Current

Charging Range

0-10A/0-5A/0-10A

Charging Accuracy

±(0.2% of reading +0.2% of range)

Discharge Range

0-20A/0-10A/0-5A

Discharge Accuracy

±(0.2% of reading +0.2% of range)

Charge

Constant Voltage Cut-off Current

Minimum 50mA

Capacity

Accuracy

±1%

Power

Discharge Power

≤1400W

Time

Inspection Time

Real-time Collection<2S

Timing Range

0-999h/step

Data Recording Interval

≥5S

Middle Machine Version

1:1 series

Number of Passages Per Cabinet

Seven channels, seven rows and one column



Charge

Charging Mode

Constant Current and Constant Voltage Charging

Cut-off condition

Voltage, Current, Relative Time, Overcharge Protection

Discharge

Discharge mode

Constant current discharge



Cut-off condition

Voltage, Relative Time and Over-discharge Protection

Loop

Cyclic measurement range

1-999 times

Single cycle step number

100

Voltage and Current Detection Sampling

Four-wire sampling

Data Base

Using SQL database to manage test data

Upper computer communication mode

Based on TCP/IP Protocol/Serial Port

Data Output Mode

EXCEL/TXT/Chart

Communication Interface

Mesh port

Chassis dimensions

450x450x170mm

Cabinet size

980x600x1820mm

Spatial Dimension of Discharge Battery

370x550x190mm





















 battery equipment


1.  We supply machines with battery technology support.

2.  We supply full set of lithium battery equipment for lab research, pilot scale research and production line.



1 Standard exported package : Internal anticollision protection, external export wooden box package
2 Shipping by express, by air, by sea according to customer's requirements to suggest the most suitable shipping mode
3 Responsible for the damage during shipping process, change the damage part for free
4 Supply with suitable voltage input and power plug according to customer's country requirements.
5 Supply with CO, ECO, FORM A, FORM E and any other original certificate for import custom clearance and tax relief.
