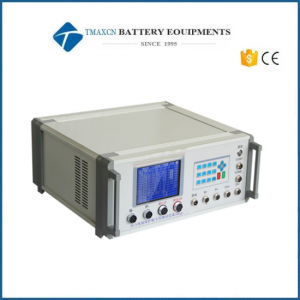

1-24 Series Protective Plate BMS Tester for Lithium Battery Pack
Model Number:
TMAX-BMSType:
AutomaticDimension(L*W*H):
420*430*220mmNet Weight:
16kgCompliance:
CE certificateWarranty:
1 Year with lifetime supportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 days

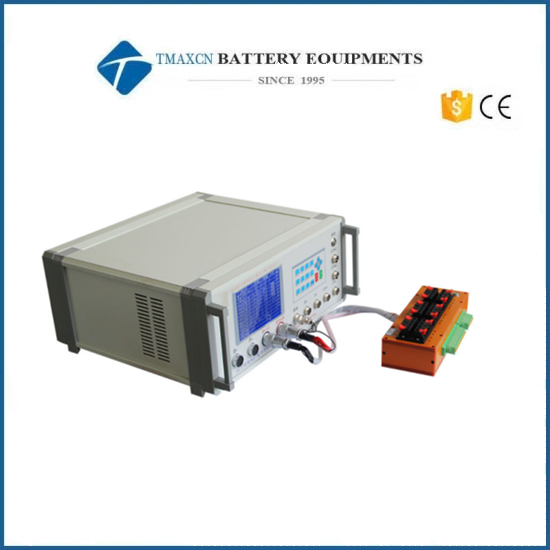

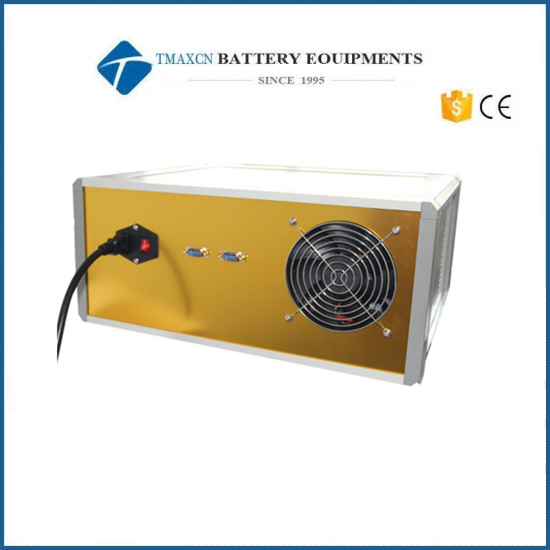

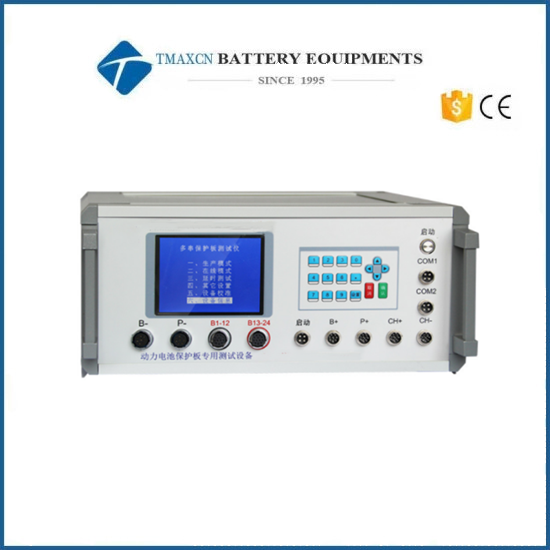

1-24 Series Protective Plate BMS Tester for Lithium Battery Pack
Features
This machine is designed for test protecting voltage of over charge, recovery voltage of over charge, protecting voltage of over discharge, recovery voltage of over discharge, protecting current of over current, delayed performance of over current protecting total current self consumption 1~24 series power battery protection board tester.
Specifications
|
Parameter |
Test Range |
Accuracy |
|
Number of Testing Series |
1-24 series optional |
|
|
Voltage Reference |
Ternary Battery:3.8V Lithium Battery: 3V |
|
|
Overcharge/Overdischarge Protection Voltage |
0.5-5V |
±5mV |
|
Overcharge/Overdischarge Voltage |
0.5-5V |
±5mV |
|
Overcharge Protection Current |
0-50A |
±0.1A |
|
Over-discharge Protection Current |
0-120A |
±0.1A |
|
Equilibrium Open Voltage |
0.5-5V |
±5mV |
|
Equilibrium Real-time Current |
0-200mA |
±1mA |
|
Overcurrent Protection Delay |
0-15S |
±1mS |
|
Overcharge/Overdischarge Protection Delay |
0-20S |
±1mS |
|
Single-section Self-consuming Power |
0-500uA |
±1uA |
|
Internal Loop Resistance |
0-500mΩ |
±1mΩ |
|
Short Circuit Protection (more than 6 series) |
0-9999us |
±1us |
|
Supply Voltage |
220VAC |
|
|
Maximum Power |
600W |
|
|
Current Level |
60-120A |
|
|
Machine Size |
420*430*220mm |
|
|
Net weight |
16kg |
|
