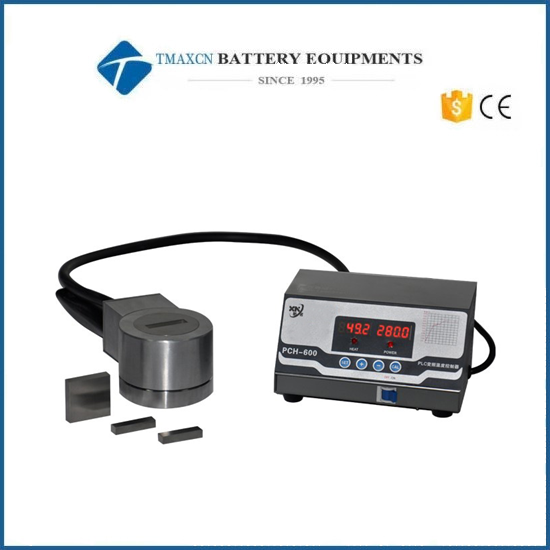

300℃ Rectangular Electric Heating Mold With Temperature Controller

Model Number:
TMAX-REHM
Compliance:
CE certificate
Payment:
T/T, Credit Card, Paypal, LC, Western Union
Delivery Time:
3 days

contact now

Email : David@battery-equipments.com
Wechat : Wechat 13506084915

DESCRIPTION

300℃ Rectangular Electric Heating Mold With Temperature Controller

Rectangular electric heating mold is a kind of heating mold developed on the basis of ordinary square mold that can heat and press mold samples through intelligent temperature controller to control temperature. This type of mold can be used to press powder or granular samples into rectangles, strips, squares, triangles and other shapes through a press. The specific mold size and shape can be customized according to customer needs. Suitable for rubber, plastics, leather, chemicals, paints, electronic appliances, textiles, hardware and other major fields. It is a qualitative supporting equipment for the engineering and technical personnel of various universities, colleges and research institutes to carry out spectral detection and analysis.

Standard configuration: usually 1 set of rectangular electric heating mold + 1 set of high temperature insulation board + 1 temperature controller. Tablet press and water cooler are optional. If the mold needs to be cooled quickly after heating, it is recommended to configure a water cooler. If you need to purchase a tablet press separately, it is recommended to directly purchase our RYJ-600 series electric heating tablet press, so that users can operate and experiment more conveniently.

Technical Parameter

Name	Cylindrical electric heating mold
Actual drawing of molding sample




Compressible sample shape	Rectangle, long strip, square, triangle, etc., other shapes are customized
Mold heating temperature	RT-300℃(500℃ high temperature mold can be customized)
Thermostat type	PLC program digital temperature controller, room temperature -600.0℃, accuracy 0.1℃
Power	220V/300W
Common mold specifications	Usually within 3-40mm, length and width are customized
Mold material	Alloy tool steel: Cr12MoV (can be customized hard alloy steel)
Hardness of die indenter	HRC60-HRC62
Mold cavity depth	45mm
Mould dimensions	Ф90×138mm
Mould weight	3.2kg
Standard configuration	1 set of electric heating mold + 1 set of heat insulation board + 1 set of smart thermostat (tablet press and water cooler are optional)
Calculation formula of die pressure	Area of oil cylinder/area of mould×reading of pressure gauge = actual pressure of mould. Do not overpressure!
Mould remarks	Non standard customization, the above indicators are only for reference, can be customized according to customer needs of various specifications, materials, shapes of the mold

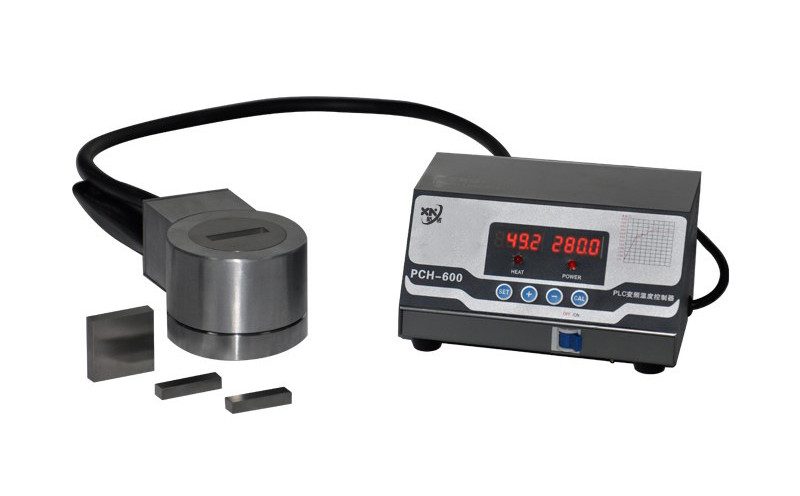

Cylindrical electric heating mold
