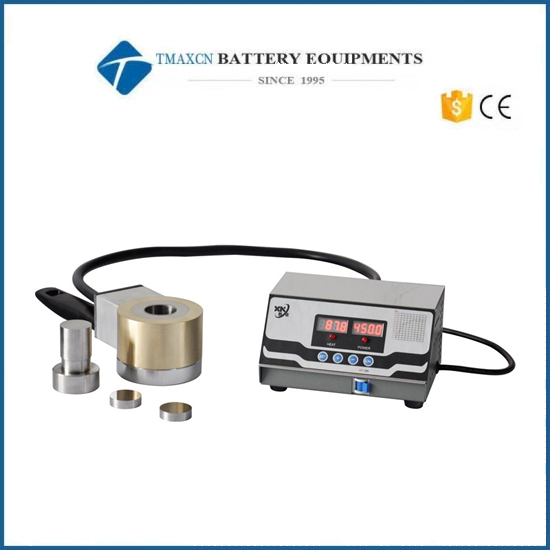

500℃ Cylindrical Electric Heating Mold With Temperature Controller

  • Model Number:

    TMAX-CEHM
  • Compliance:

    CE certificate
  • Payment:

    T/T, Credit Card, Paypal, LC, Western Union
  • Delivery Time:

    3 days
contact now
DESCRIPTION

500℃ Cylindrical Electric Heating Mold With Temperature Controller


Cylindrical electric heating mold is a kind of heating mold developed on the basis of ordinary cylindrical mold that can heat and press mold samples through intelligent temperature controller to control temperature. This type of mold can be used to press powder or granular samples into cylindrical flakes or cylinders, etc. The specific mold size and shape can be customized according to customer needs. Suitable for rubber, plastics, leather, chemicals, paints, electronic appliances, textiles, hardware and other major fields. It is a qualitative supporting equipment for the engineering and technical personnel of various universities, colleges and research institutes to carry out spectral detection and analysis.


Standard configuration: usually 1 set of electric heating mold + 1 set of high temperature insulation board + 1 temperature controller. Tablet press and water cooler are optional. If the mold needs to be cooled quickly after heating, it is recommended to configure a water cooler. If you need to purchase a tablet press separately, it is recommended to purchase our electric heating tablet press directly, so that users can operate and experiment more conveniently.


Technical Parameter

Name

Cylindrical electric heating mold

Actual drawing of molding sample

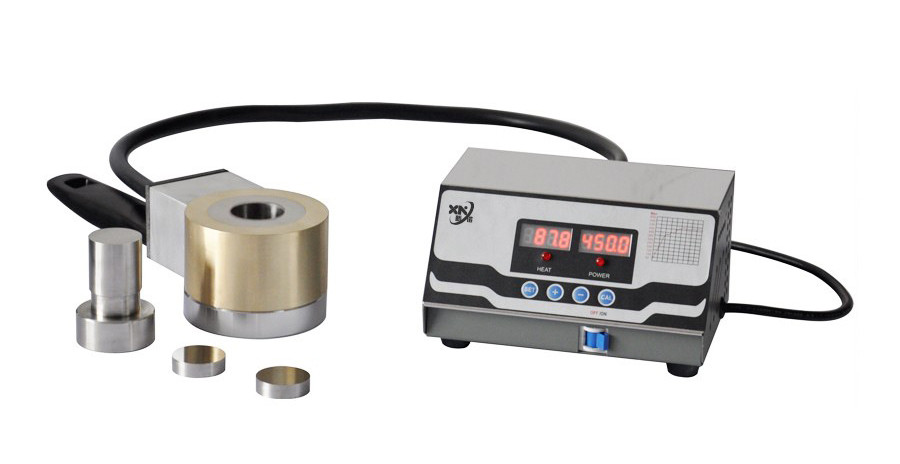

Cylindrical Electric Heating Mold


Mold heating temperature

RT-500℃

Power

220V/500W

Common mold specifications

Ф10, Ф12, Ф13, Ф15, Ф18, Ф20, Ф25, Ф30, etc., mold size customization

Mold material

Alloy tool steel: Cr12MoV (can be customized hard alloy steel)

Hardness of die indenter

HRC60-HRC62

Mold cavity depth

45mm

Mould dimensions

Ф78×138mm、Ф90×138mm

Mould weight

2.7kg

Standard configuration

1 set of electric heating mold + 1 set of heat insulation board + 1 set of smart thermostat (tablet press and water cooler are optional)

Calculation formula of die pressure

Area of oil cylinder/area of mould×reading of pressure gauge = actual pressure of mould. Do not overpressure!

Mould remarks

Non standard customization, the above indicators are only for reference, can be customized according to customer needs of various specifications, materials, shapes of the mold

Cylindrical Electric Heating Mold
