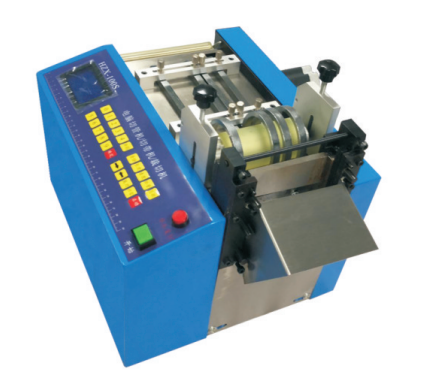

0.1-100mm Width Cutter Cutting Machine For Tube/PVC/Rubber/Nylon/PE
Model Number:
TMAX-HZX-100Type:
AutomaticInput Power:
0.2kwDimension(L*W*H):
360*300*350mmNet Weight:
30KGCompliance:
CE certificateWarranty:
One Year limited warranty with lifetime supportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 days
0.1-100mm Width Cutter Cutting Machine For Tube/PVC/Rubber/Nylon/PE
Features
Cutting speed:80 times per minute (50mm length,for example)
Suitable materials: heat shrinkable sleeve, glass fiber tube, Teflon sleeve, yellow wax tube, nickel belt, etc.
silicone tube, PVC hose, rubber tube, plastic hose, nylon tube, PE pipe, water purification pipe, latex tube, transparent rubber tube, optical fiber, etc.
wire rope, alloy nickel sheet, nickel strip, wire, cable, copper sheet, stainless steel wire, etc.
Cutting Material
Specification
|
Model |
Cutting Machine |
|
Source voltage |
AC 220V/110V, 50/60HZ, Customized |
|
Power |
200W |
|
Warranty |
One year limited warranty with lifetime support |
|
Advantages |

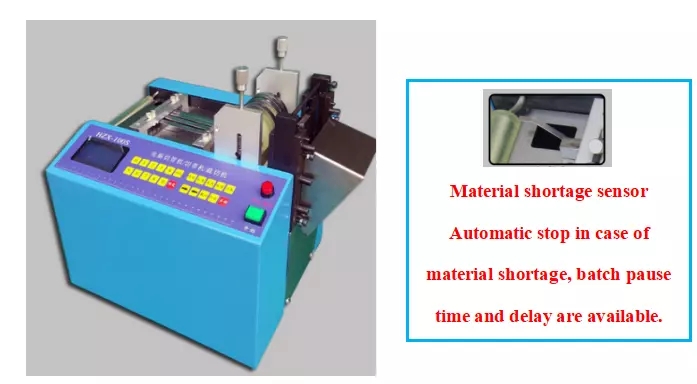

1 In automatic stop without materials, unattended 2 With a knife or blade adjustment conveniently 3 Automatic grouping and total cumulative count 4 Suitable for all kinds of metal and no-metal strip materials, such as copper foil, aluminum foil, copper foil tape, batteries nickel belt and so on |
|
Cutting speed |
0-130times/min |
|
Cutting length |
0.1mm-10m |
|
Cutting width |
0.1-100mm,( cutting width can be customized according to request) |
|
Dimension(L*W*H) |
360*300*350mm |
|
Weight |
About 30kg |
